Agenda: Training session 1

• Understanding planning problems
• Quick start: Cloud Balancing
• N queens
• Exhaustive Search

Understanding
planning problems

Lab 0: Exercises on paper

Is manually planning difficult?

Lab0: N Queens

• Place n queens on a n sizes chessboard
• No 2 queens can attack each other

Bad

Good

• Assignment: Solve 8 queens
• Optional 1: Solve 9 queens too
• Optional 2: Solve 8 queens and maximize number of queens that can attack each other as knight

Lab0: TSP Lab

• Connect all 68 dots with 1 tour.
• Circle back to the origin.
• Try to find the shortest tour
• Check the score of your tour:
  • Run OptaPlannerExamplesApp
  • Button Traveling Salesman
  • Button Import, directory tutorial, file st68.tsp
  • Right click on your each location in your tour in order
  • (Don't left click, that adds a location.)
  • To restart, just import the file again.

What is business resource optimization?

TSP demo

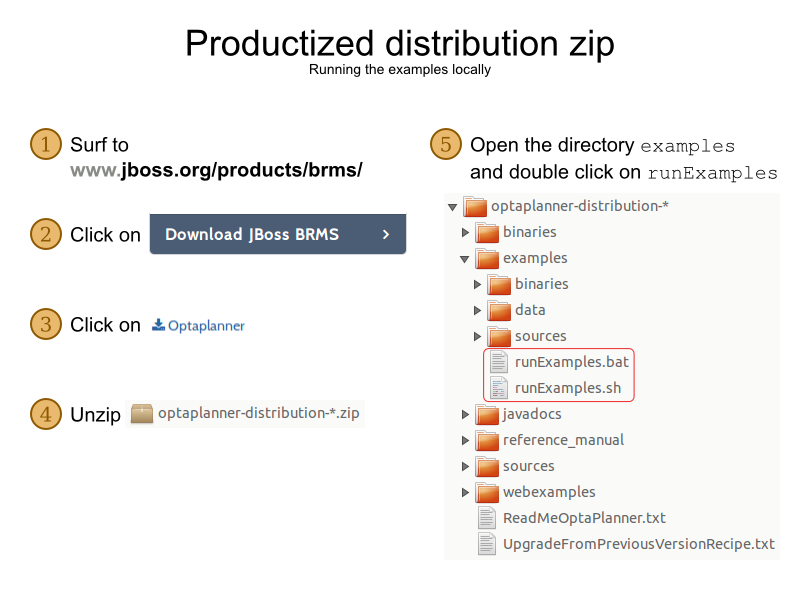

Lab: Open the latest Final documentation

• Go to optaplanner.org and click on the big blue button.

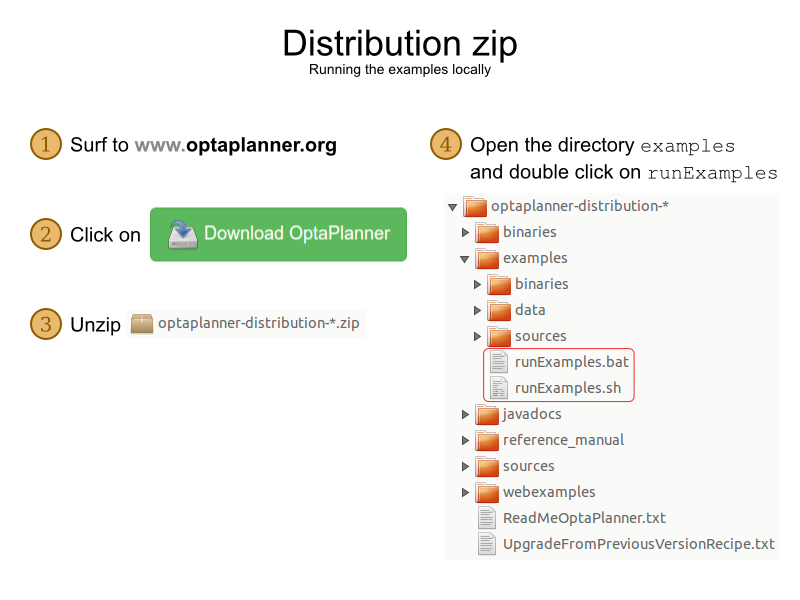

Lab: Run the examples in an IDE

• See docs section 1.5.2. Run the examples in an IDE (IntelliJ, Eclipse, NetBeans)
• Optional: build it from source (docs 1.5.4. Build OptaPlanner from source).
• Run the N Queens example in your IDE.

Planning problem use cases

• Agenda scheduling: doctor appointments, court hearings,
  maintenance jobs, TV advertisements, ...
• Educational timetabling: lectures, exams, conference presentations, ...
• Task assignment: affinity/skill matchmaking for tax audits, wage calc, ...
• Employee shift rostering: nurses, repairmen, help desk, firemen, ...
• Vehicle routing: route trucks, buses, trains, boats, airplanes, ...
• Bin packing: fill containers, trucks, ships, storage warehouses,
  cloud computers nodes, prisons, hospitals, ...
• Job shop scheduling: assembly lines for cars, furniture, books, ...
• Cutting stock: minimize waste while cutting paper, steel, carpet, ...

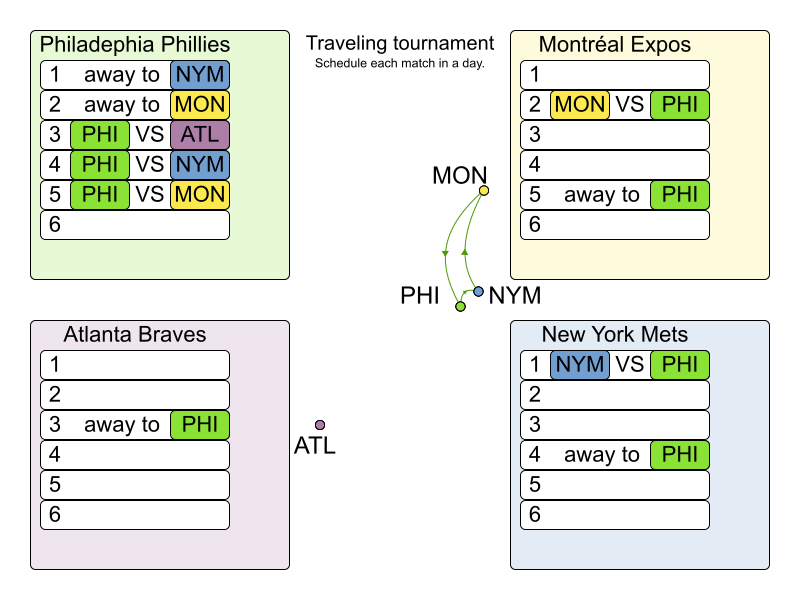

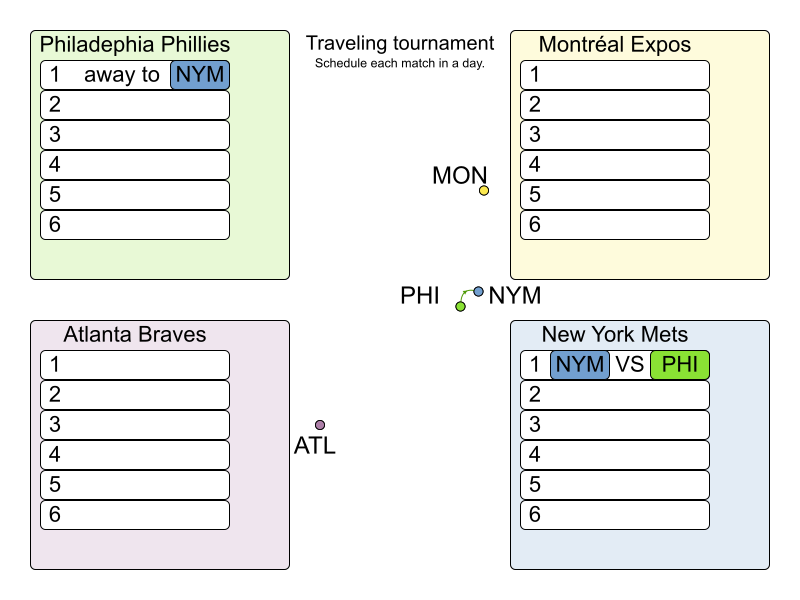

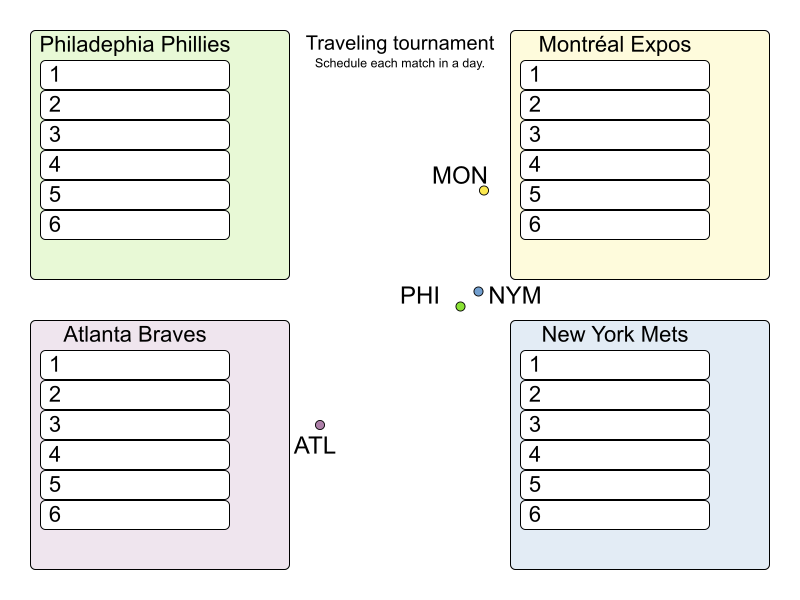

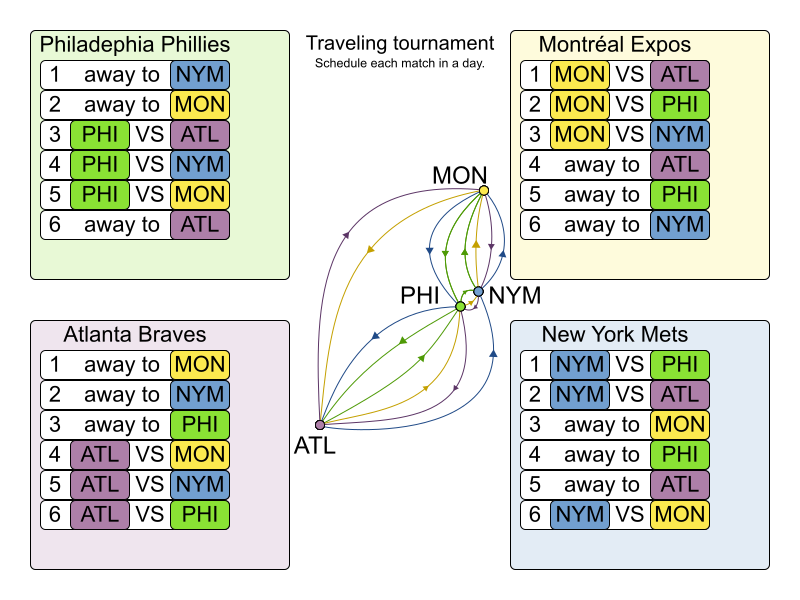

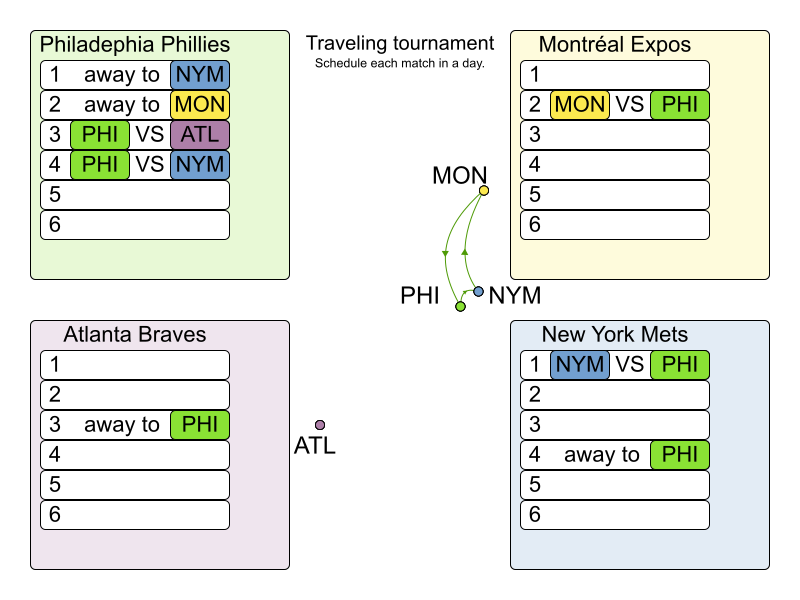

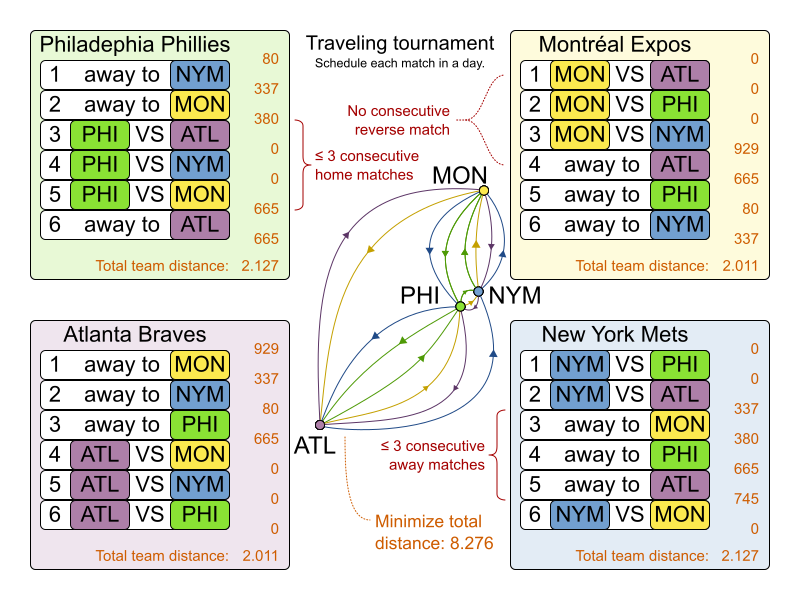

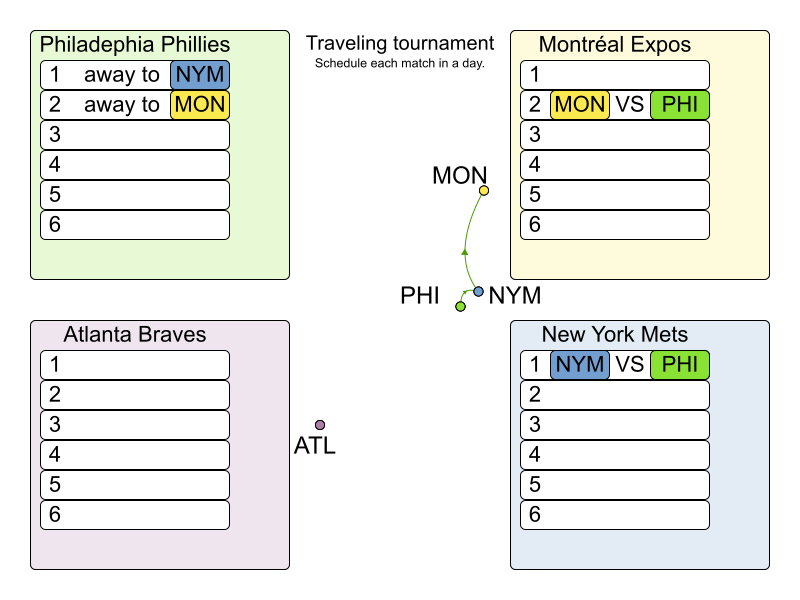

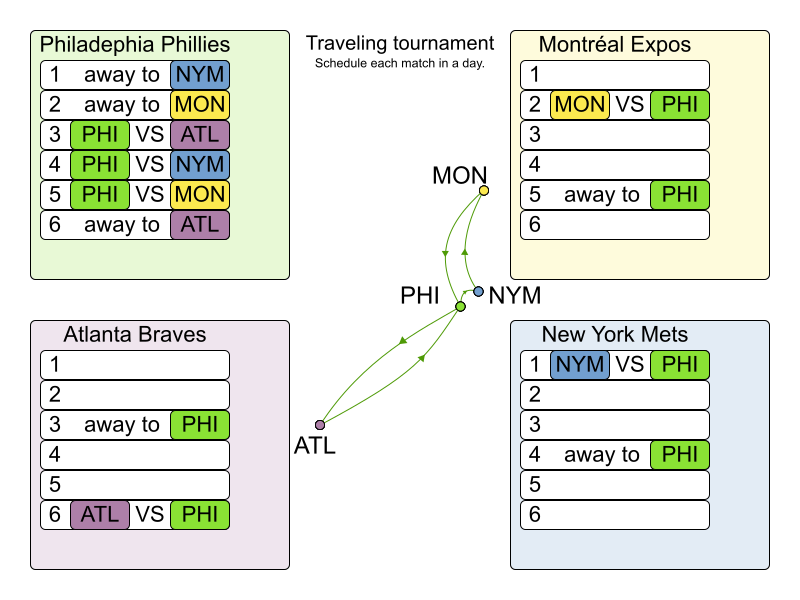

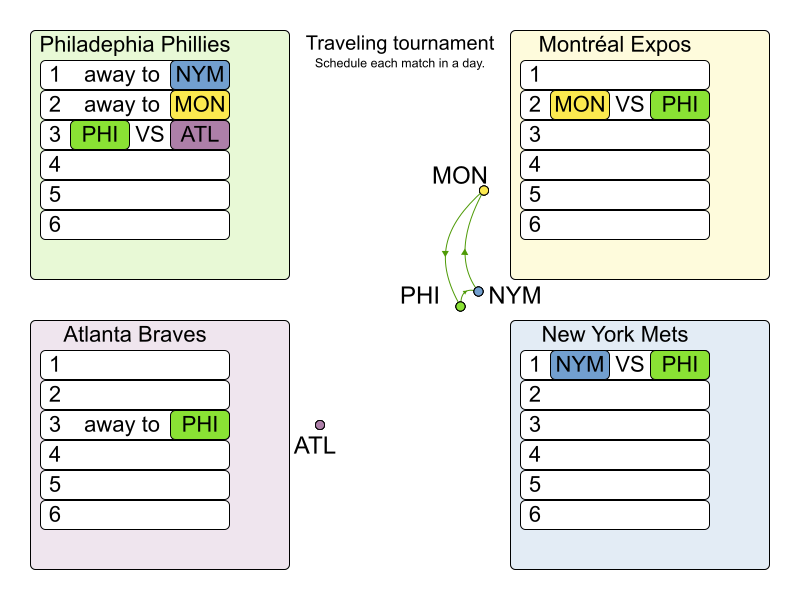

• Sport scheduling: football/baseball league, tennis court utilization, ...
• Financial optimization: investment portfolio balance, risk spreading, ...

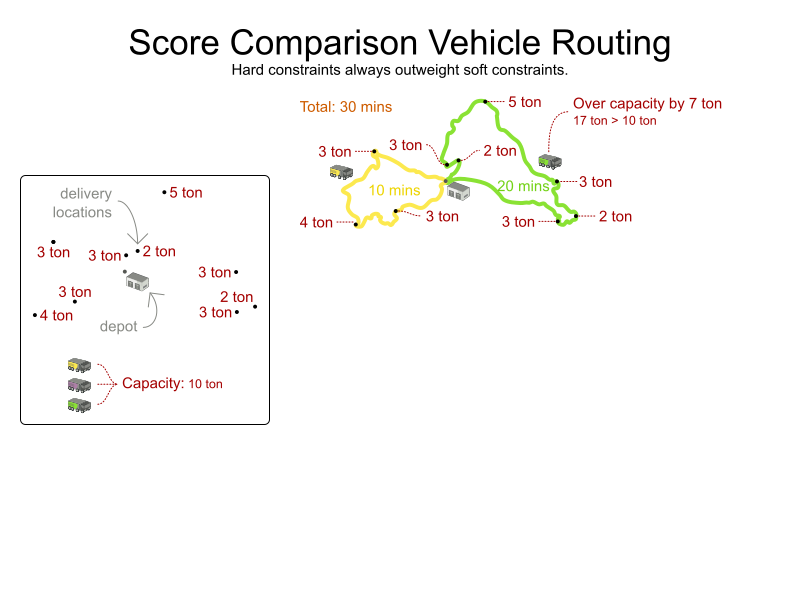

Vehicle routing

TSP
is an academic problem

What is realistic
business resource optimization?

VRP demo

Assumption: An optimal VRP route uses only 1 vehicle.

Assumption: An optimal VRP route uses only 1 vehicle. (false)

Assumption: An optimal VRP route has no crossing lines.

Assumption: An optimal VRP route has no crossing lines. (false)

Assumption: An optimal, feasible VRP route with n vehicles is still optimal for n+1 vehicles.

Assumption: An optimal, feasible VRP route with n vehicles is still optimal for n+1 vehicles. (false)

Assumption: An optimal VRP route has no crossing lines of the same color.

Assumption: An optimal VRP route has no crossing lines of the same color. (false)

Assumption: We can focus on time windows before focusing on capacity (or vice versa).

Assumption: We can focus on time windows before focusing on capacity (or vice versa). (false)

Assumption: Humans optimize VRP optimally.

Assumption: Humans optimize VRP optimally. (false)

Can a manager reasonable judge if this is optimal?

Are planning problems
difficult to solve?

What is business resource optimization?

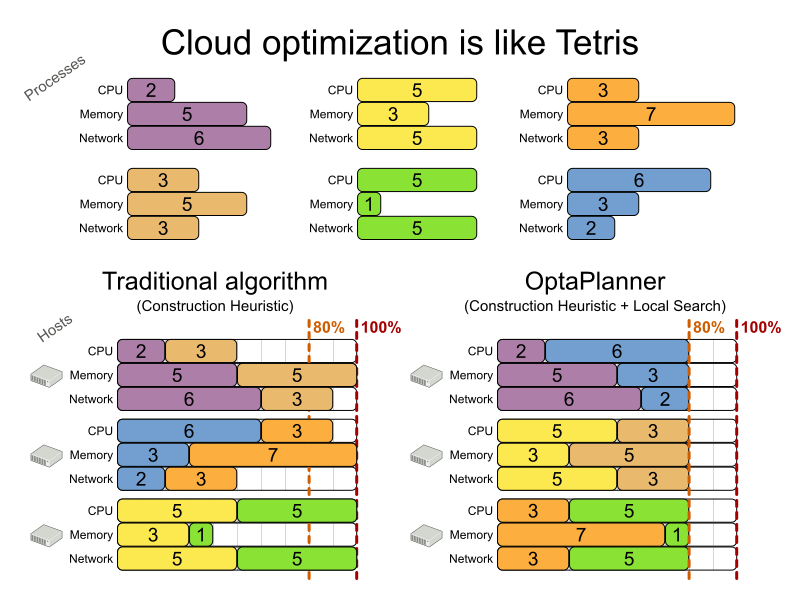

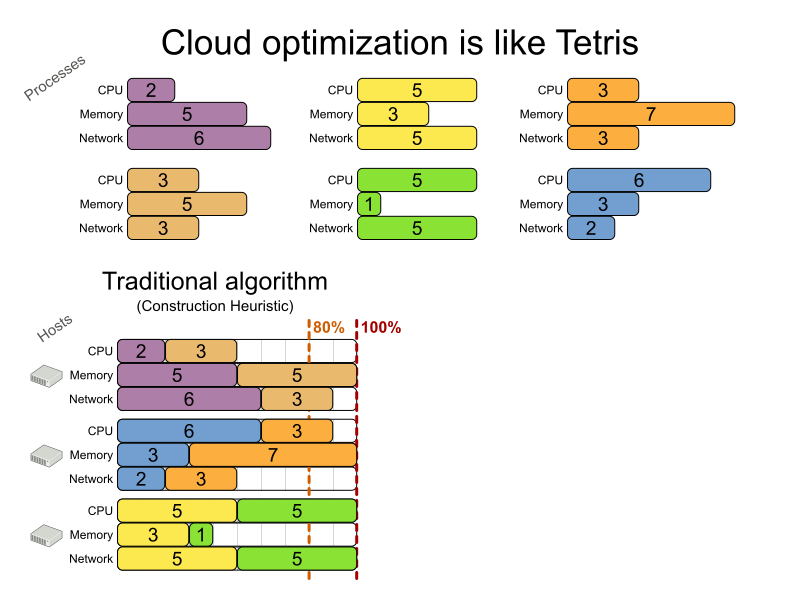

Cloud Balancing demo

Find optimal solution and scale out
for an NP-complete problem?

⇔ Is P = NP?

• Unresolved since 1971
• 1 000 000 $ reward since 2000
  • One of the 7 Millennium Problems
• Most believe P ≠ NP
  • ⇔ Impossible to find optimal solution and scale out
• 3000+ known NP-complete problems (wikipedia)

Planning problems are
difficult to solve!

And humans aren't good at it

But they don't realize it
(nor does their manager)

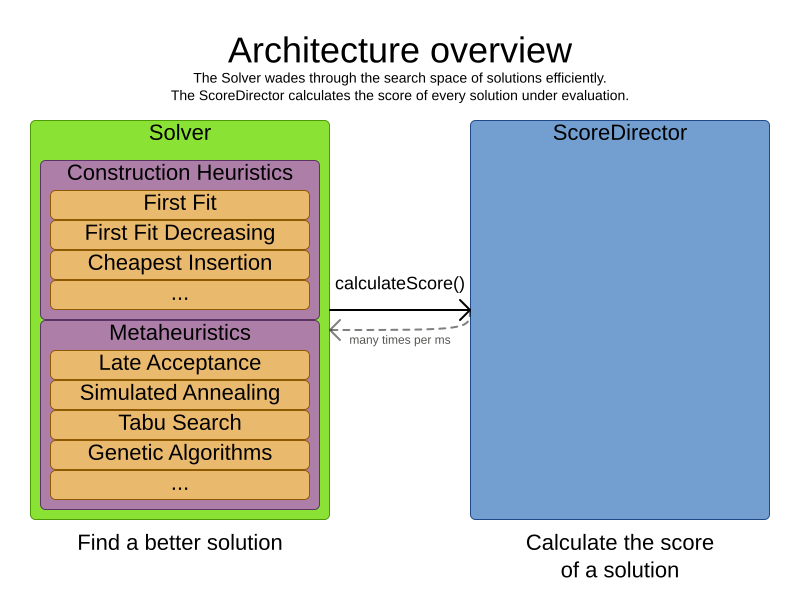

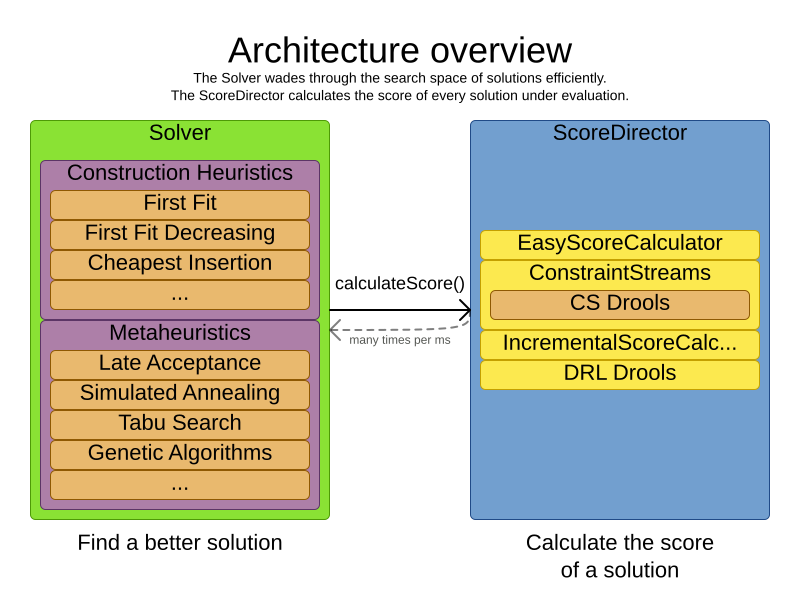

Reuse optimization algorithms

Find better solutions in time and scale out

• Open source
  Apache License
• Regular releases
  Download the zip or from Maven Central
• Documented
  Reference manual, examples, ...
• Quality coverage
  Unit, integration and stress tests

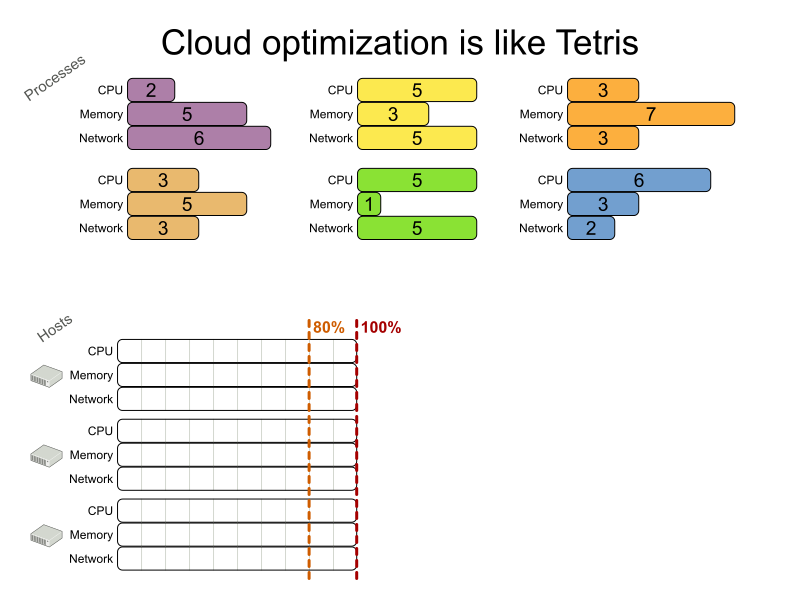

Cloud Balancing example

Domain model

Computer

public class Computer {

  private int cpuPower;
  private int memory;
  private int networkBandwidth;

  private int cost;

  // getters
}

Process is a planning entity

@PlanningEntity
public class Process {

  private int requiredCpuPower;
  private int requiredMemory;
  private int requiredNetworkBandwidth;

  // getters

  ...
}

Process has a planning variable

@PlanningEntity
public class Process {
  ...

  private Computer computer;

  @PlanningVariable(valueRangeProviderRefs = {"computerRange"})
  public Computer getComputer() {
    return computer;
  }
  public void setComputer(Computer computer) {
    this.computer = computer;
  }

}

Solution CloudBalance

@PlanningSolution
public class CloudBalance {

  private List<Computer> computerList;
  private List<Process> processList;

  @ValueRangeProvider(id = "computerRange")
  @ProblemFactCollectionProperty
  public List<Computer> getComputerList() {
    return computerList;
  }

  @PlanningEntityCollectionProperty
  public List<Process> getProcessList() {
    return processList;
  }

  ...
}

Solution CloudBalance: score

@PlanningSolution
public class CloudBalance {
  ...

  private HardSoftScore score;

  @PlanningScore
  public HardSoftScore getScore() {
    return score;
  }
  public void setScore(HardSoftScore score) {
    this.score = score;
  }

}

Cloud Balancing example

Score constraints

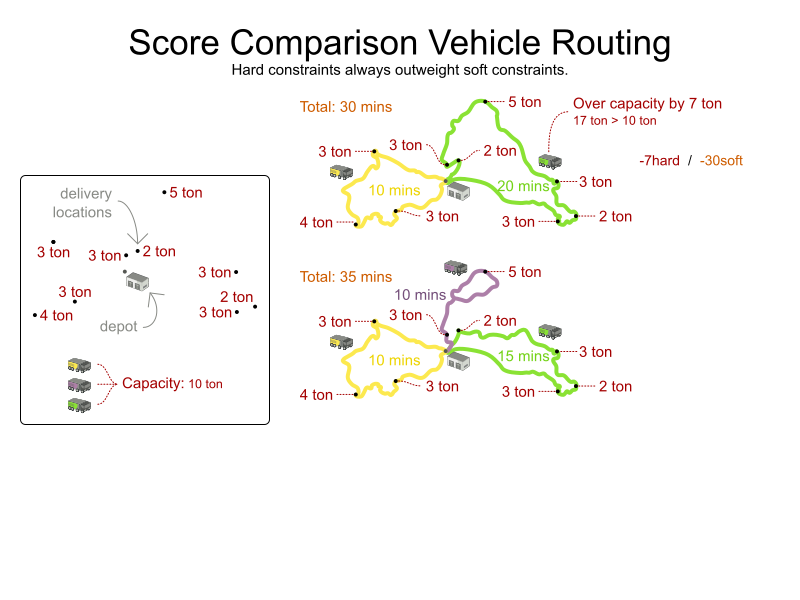

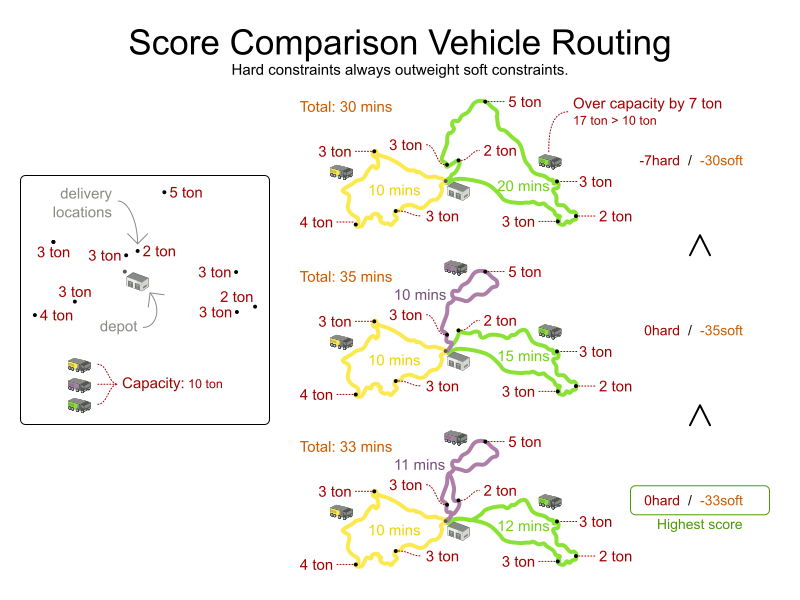

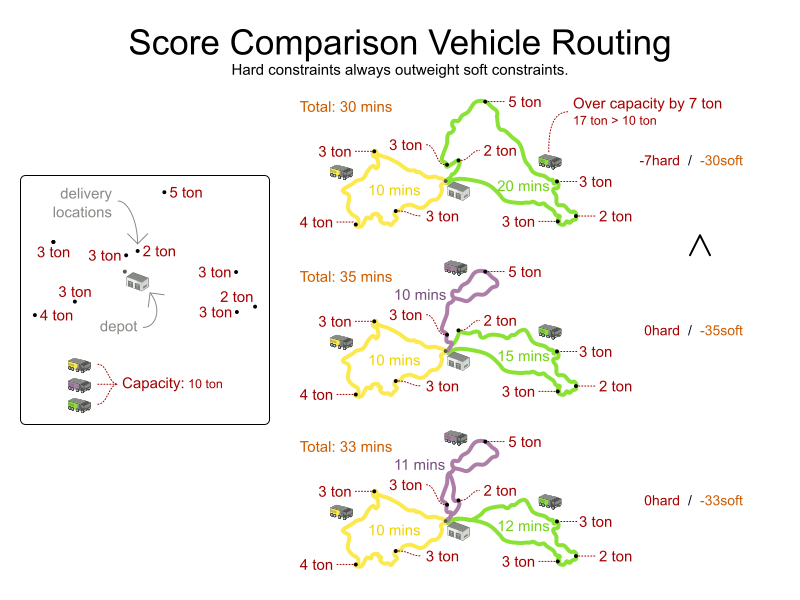

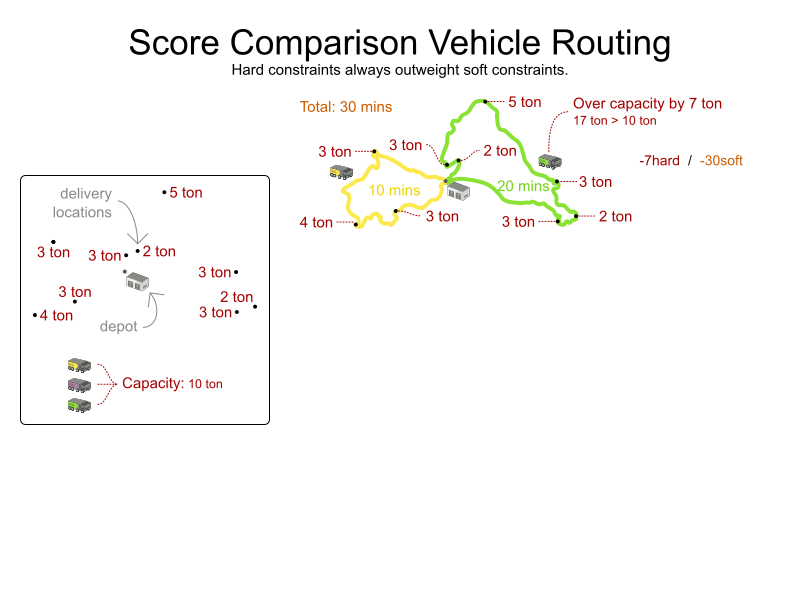

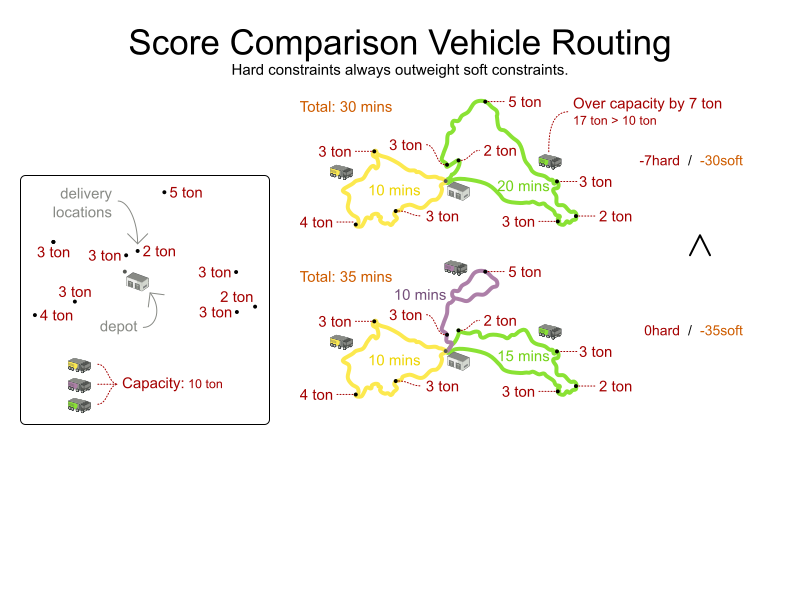

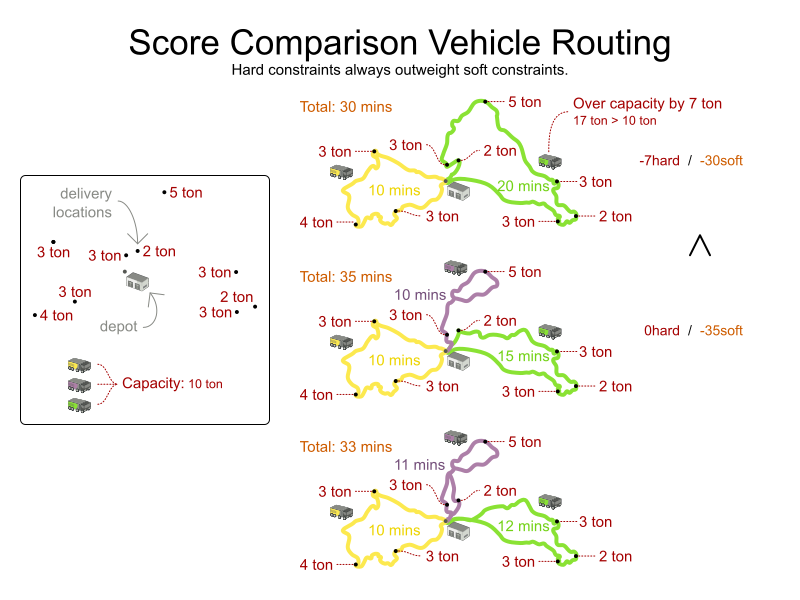

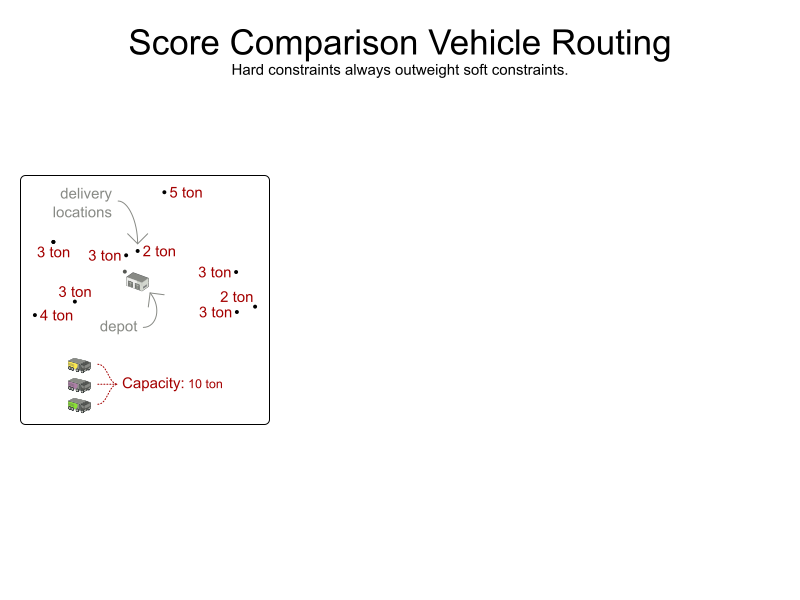

Given 2 solutions
which one is better?

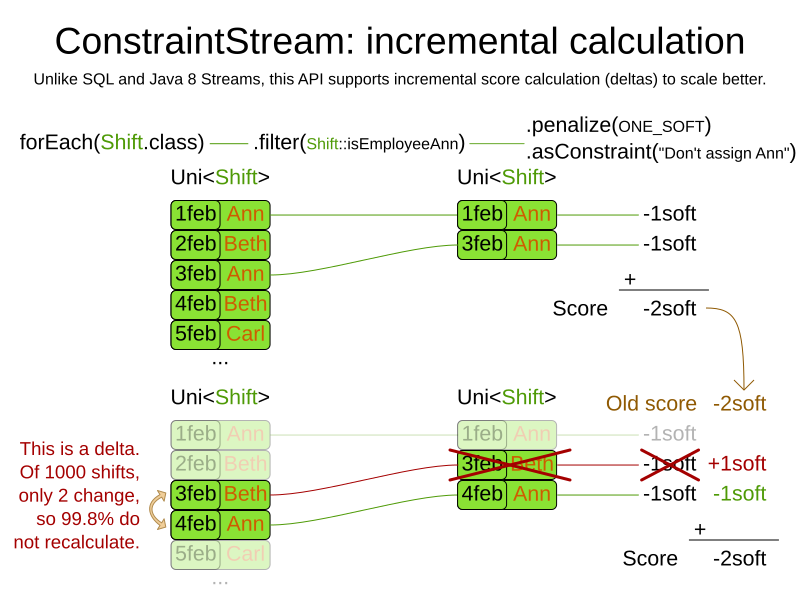

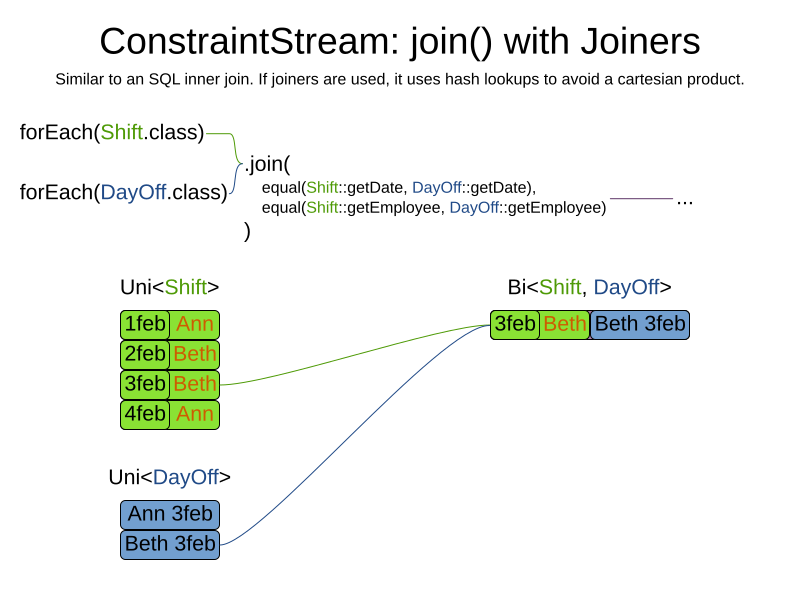

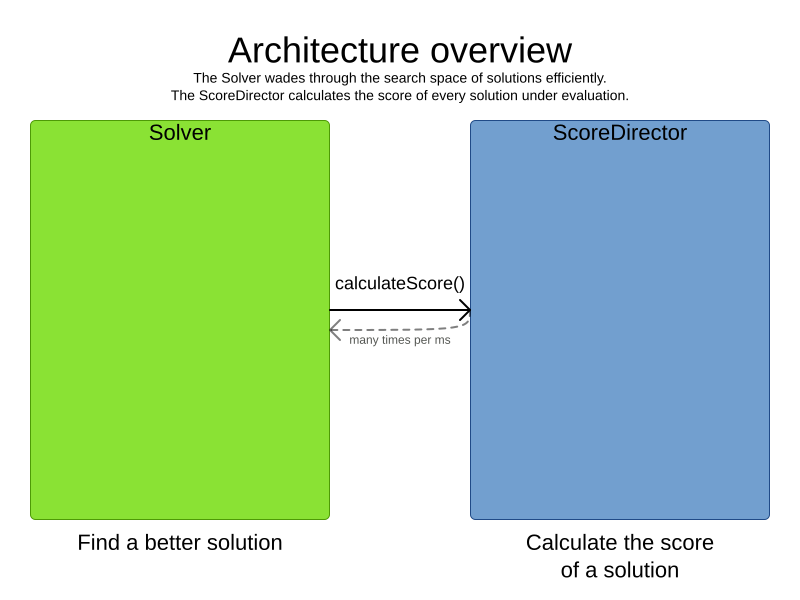

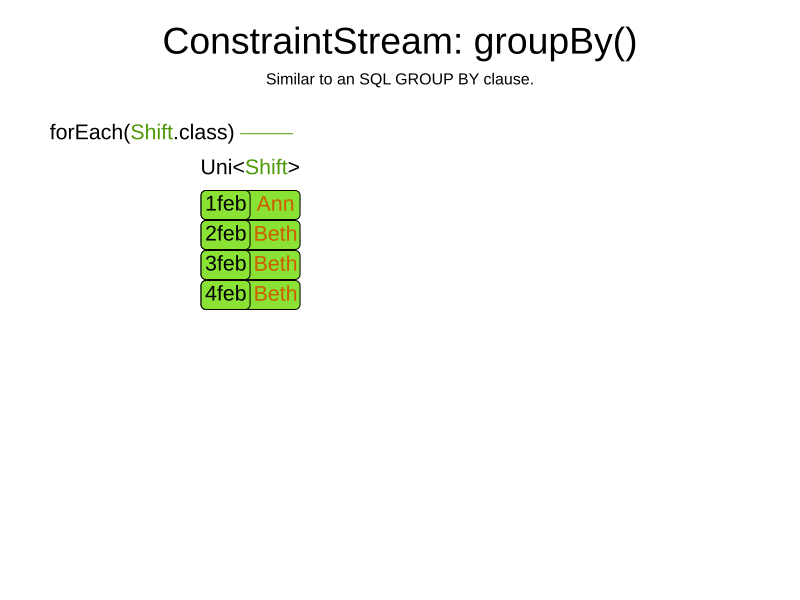

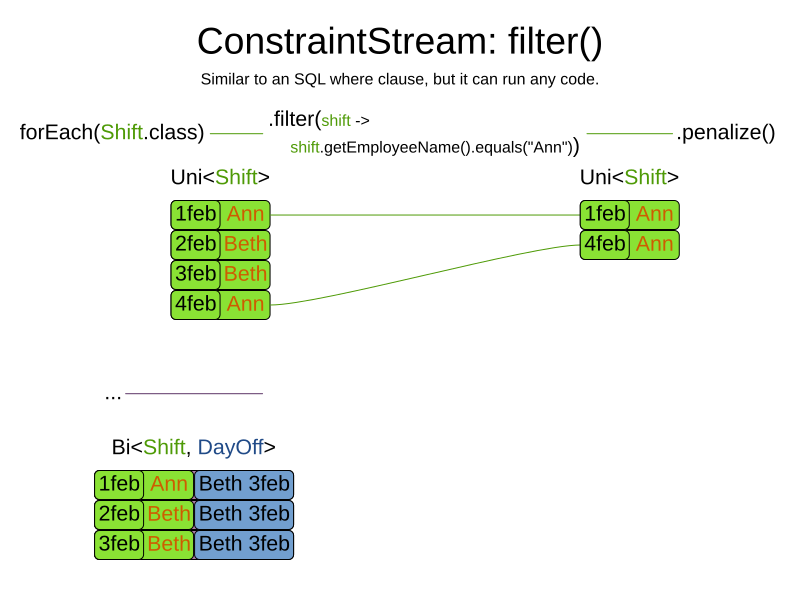

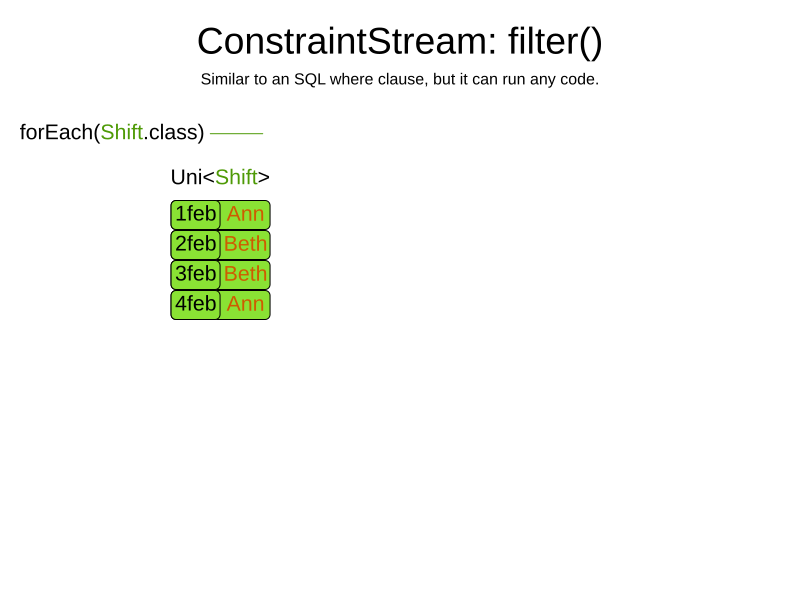

Score calculation

• Easy Java
• Incremental Java

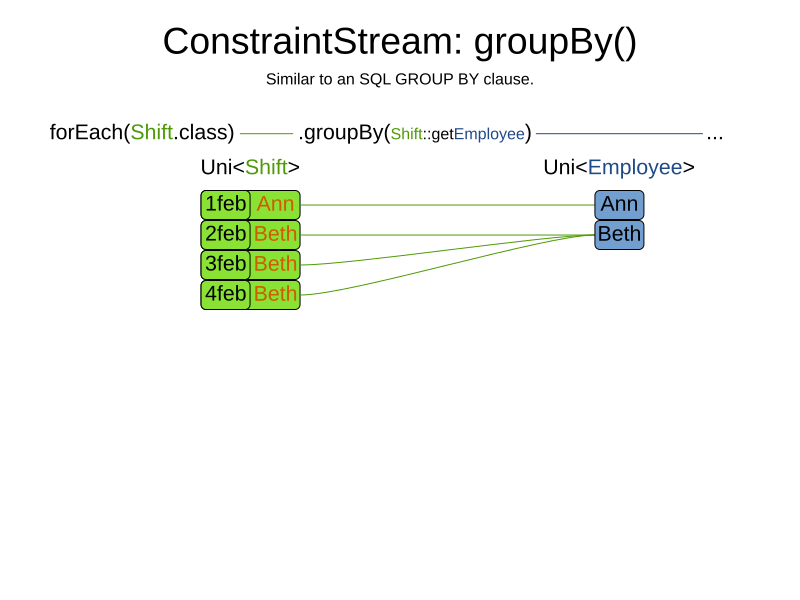

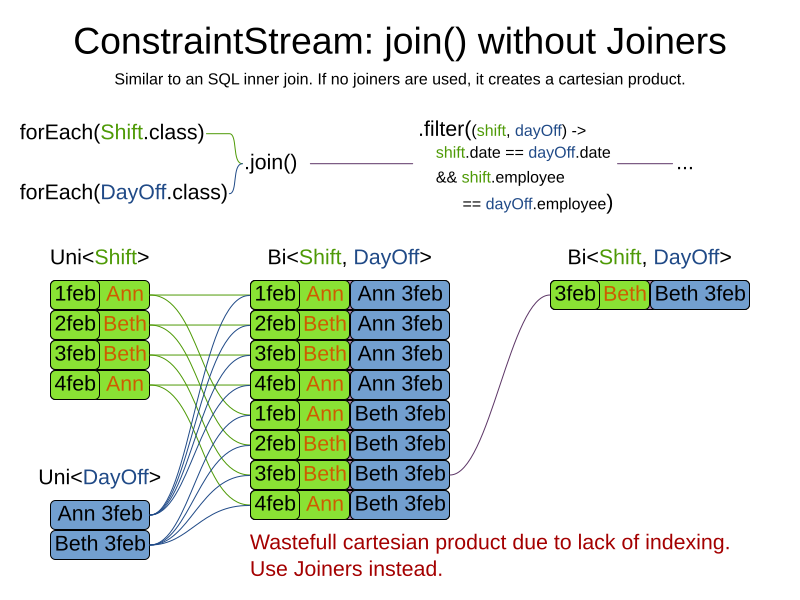

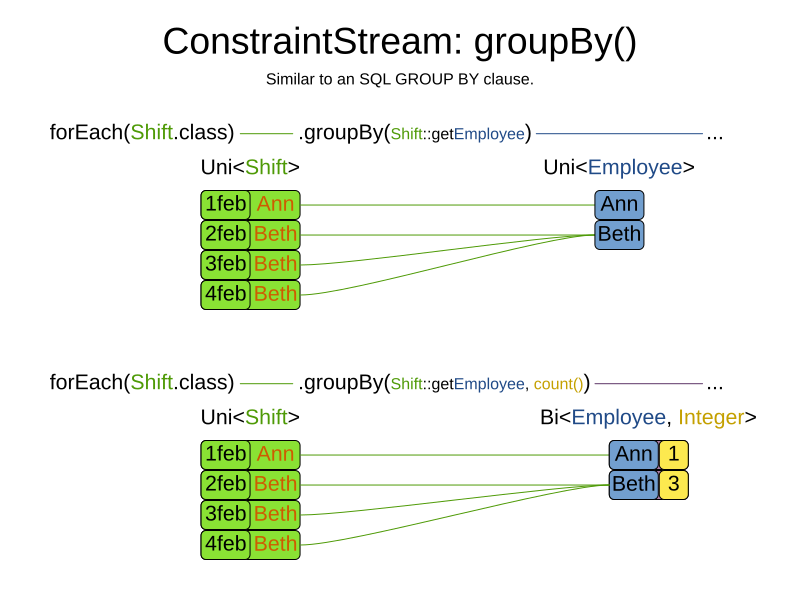

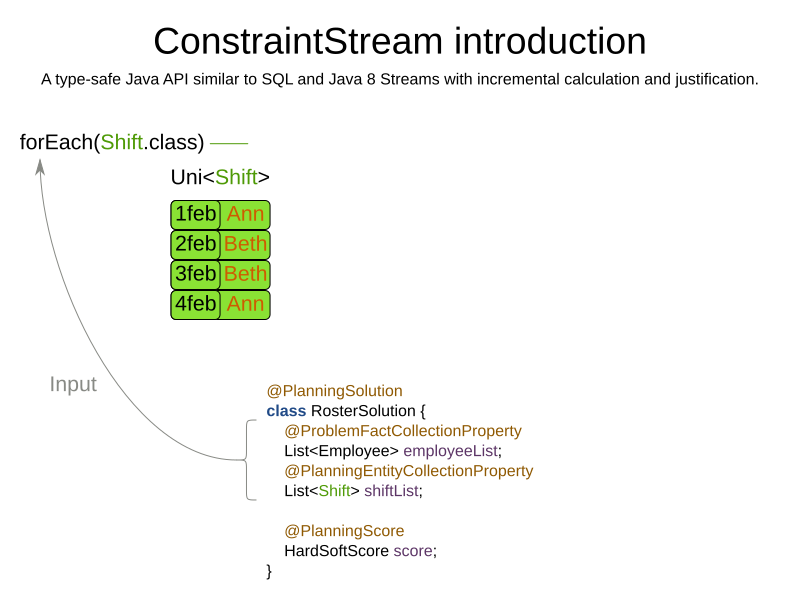

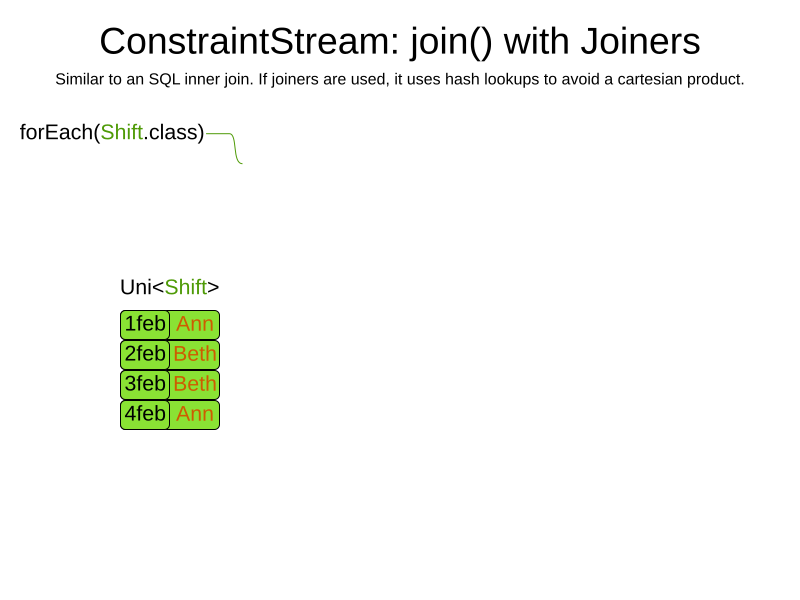

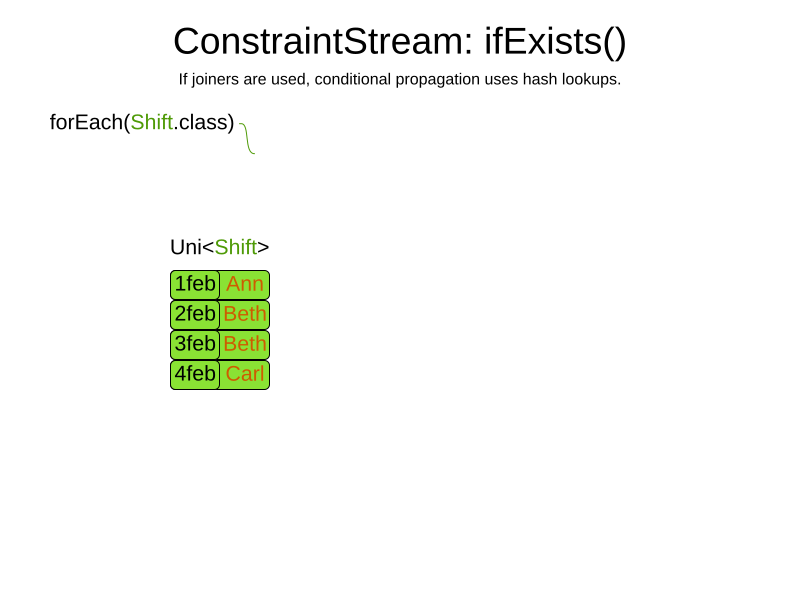

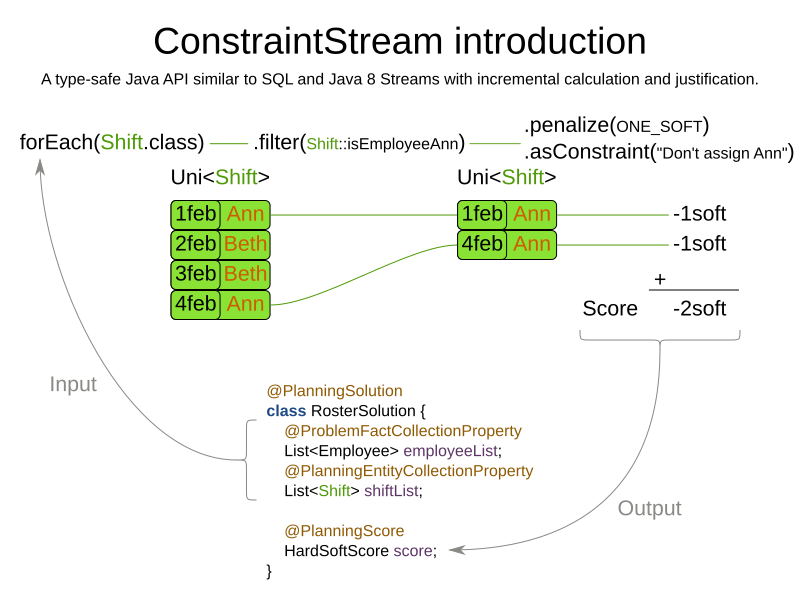

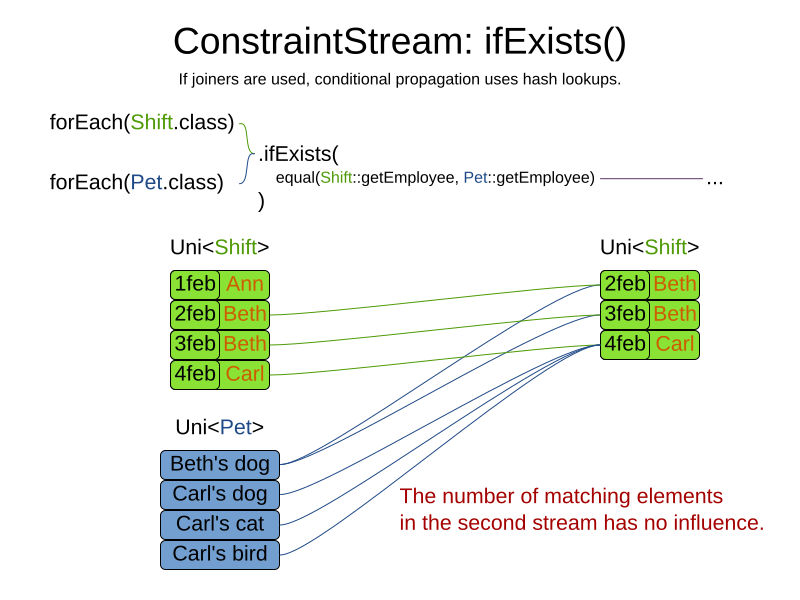

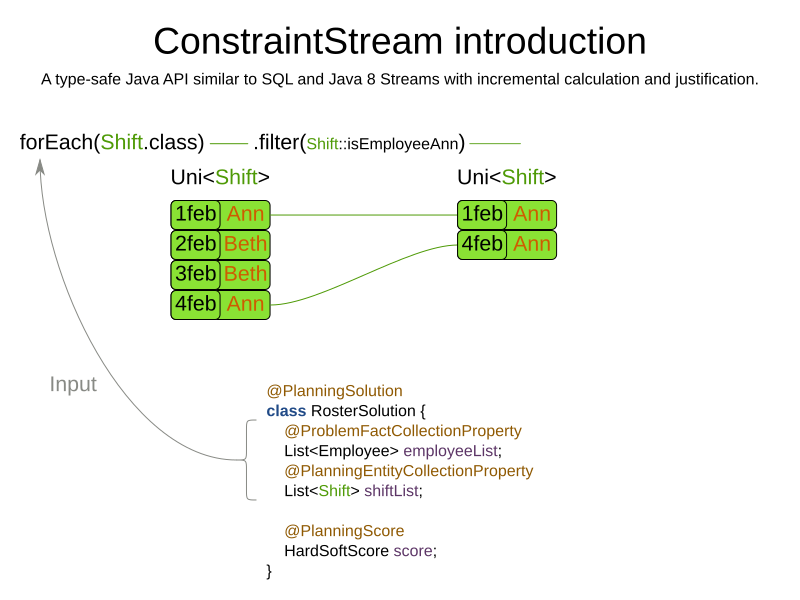

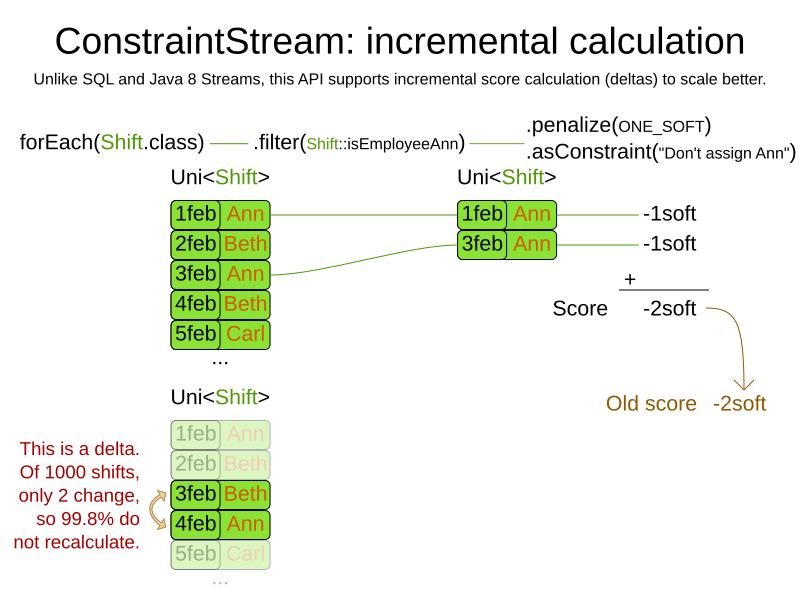

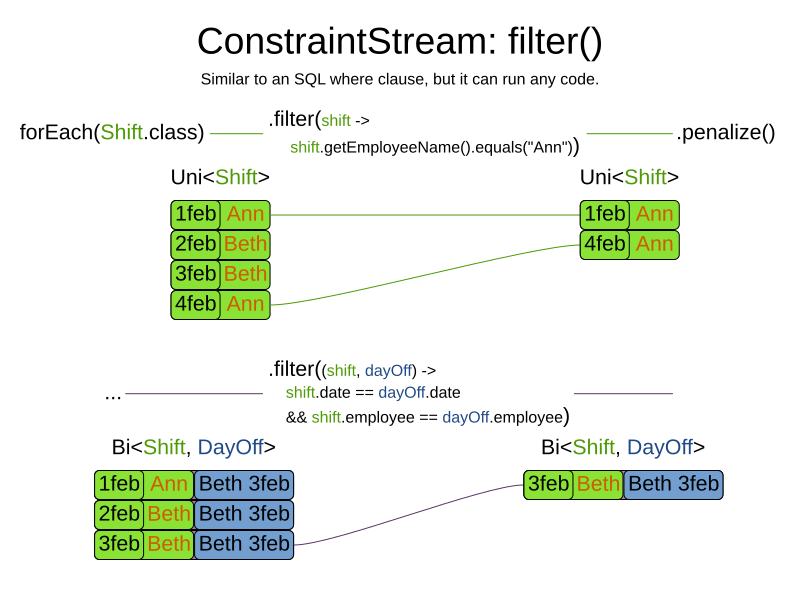

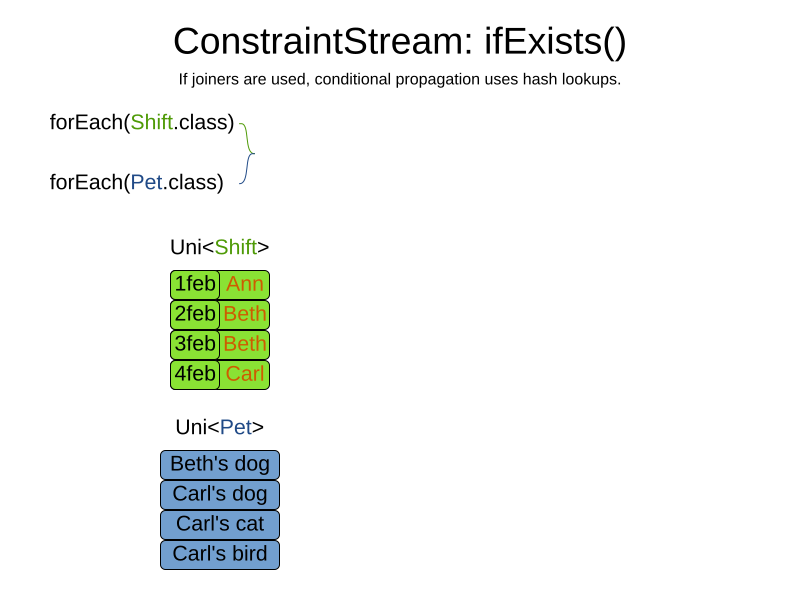

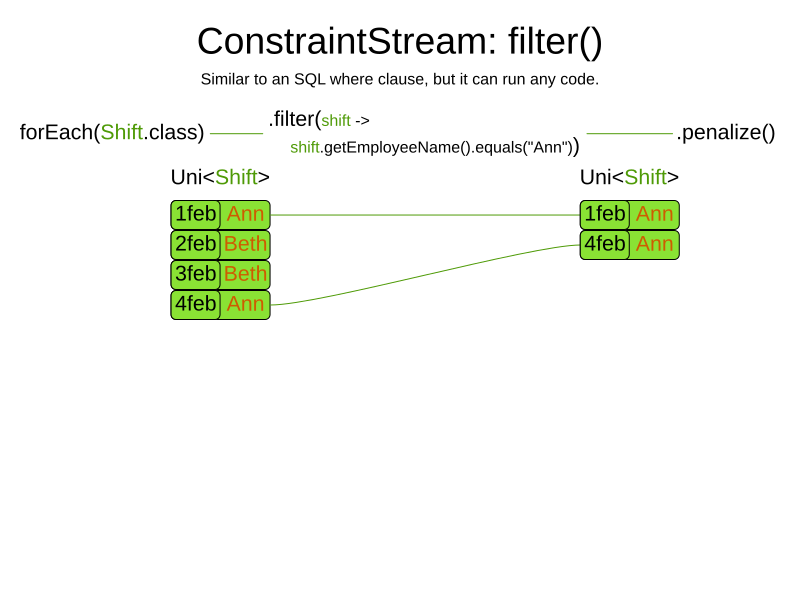

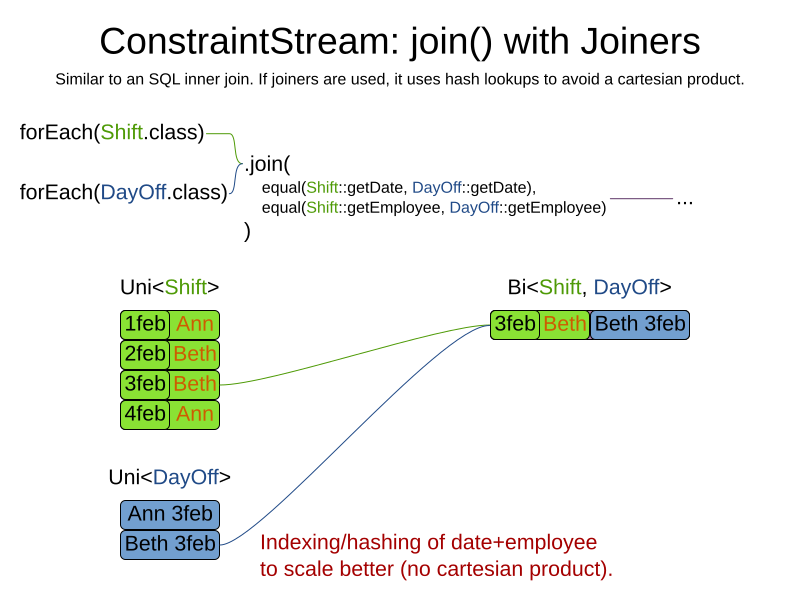

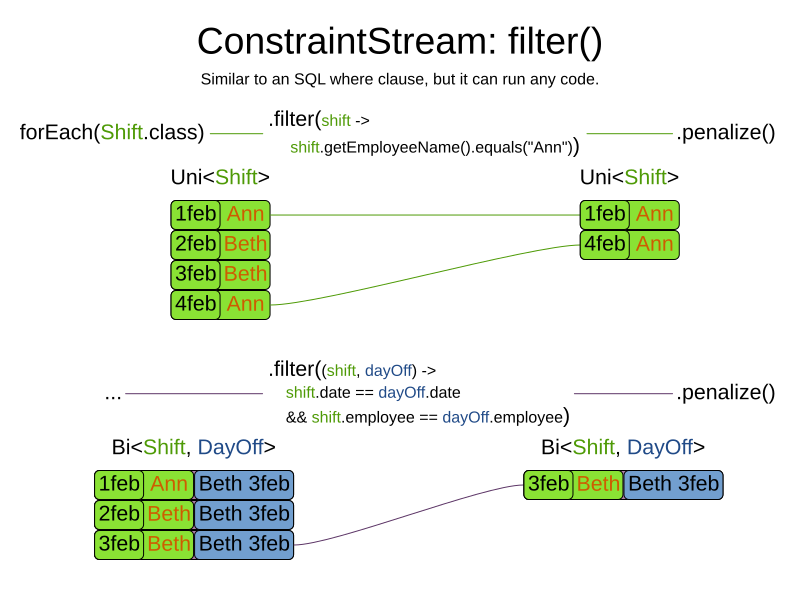

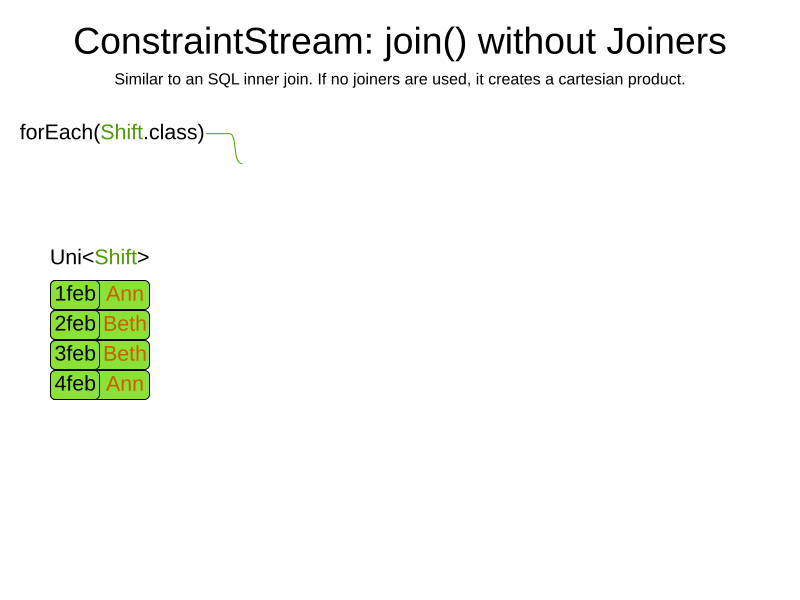

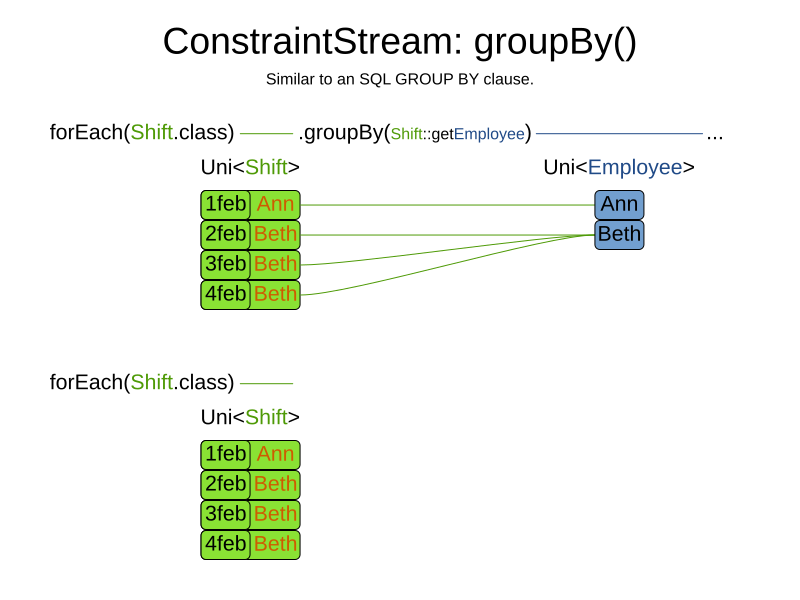

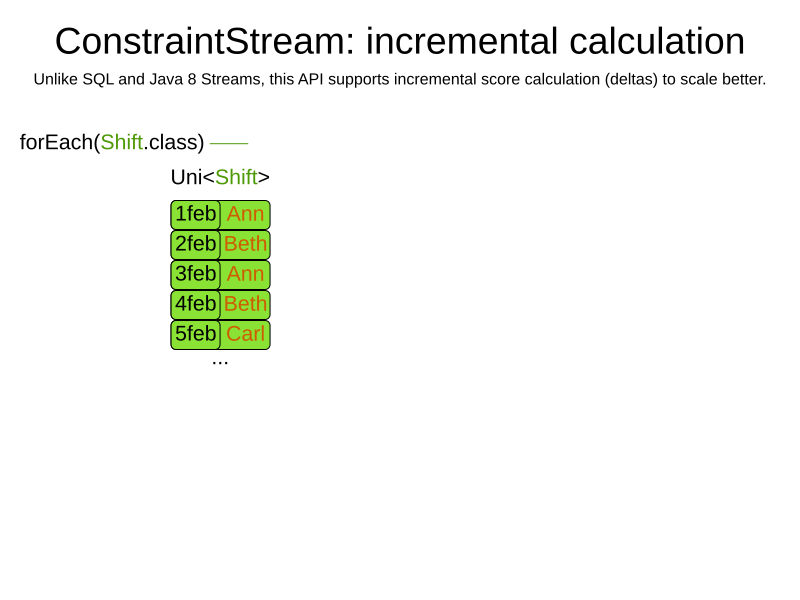

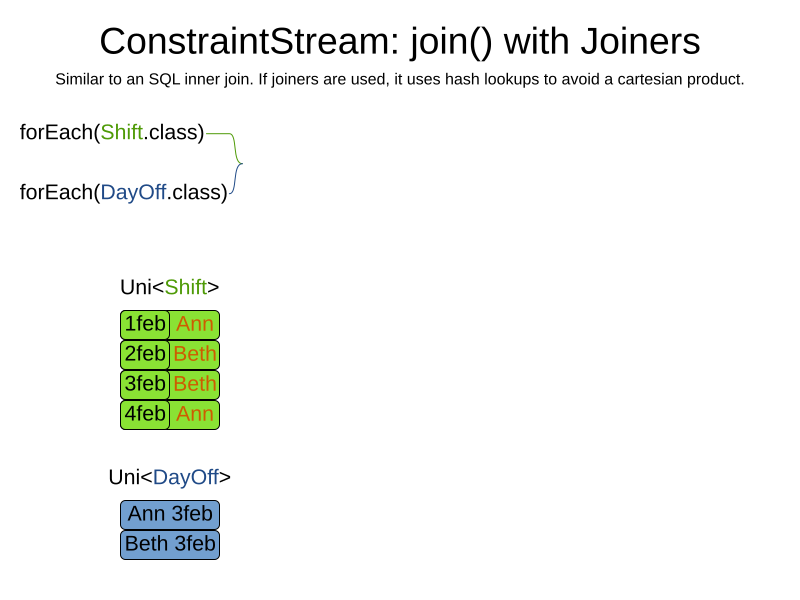

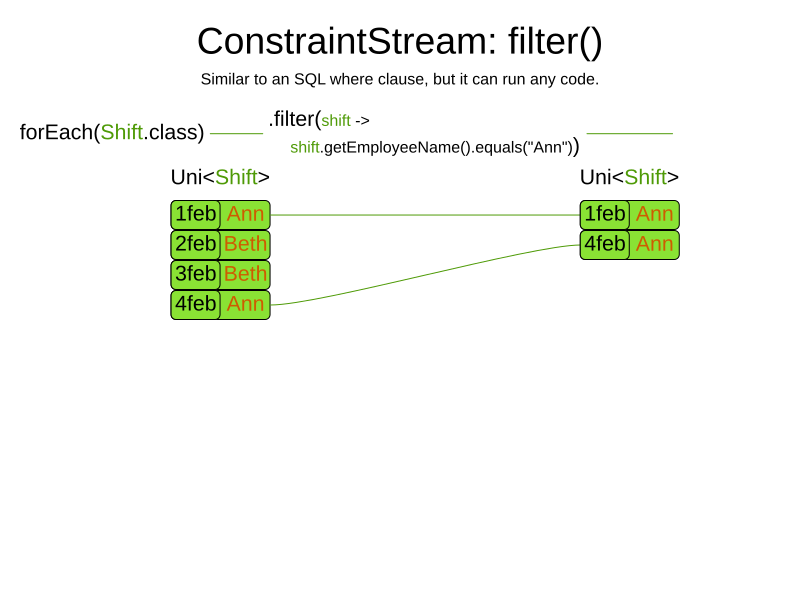

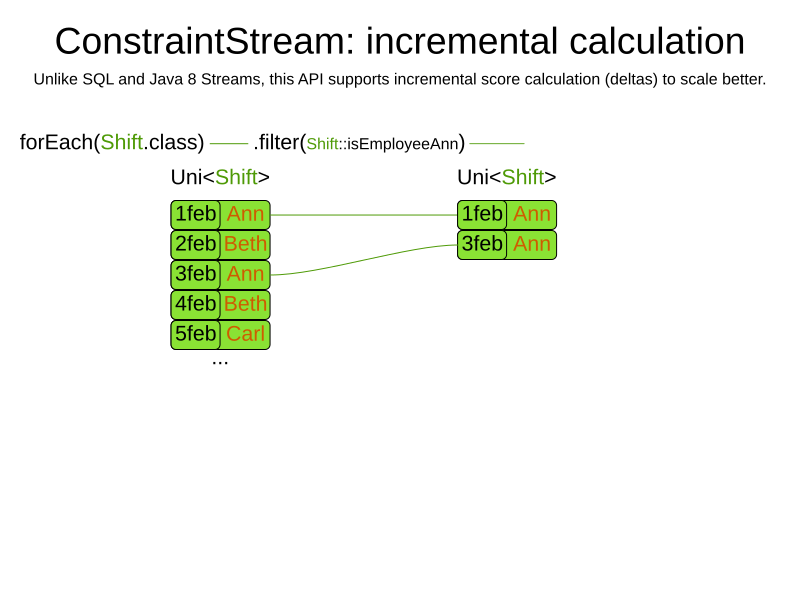

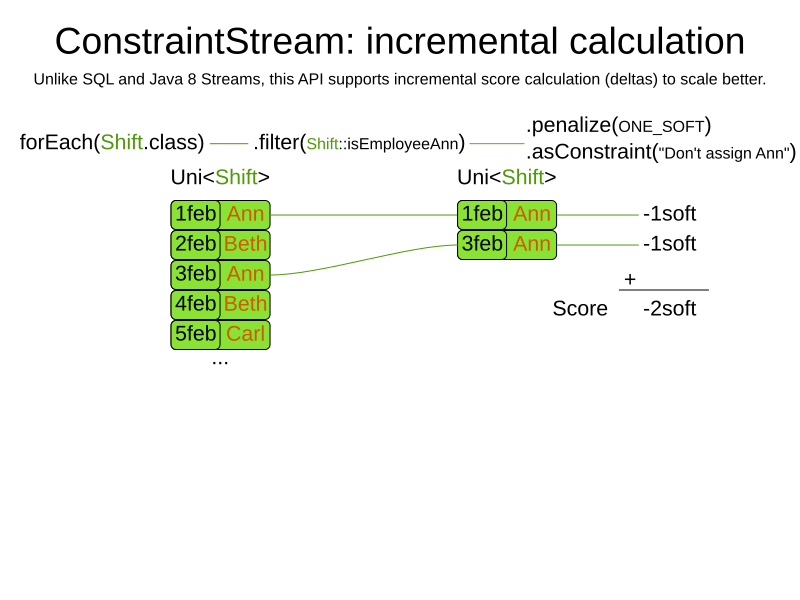

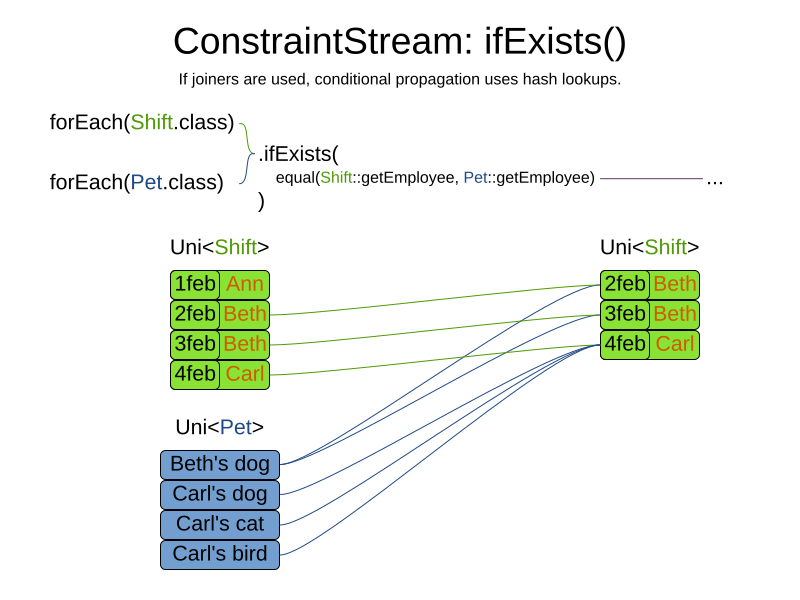

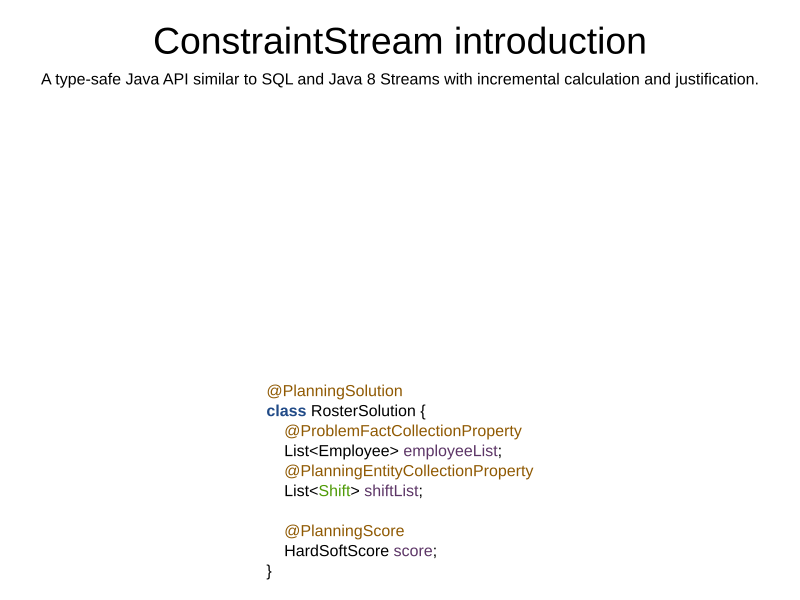

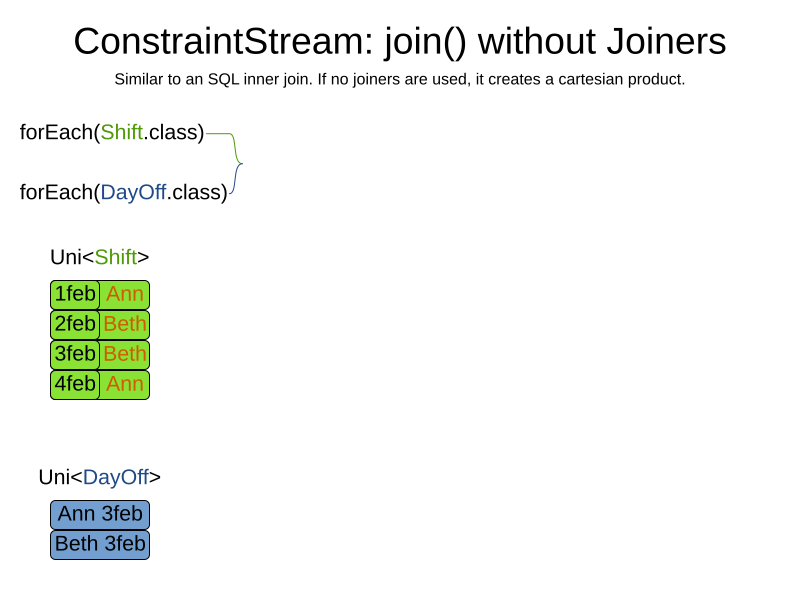

• ConstraintStreams (recommended)
• Drools

Easy Java score calculation

• Easy to implement
• Bridge an existing system
• Slow

public class CloudBalancingEasyScoreCalculator
    implements EasyScoreCalculator<CloudBalance> {

  public HardSoftScore calculateScore(CloudBalance cb) {
    ...
    return HardSoftScore.valueOf(hardScore, softScore);
  }

}

Incremental Java score calculation

• Fast
  • Solution changes ⇒ recalculate score delta only
• Hard to implement
  • Much boilerplate code

Drools score calculation

• Incremental
  • No boilerplate code
• Constraints in Drools Rule Language (DRL)
  • Declarative (like SQL, regular expression)
• Integration opportunities
  • Drools Workbench
  • Decision tables

Drools score calculation: facts

• Facts in DRL loaded from
  • @ProblemFact(Collection)Property
  • @PlanningEntity(Collection)Property

DRL soft constraint: computer cost

rule "computerCost"
  when
    // there is a computer
    $s : Computer($c : cost)
    // there is a processes on that computer
    exists Process(computer == $s)
  then
    // lower soft score by the maintenance cost
    scoreHolder.addSoftConstraintMatch(kcontext, - $c);
end

DRL hard constraint: CPU power

rule "requiredCpuPowerTotal"
  when
    // there is a computer
    $s : Computer($cpu : cpuPower)
    // with too little cpu for its processes
    accumulate(
      Process(computer == $s, $requiredCpu : requiredCpuPower);
      $total : sum($requiredCpu);
      $total > $cpu
    )
  then
    // lower hard score by the excessive CPU usage
    scoreHolder.addHardConstraintMatch(kcontext,
        $cpu - $total);
end

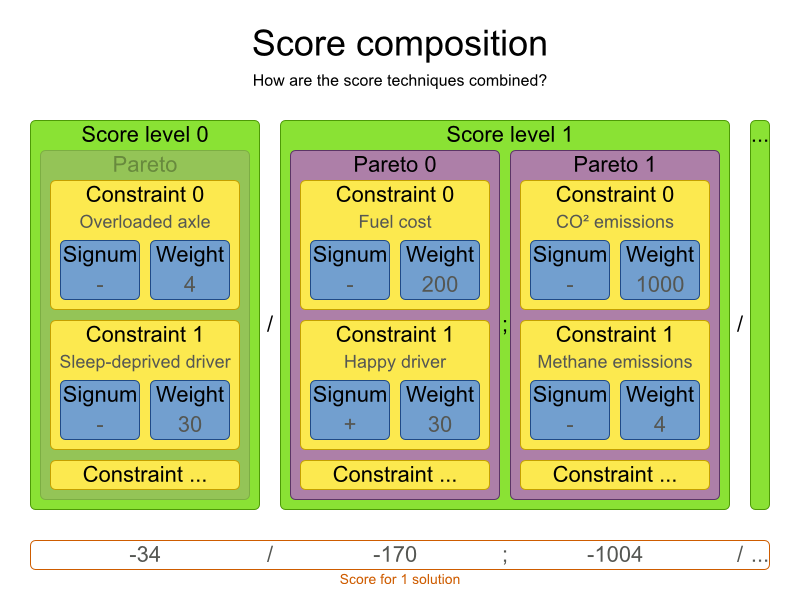

Score calculation must be flexible

• Optimal solution for almost your business problem is useless
• Model supports:
  • Reusing existing classes
  • Rich, OO class hierarchies (including polymorphism)
• Constraints supports:
  • Any constraint (no linear or quadratic restrictions!)
  • Reusing existing code

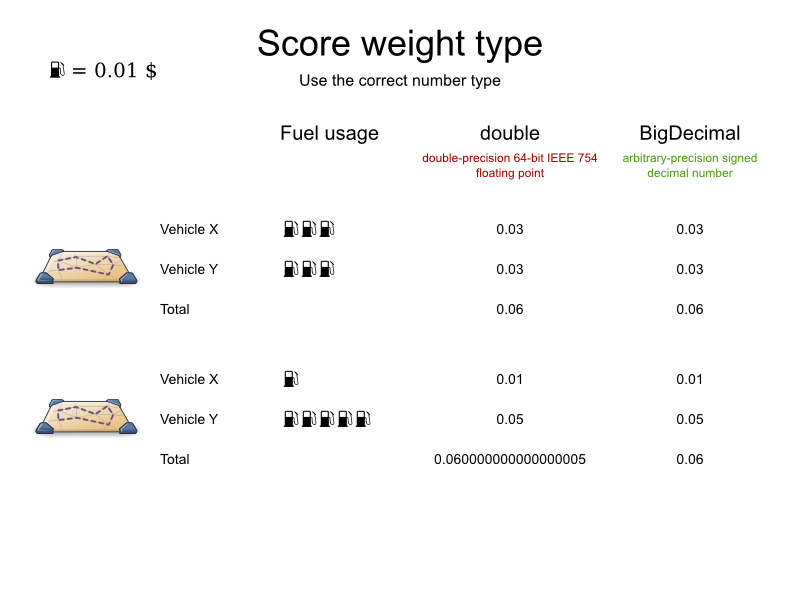

• Scoring supports:
  • Positive/negative mix
  • Score weights
  • Unlimited score levels

Cloud Balancing example

Solving it

Solver configuration by XML

<solver>
  <solutionClass>...CloudBalance</solutionClass>
  <entityClass>...Process</entityClass>

  <scoreDirectorFactory>
    <scoreDrl>...Constraints.drl</scoreDrl>
  </scoreDirectorFactory>

  <!-- optimization algorithms are optional -->
</solver>

Solving

SolverFactory<CloudBalance> factory
        = SolverFactory.createFromXmlResource("...SolverConfig.xml");

Solver<CloudBalance> solver = factory.buildSolver();
CloudBalance problem = ... // Load problem
CloudBalance solution = solver.solve(problem);

Lab901: Win US election with least votes

• Game the system: gamer candidate should win election
• Gamer candidate should have as little votes as possible
• Decide winning candidate per federal state
• Everyone votes
• There are no 3rd party candidates
• Get half of votes plus one for a state to win all its electoral votes

Lab: Switch score calculation type

• Edit Cloud Balancing's solver configuration xml
• Switch to Easy Java Score calculation
• Switch to Incremental Java Score calculation
• Let them run each parallel windows.
• What happens if the dataset size increases?

CB code overview

In IDE

Lab: Computer 0 bans memory-hungry processes

• Computer 0 violates 1 hard constraint per process that requires more than 3GB RAM memory
• Implement first in Easy Java Score Calculation
• Optional: Then in Drools DRL
• Optional: Then in Incremental Java Score Calculation

N Queens

N Queens demo

demo

N Queens

• Imperfect example
  • Not NP-complete (shortcuts exist)
  • Score function is too simple (too black and white)

What solution is better?

• Need for objective scoring
• Better score ⇔ better solution
• Highest score ⇔ optimal solution

N Queens

• Hard constraints:
  • -1 for every pair of conflicting queens
• Soft constraints:
  • None

Score = -2

Conflicts: A-B, B-D

Score = 0

No conflicts

How do we find the best solution?

• Need for optimization algorithms
• Best solution in available time

Lab: Reward knight attacks

• Use N Queens example
• Remove termination on bestScoreLimit.
• For every pair of queens that can knight attack each other: +1 score
• Implement with Drools score calculation
• Optional: implement Easy Java Score calculation too
• Optional: implement Incremental Java Score calculation too

Exhaustive Search

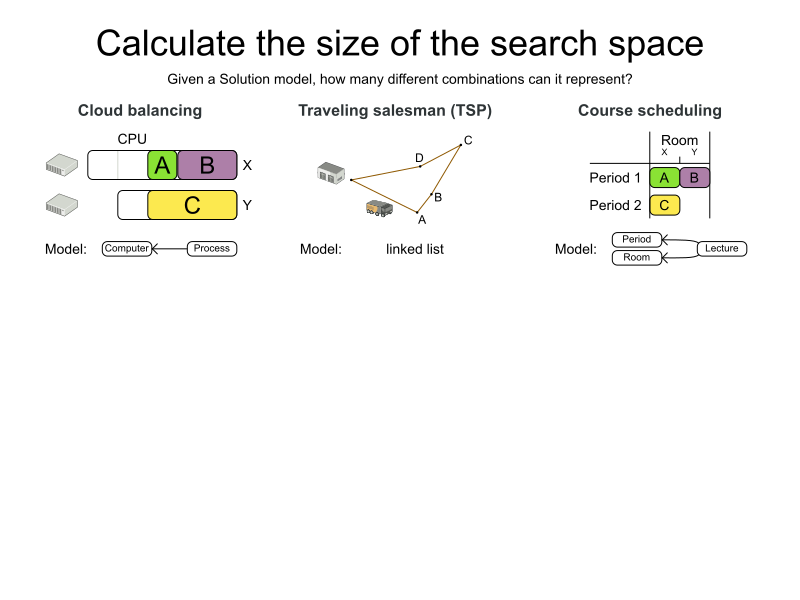

How many combinations for 100 queens?

Source: NASA (wikipedia)

> humans?
7 000 000 000

How many combinations for 100 queens?

Source: NASA and ESA (wikipedia)

> minimum atoms
in the observable universe?
10⁸⁰

How many combinations for 100 queens?

How many combinations for n queens?

How long?

Presume 10⁹ scores/ms ⇒ 10²⁰ scores/year

Moore's law == a drop in the ocean

Brute Force scalability

8 queens = 15.7 seconds
9 queens = 2.5 minutes (times 10)
10 queens = 0.83 hours (times 20)

Lab: Try Brute Force

<solver>
  ...
  <exhaustiveSearch>
    <exhaustiveSearchType>BRUTE_FORCE</exhaustiveSearchType>
  </exhaustiveSearch>
</solver>

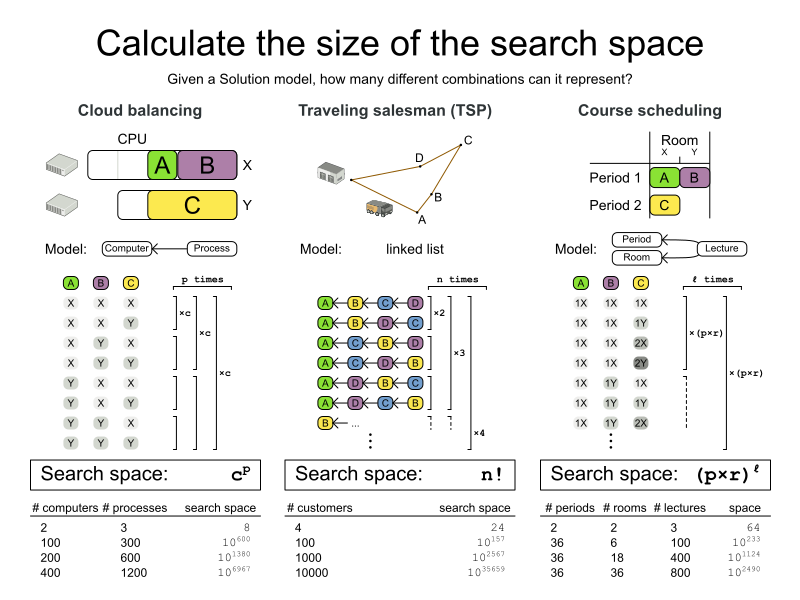

Brute force scalability

Plan 1200 processes with brute force?

Branch And Bound

Branch And Bound configuration

• nodeExplorationType
• entitySorterManner
• valueSorterManner

Lab: Try Branch And Bound

<solver>
  ...
  <exhaustiveSearch>
    <exhaustiveSearchType>BRANCH_AND_BOUND</exhaustiveSearchType>
  </exhaustiveSearch>
</solver>

• Optional: Try a different nodeExplorationType

Exhaustive Search doesn't scale

• Branches explode exponentially
• Not enough CPU
• Not enough memory

Agenda: Training session 2

• Domain modelling
• Employee rostering
• Curriculum course timetabling
• Exam timetabling
• Score calculation advanced
• Tennis club scheduling
• Overconstrained planning
• Hospital bed planning
• Methodology
• Drools integration
• Dinner party

Domain modelling

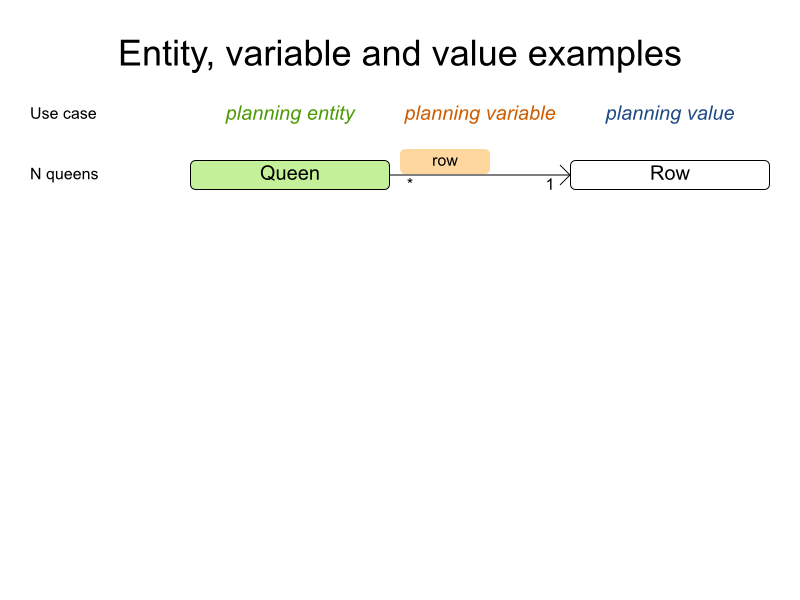

Terminology

• Problem fact
• Planning entity class: Process
• Planning entity: Process-7
• Planning variable: Process.getComputer()
• Planning value: Computer-3
• Planning value range: from Computer-0 to Computer-8

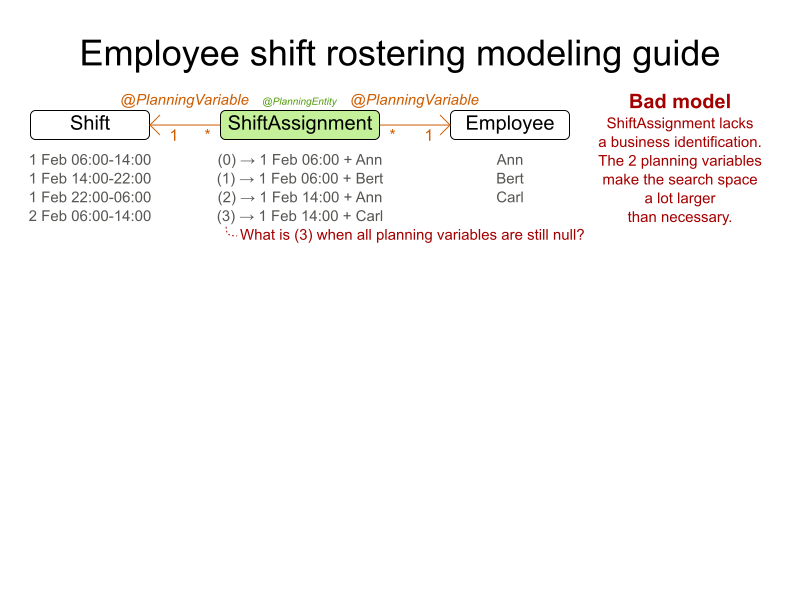

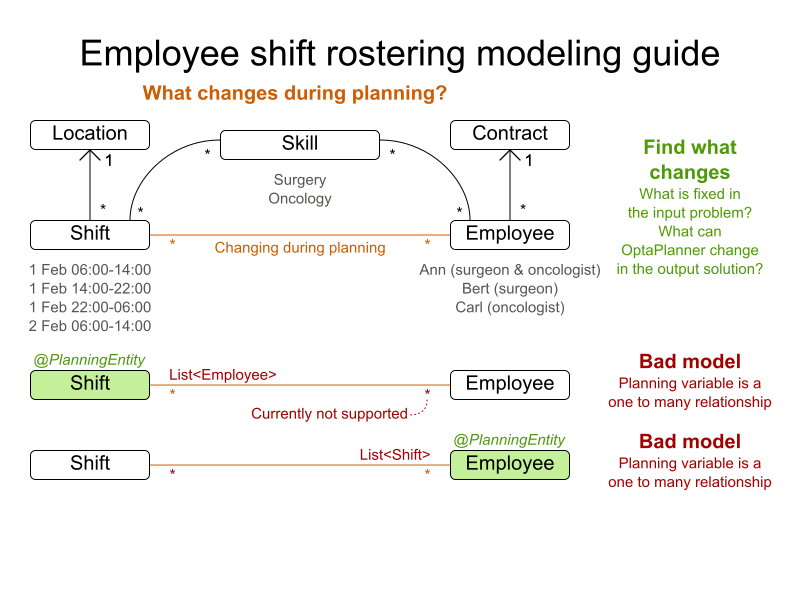

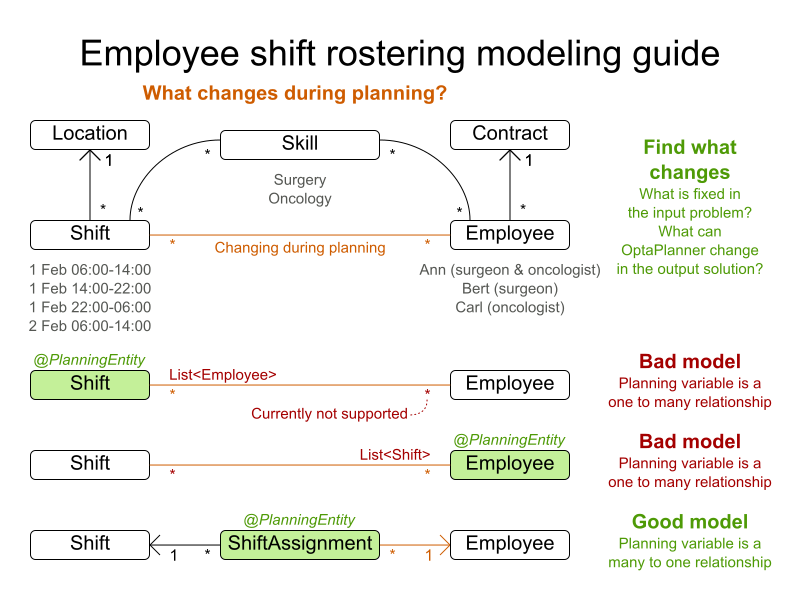

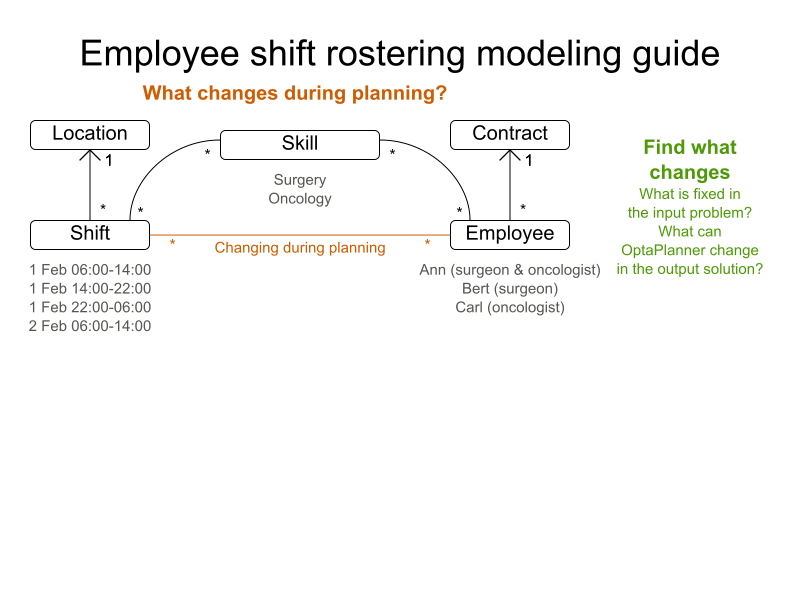

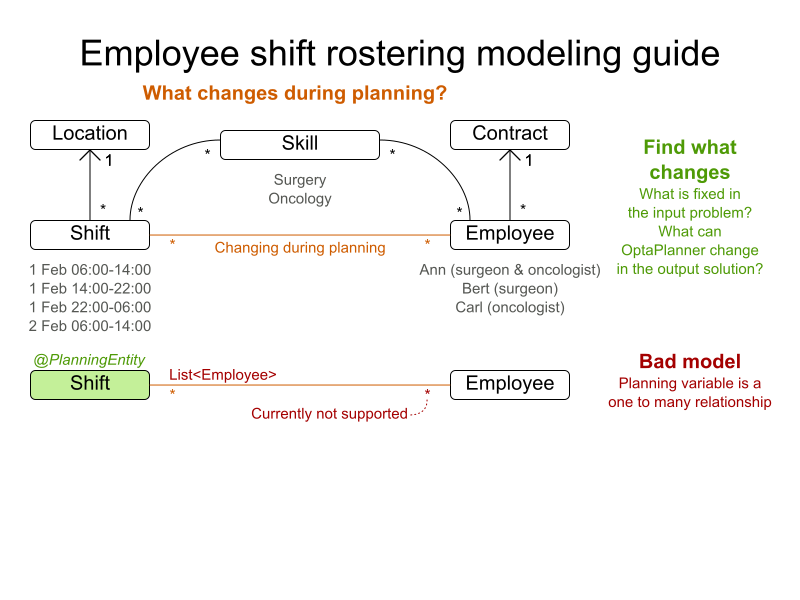

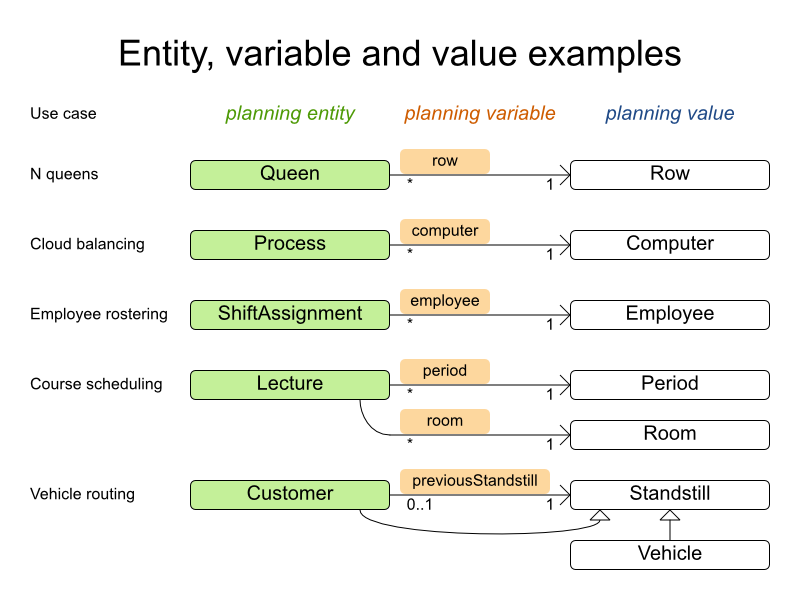

What changes during planning?

• Which class is a planning entity?
• Which property is a planning variable?

Training lab2* exercises

The stage acting camp problem

The cinema room cleanup problem

The Court hearing problem

The Magistrate timetable problem

The credit card budget problem

The tax audit task assignment problem

• Audit priority
• Audit size
• Auditor skill (= qualified)
• Auditor affinity (= work faster)
• Auditor full-time / part-time

ValueRangeProvider

• From Solution
• From Entity

ValueRangeProvider

• Returns Collection
• Returns ValueRange

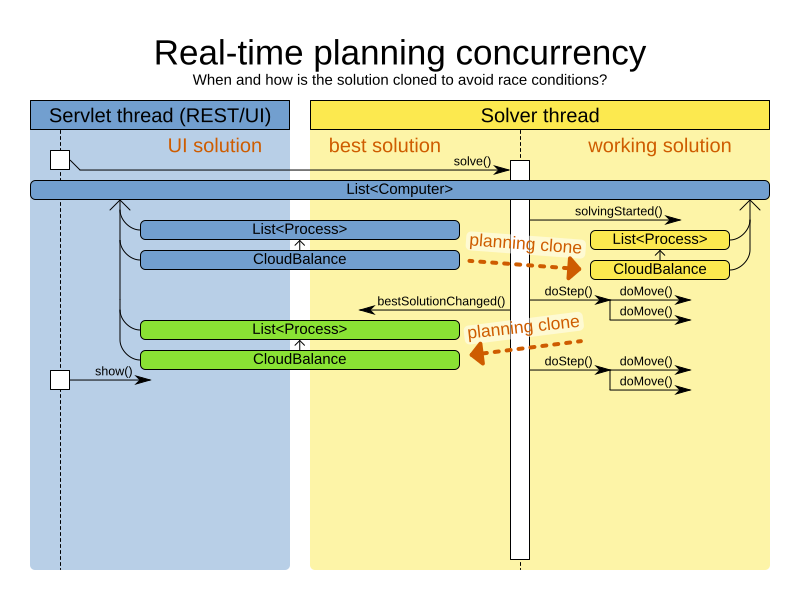

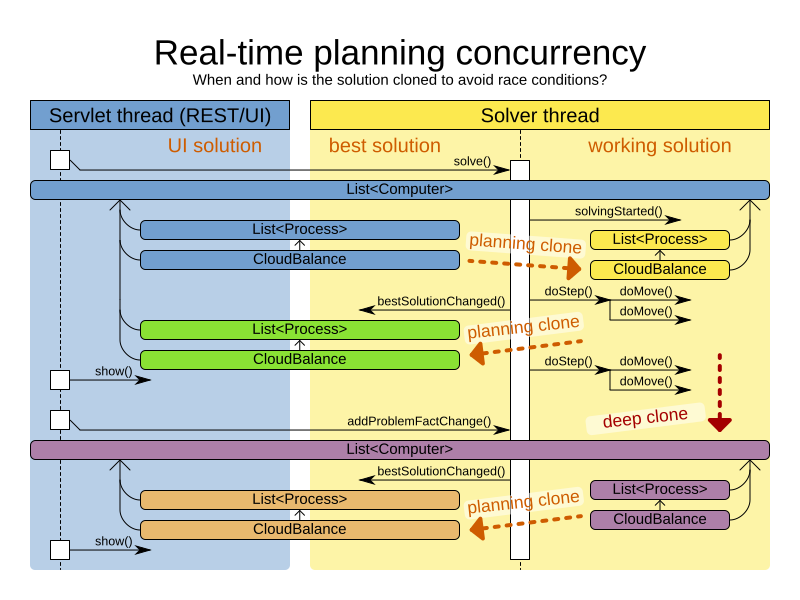

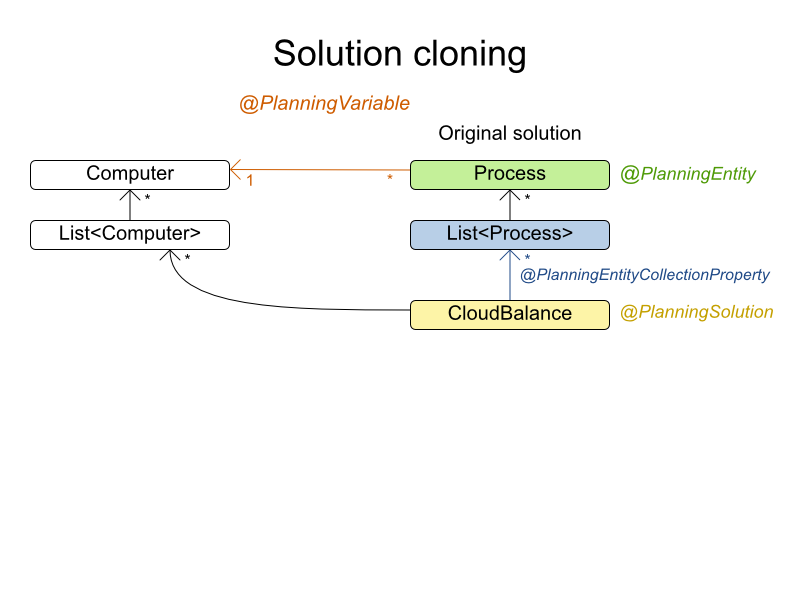

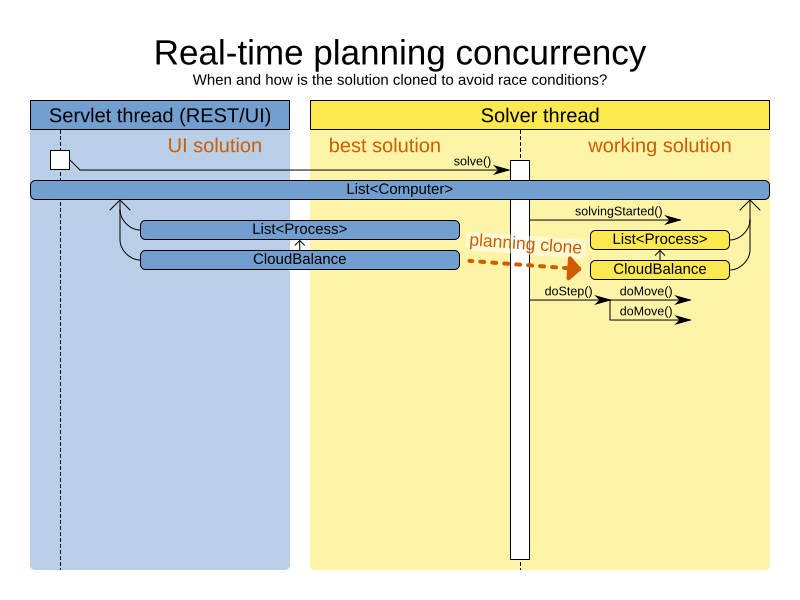

Planning clone

Working solution vs Best solution

• Working solution is internal!
• Best solution is given to you through SolverEventListener

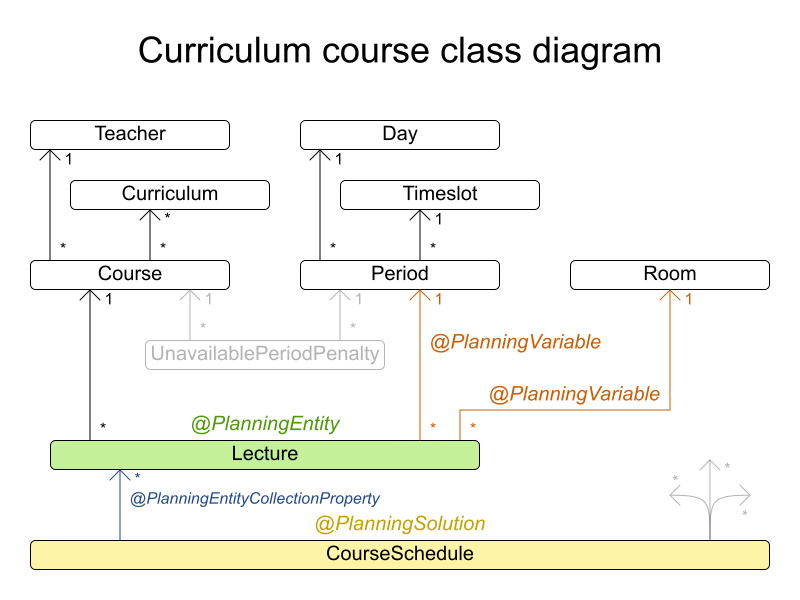

Curriculum course timetabling

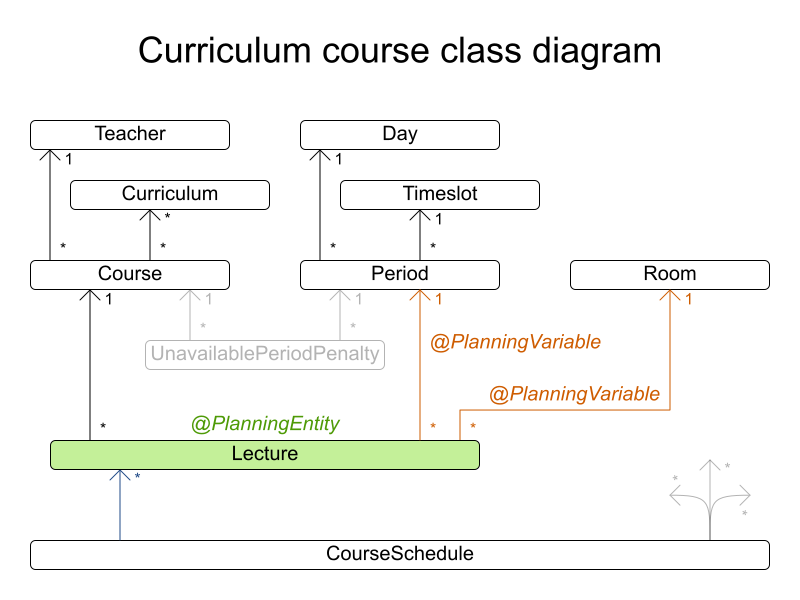

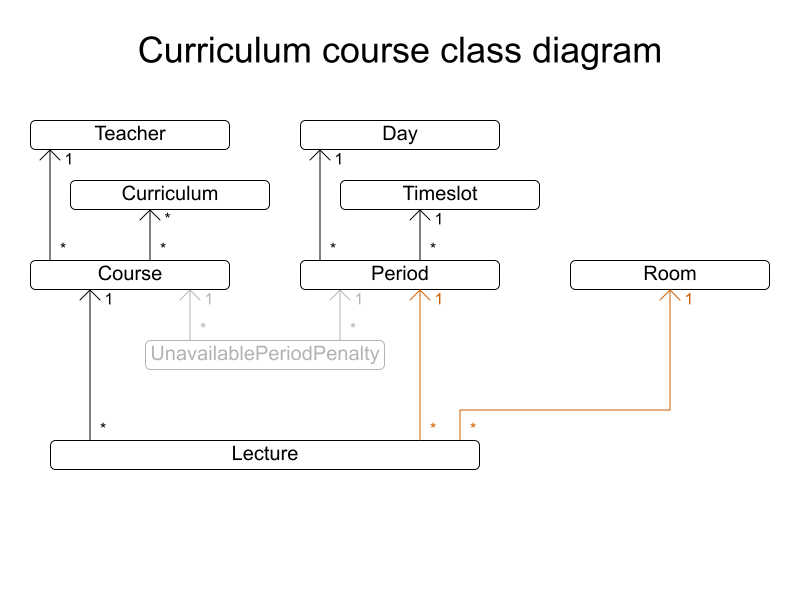

Teacher, Course, Room

class Teacher {
  ...
}

class Course {
  Teacher teacher;
  ...
}

class Period {
  ...
}

class Room {
  ...
}

Lecture

@PlanningEntity
class Lecture {
  Course course;
  int lectureIndexInCourse;

  @PlanningVariable(...) Period period;
  @PlanningVariable(...) Room room;
  ...
}

Lab: Unavailable period penalty

• On curriculum course scheduling example
• Add data: which course is unavailable during which period
• Add constraint

With Java

class UnavailablePeriodPenalty {
  Course course;
  Period period;
  ...
}

public HardSoftScore calculateScore(Schedule schedule);
  int hardScore = 0;
  for (UnavailablePeriodPenalty penalty : schedule.getPenaltyList()) {
    for (Lecture lecture : schedule.getLectureList()) {
      if (penalty.getCourse() == lecture.getCourse()
          && penalty.getPeriod() == lecture.getPeriod()) {
        hardScore--;
      }
    }
  }
  ...
  return HardSoftScore.valueOf(hardScore, softScore);
}

With Drools rule engine

class UnavailablePeriodPenalty {
  Course course;
  Period period;
  ...
}

rule "unavailablePeriodPenalty"
  when
    // When a course is unavailable for a certain period ...
    UnavailablePeriodPenalty($c : course, $p : period)
    // ... and a lecture of that course is scheduled in that period ...
    Lecture(course == $c, period == $p)
  then
    // ... then we lose 1 hard score point
    scoreHolder.addHardConstraintMatch(kcontext, -1);
end

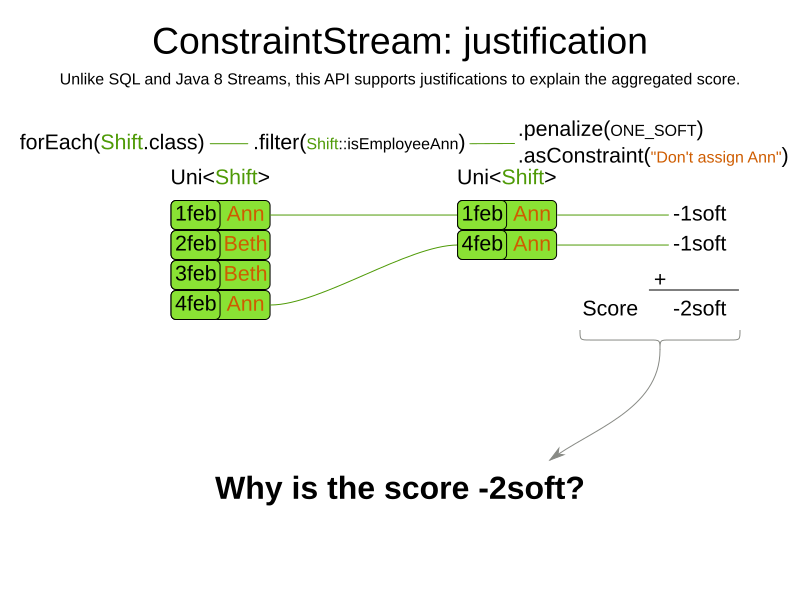

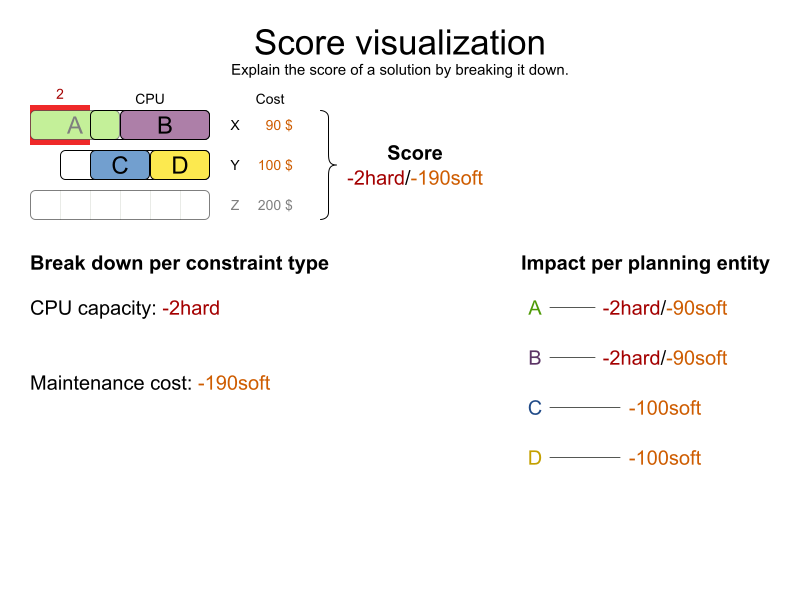

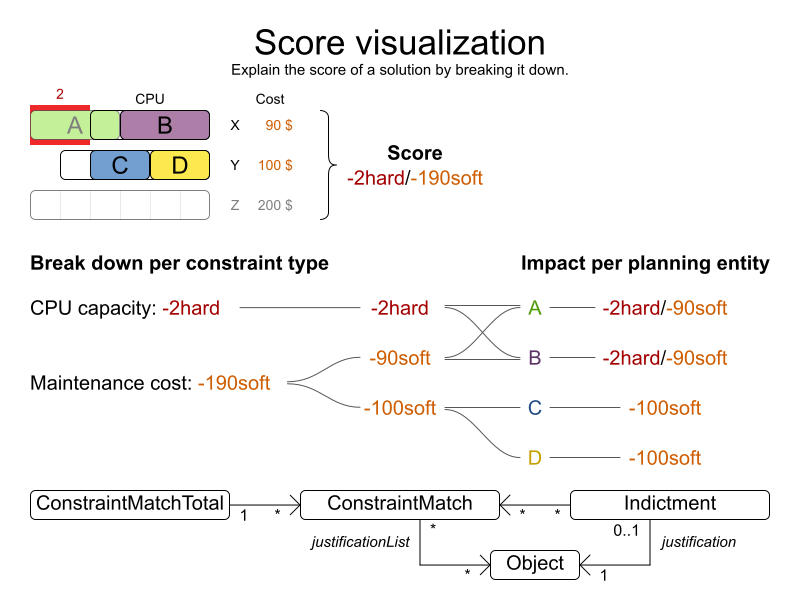

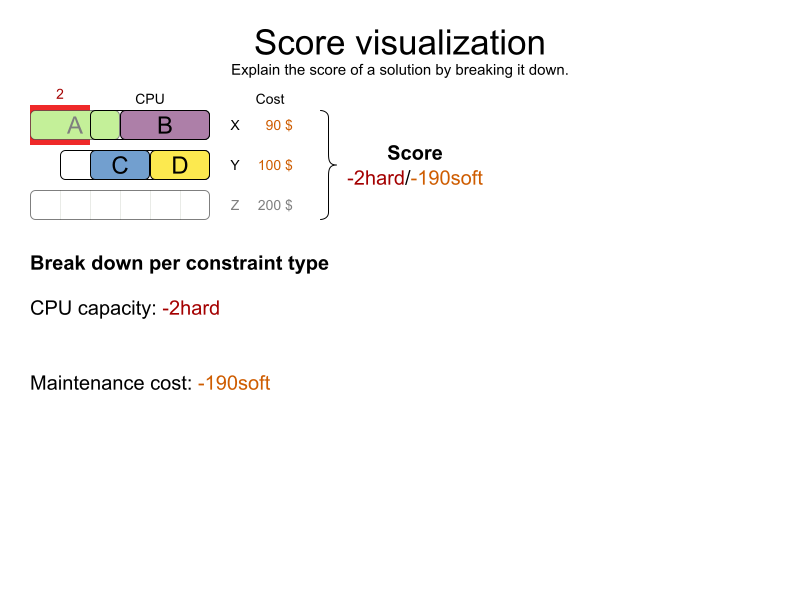

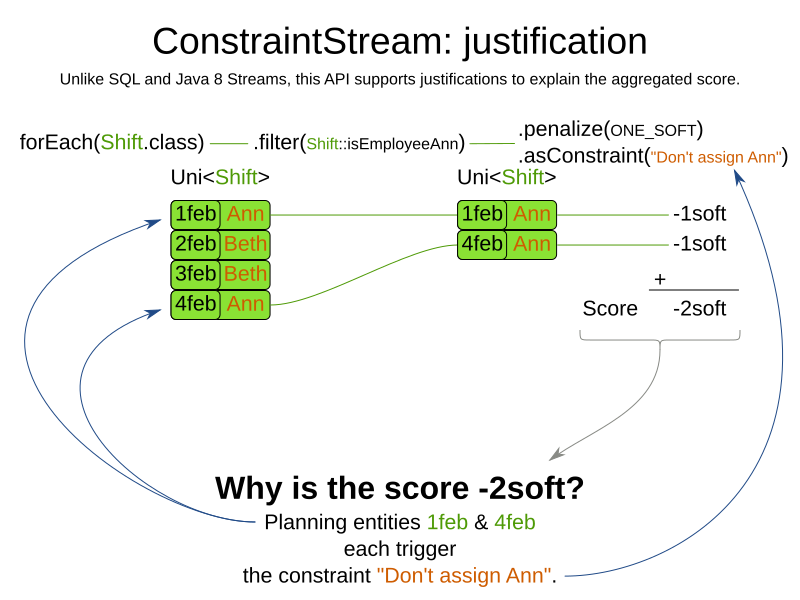

Explaining the score

Heat map

Course scheduling demo

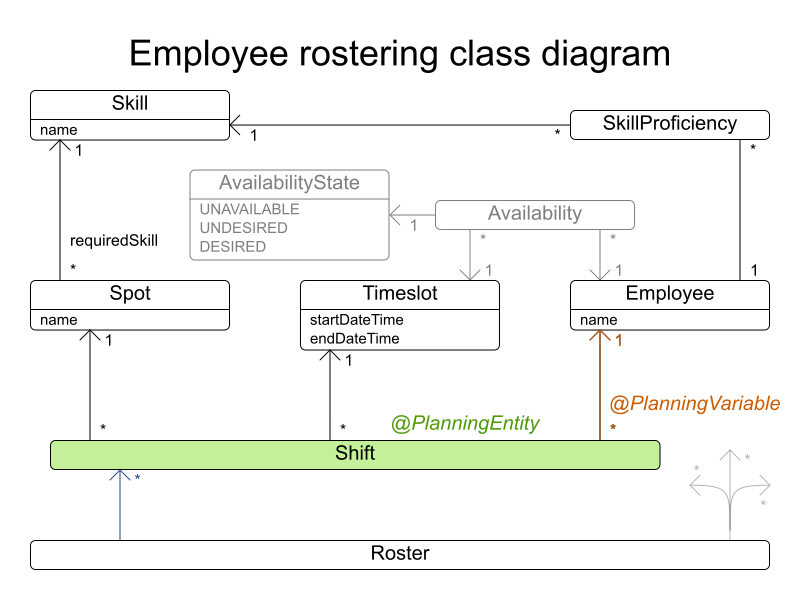

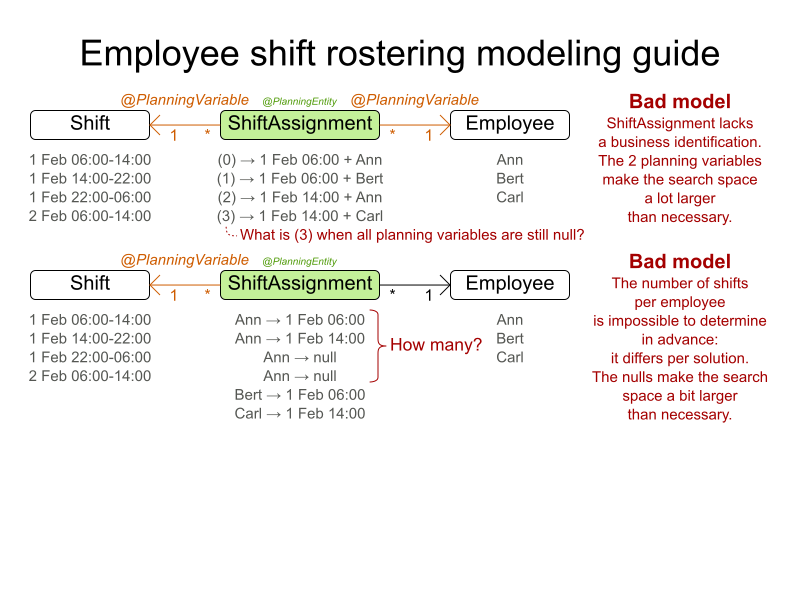

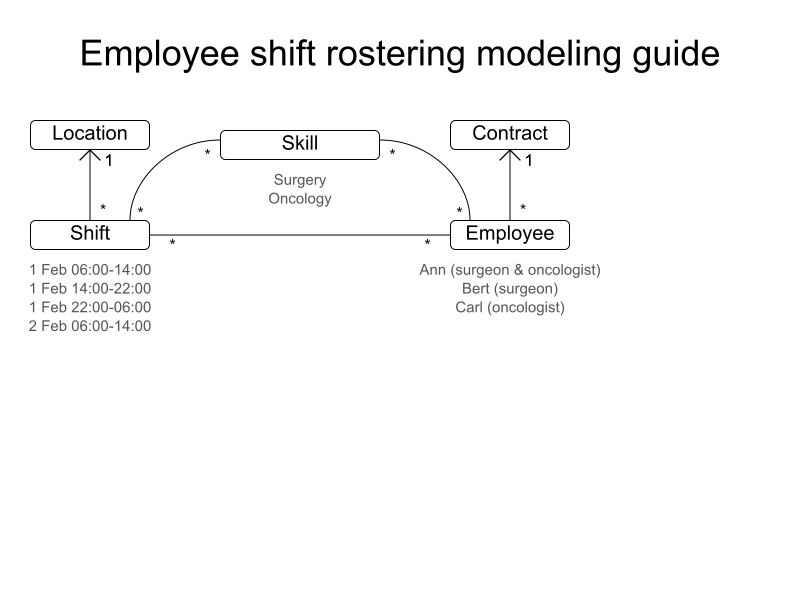

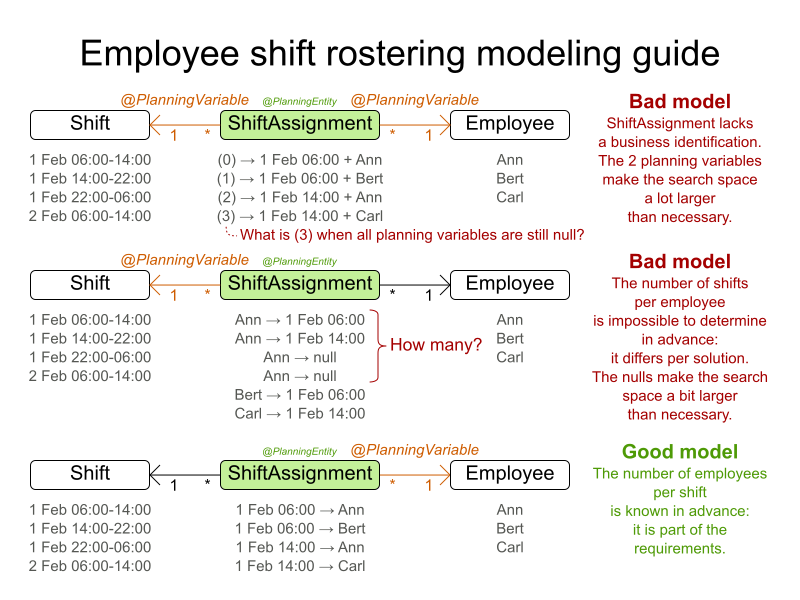

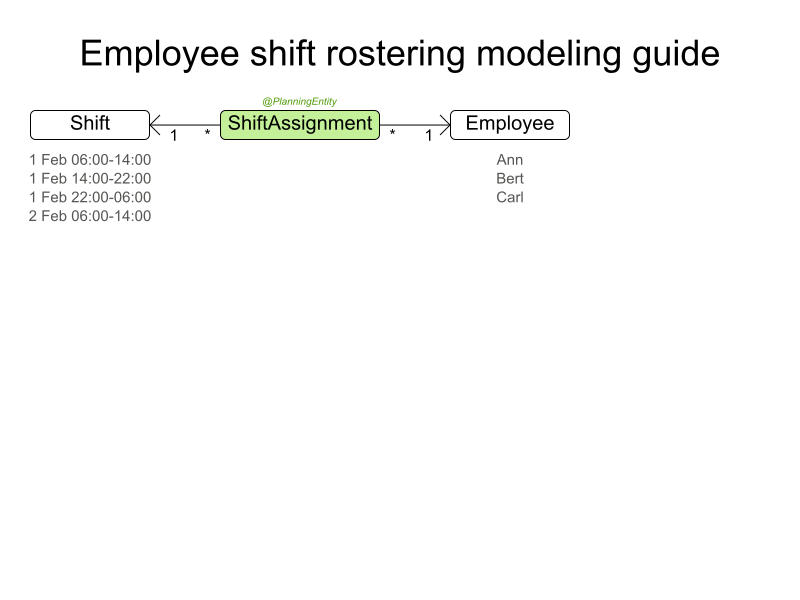

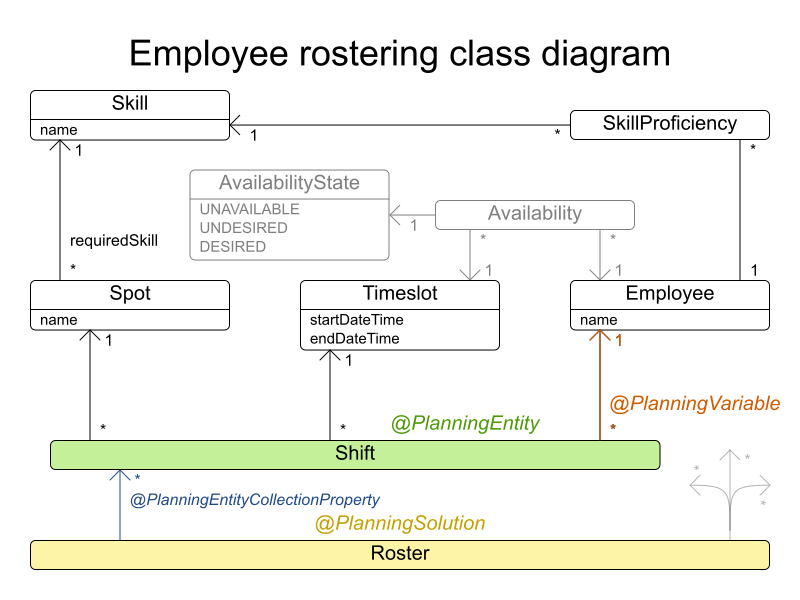

Employee rostering

Lab901: Facility Location Problem

• # stores at different location
• Each store has a demand
• # potential warehouses
• Each warehouse has a capacity and setup cost
• Each store gets supplied by 1 warehouse
• Distance between store and warehouse is also a cost
• Decide which warehouses to buy

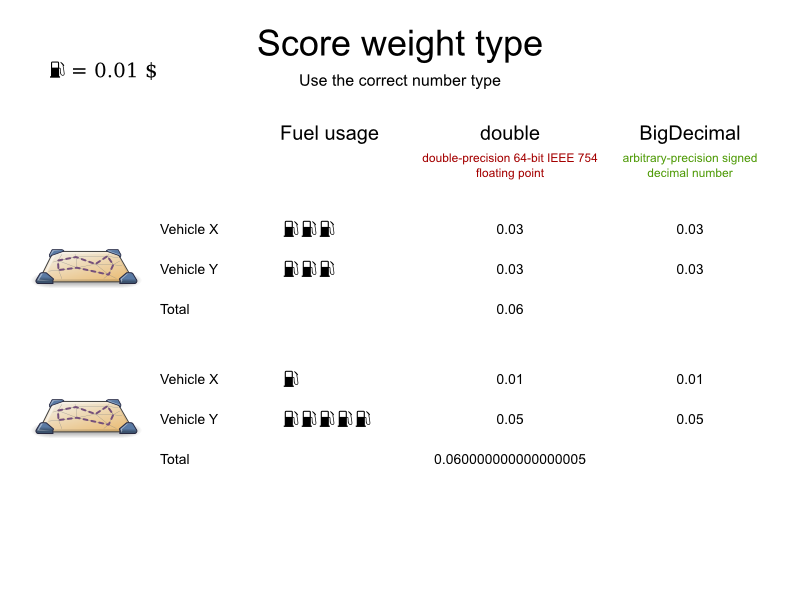

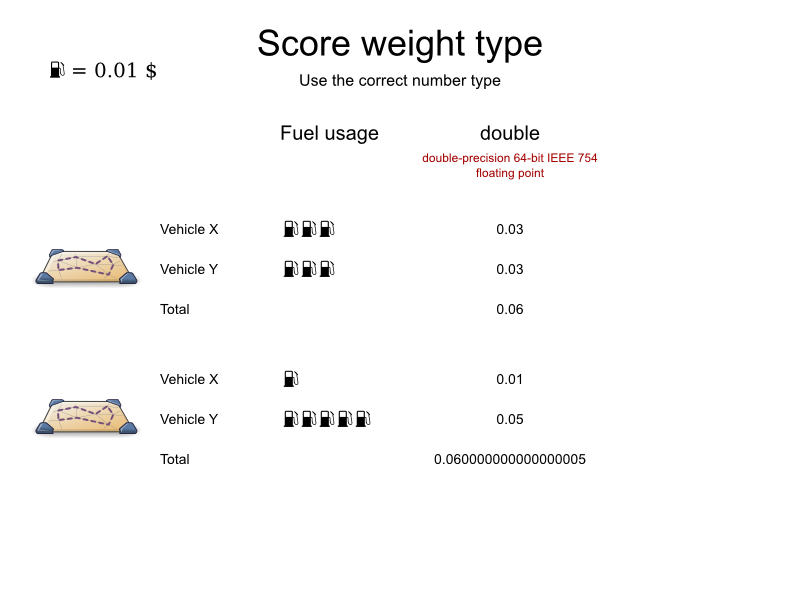

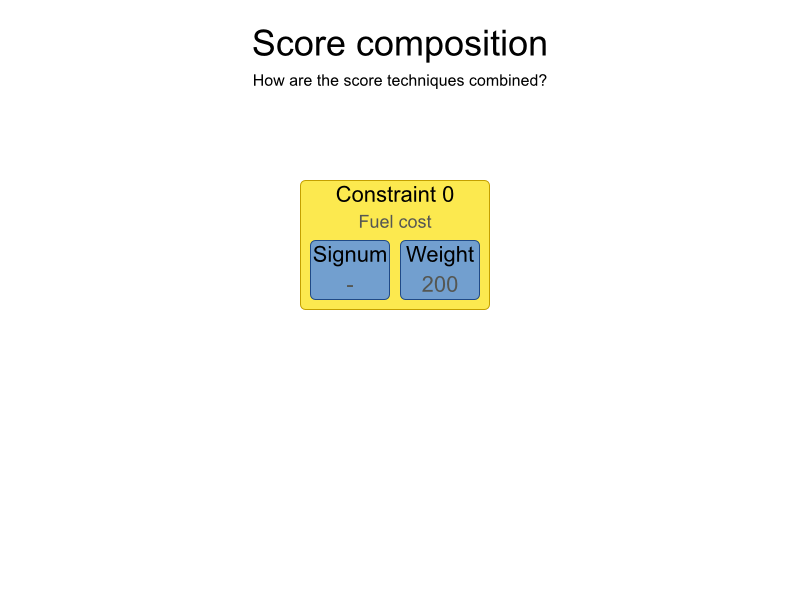

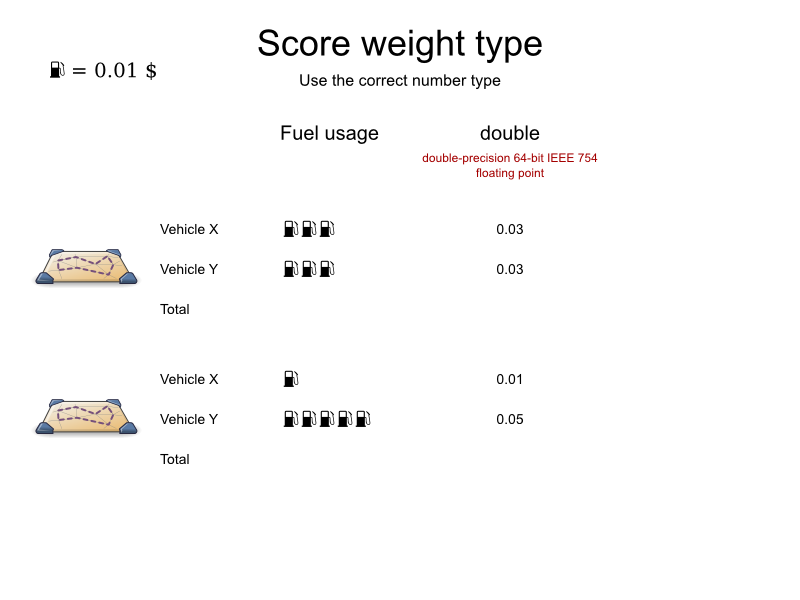

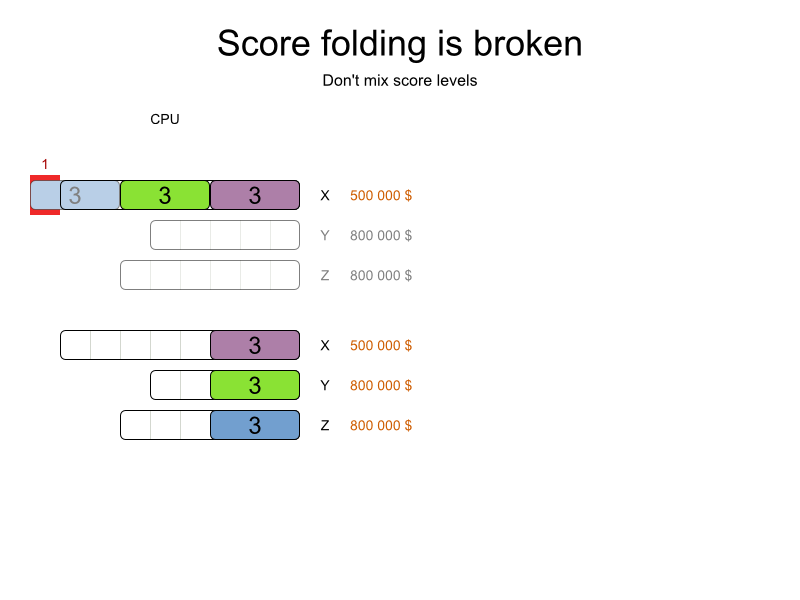

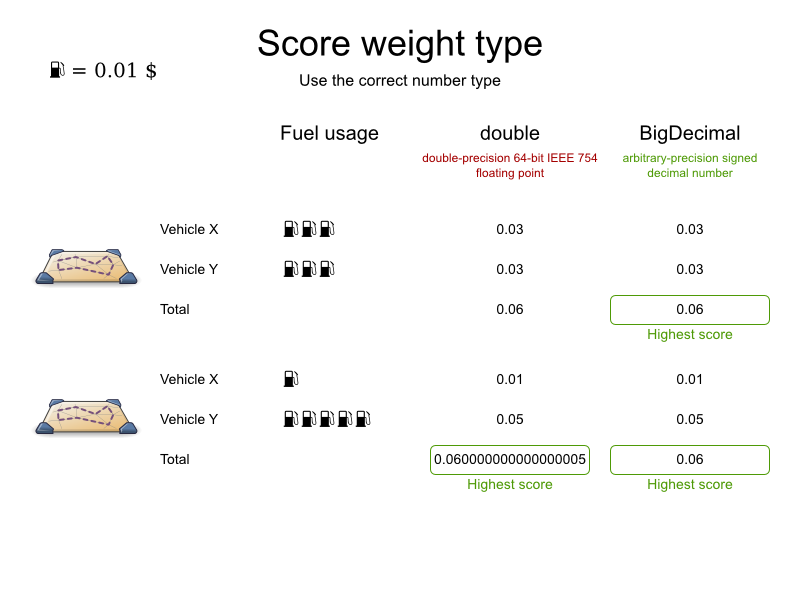

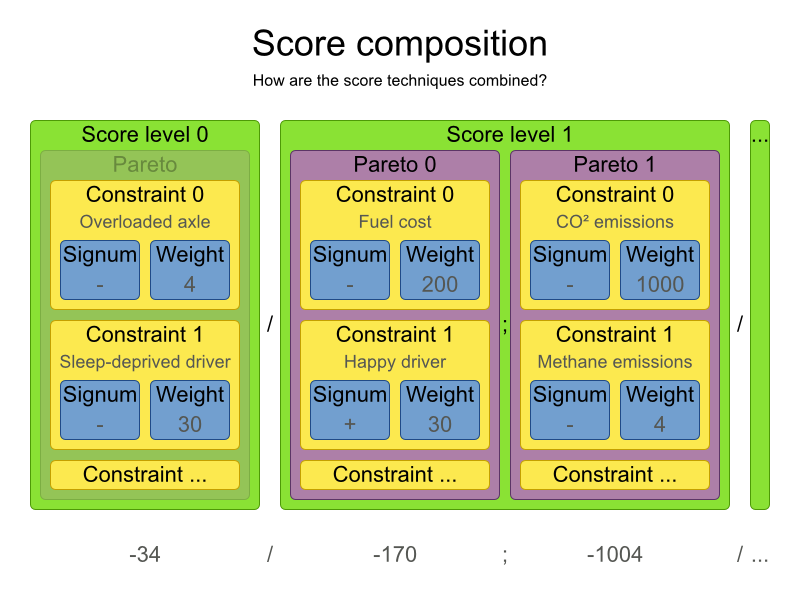

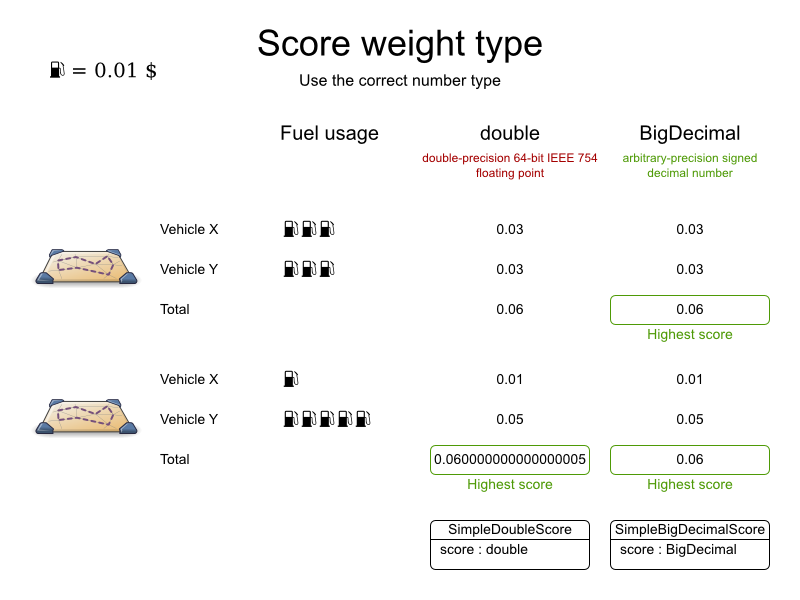

Score calculation advanced

Mirror principle

• -1 for every pair of queens that can attack each other
• +1 for every pair of queens that cannot attack each other
• ⇒ Same optimal solution

• Different initializingScoreTrend
• ⇒ possibly different performance
• Default to negative constraints (if it feels natural)

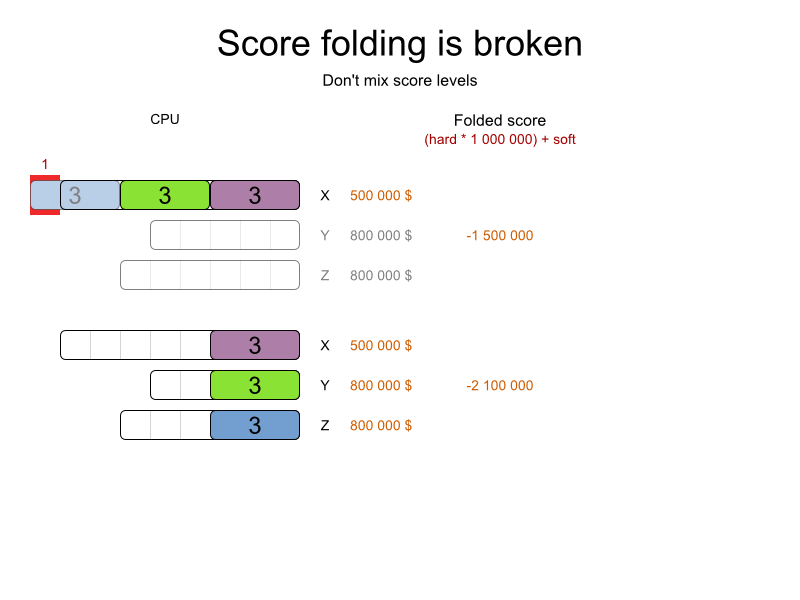

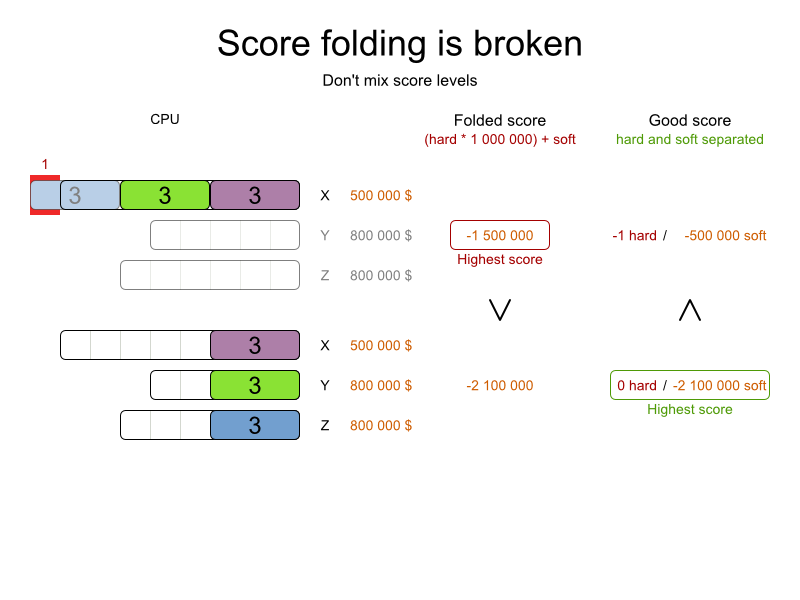

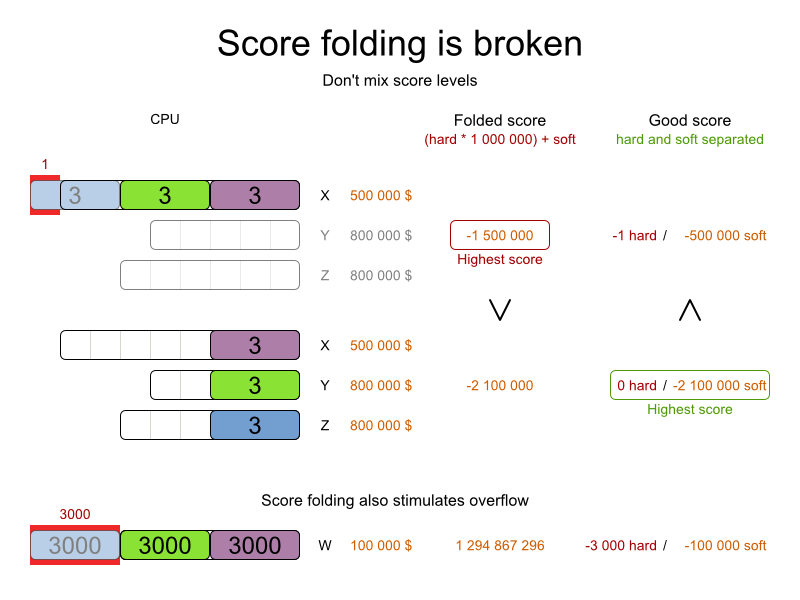

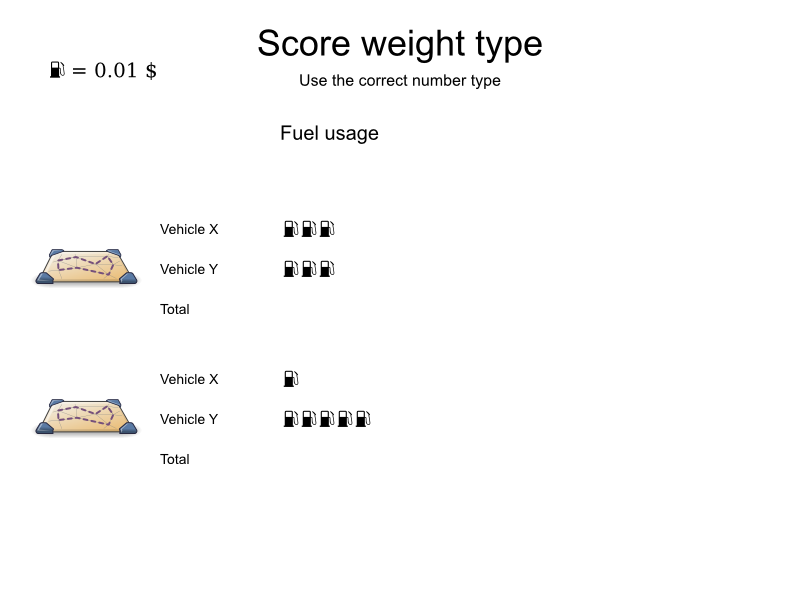

Bendable score

• Any number of score levels
• Decide at bootstrap time

Reuse existing business code

public class Nurse {

  private Country country;

  public boolean isHoliday(Date date) {
    if (country == Country.BE) {
      // true if date is 1-JAN, easter monday, 21-JUL, ...
    } else if (country == Country.FR) {
      // true if date is 1-JAN, easter monday, 14-JUL, ...
    } else if (...) {
      ...
    }
    ...
  }

}

Training lab1*

Do we need to implement all constraints?

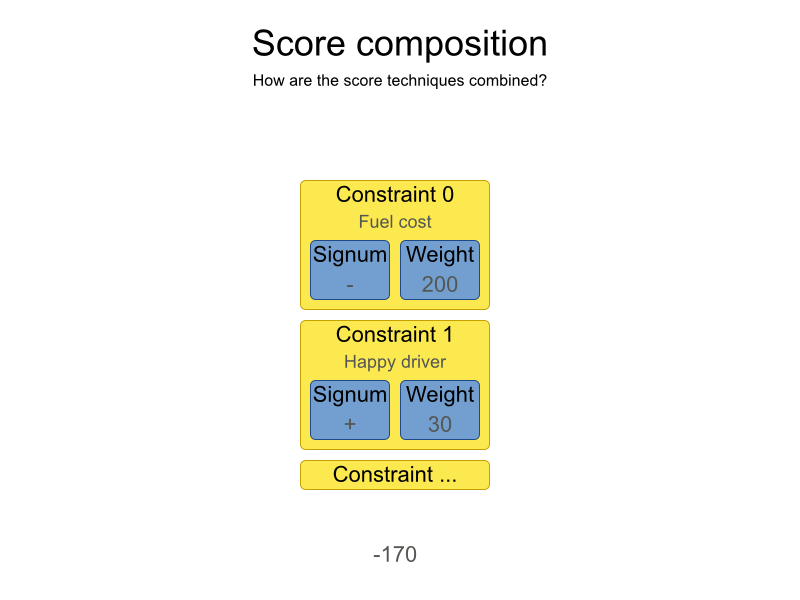

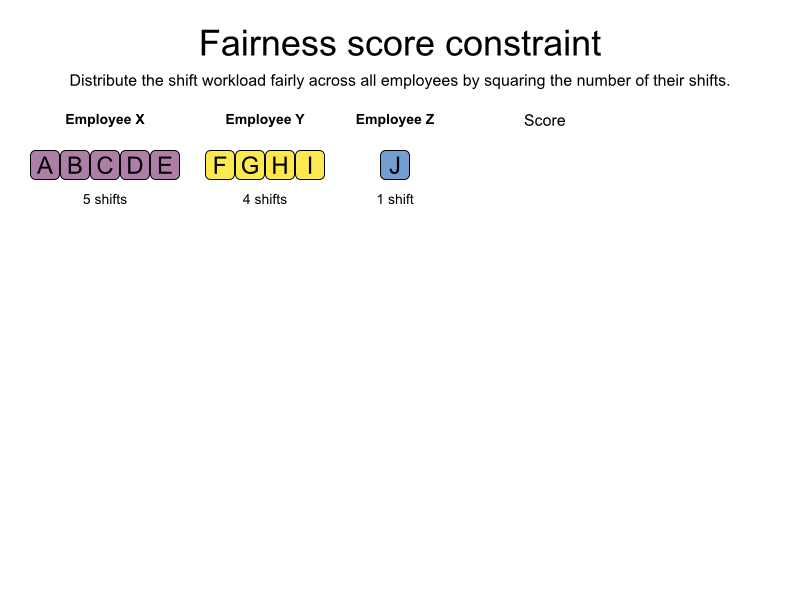

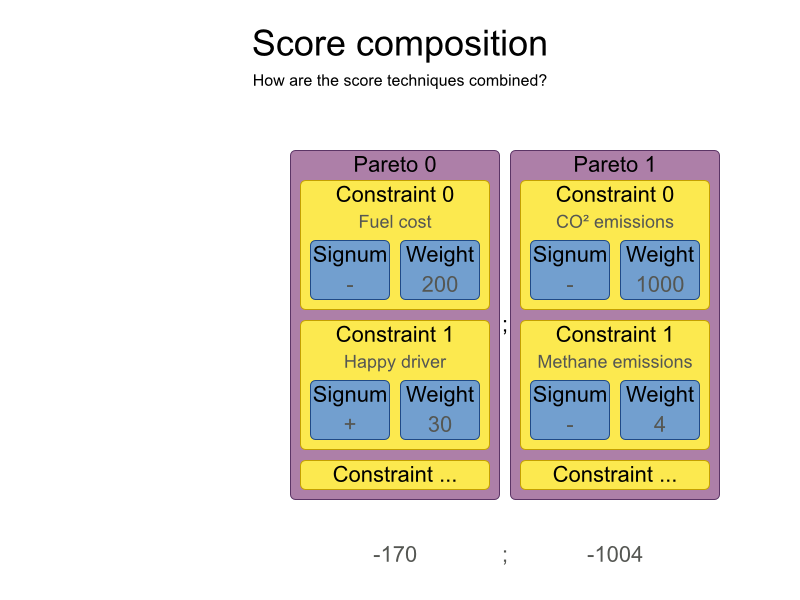

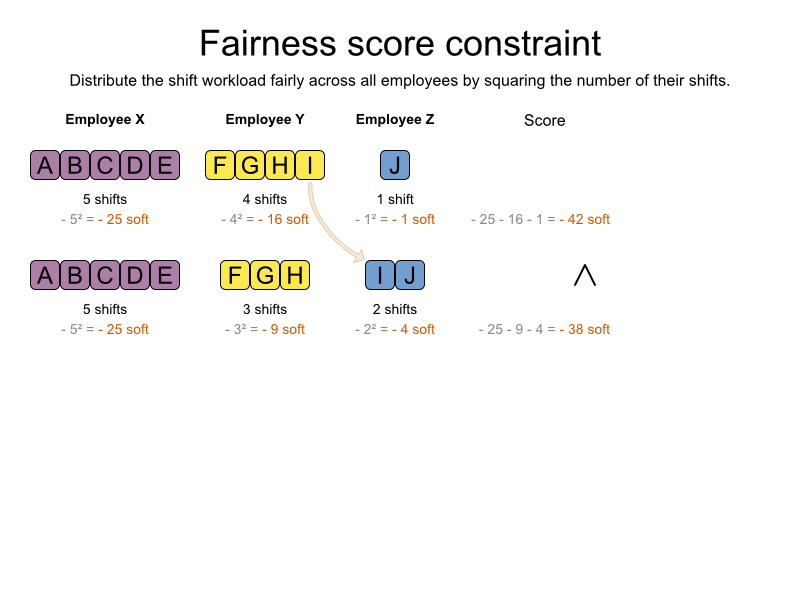

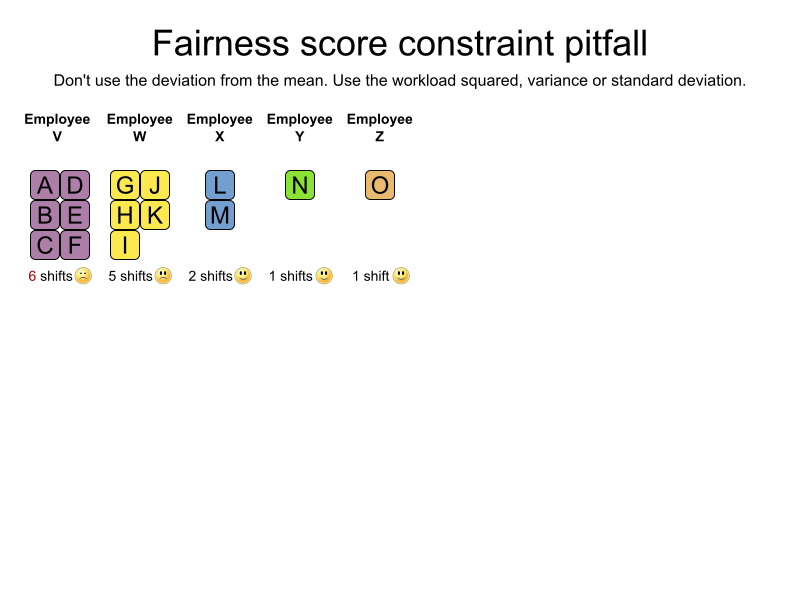

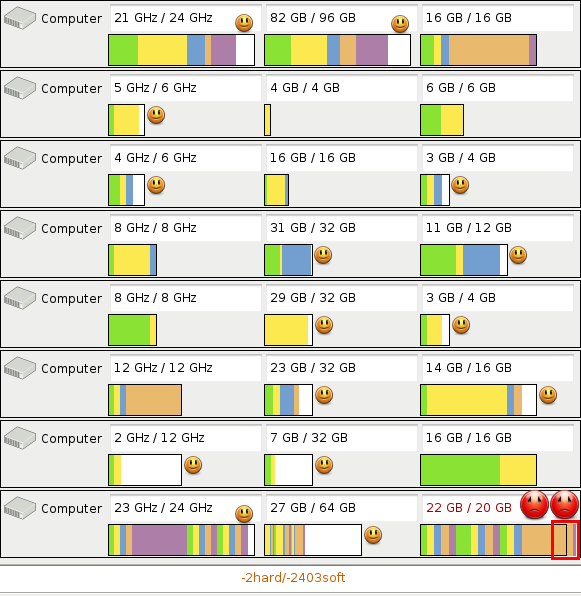

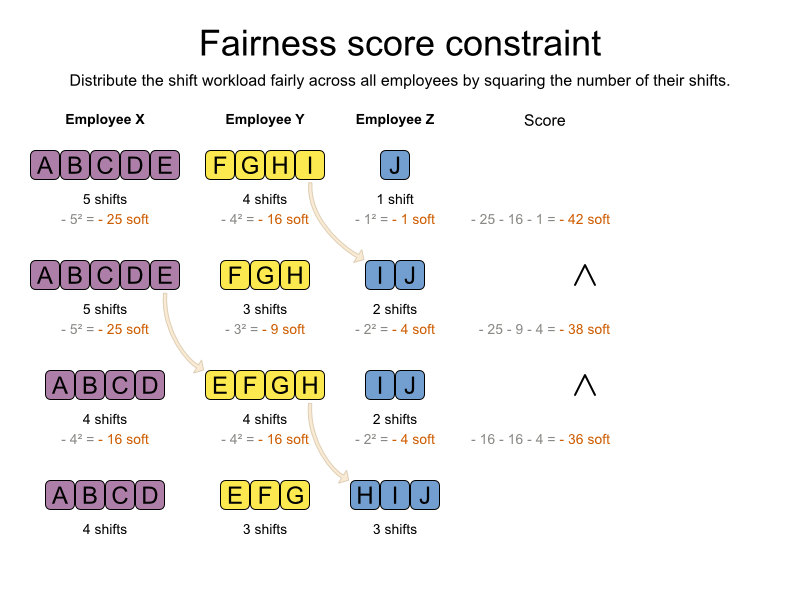

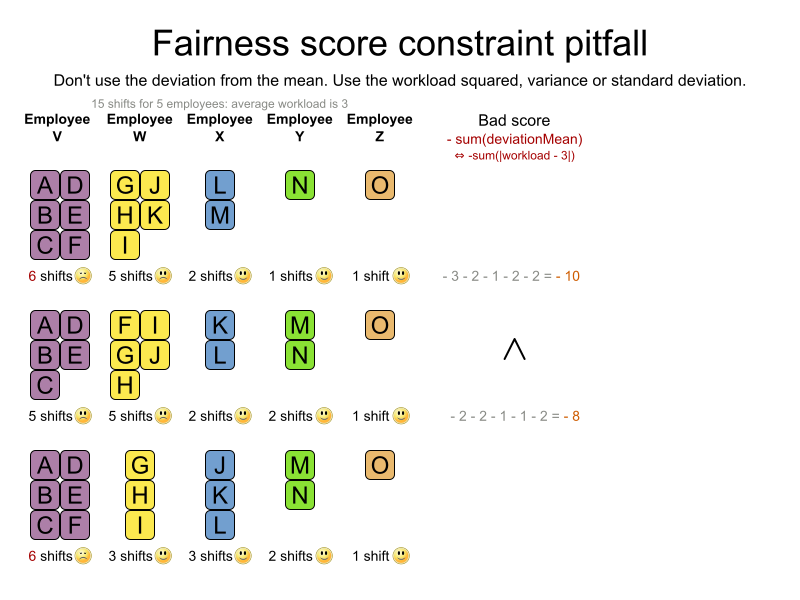

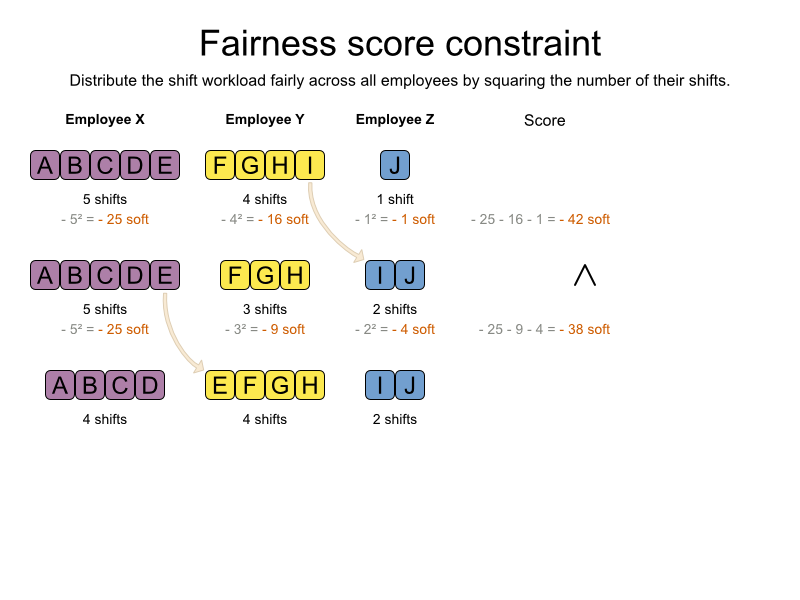

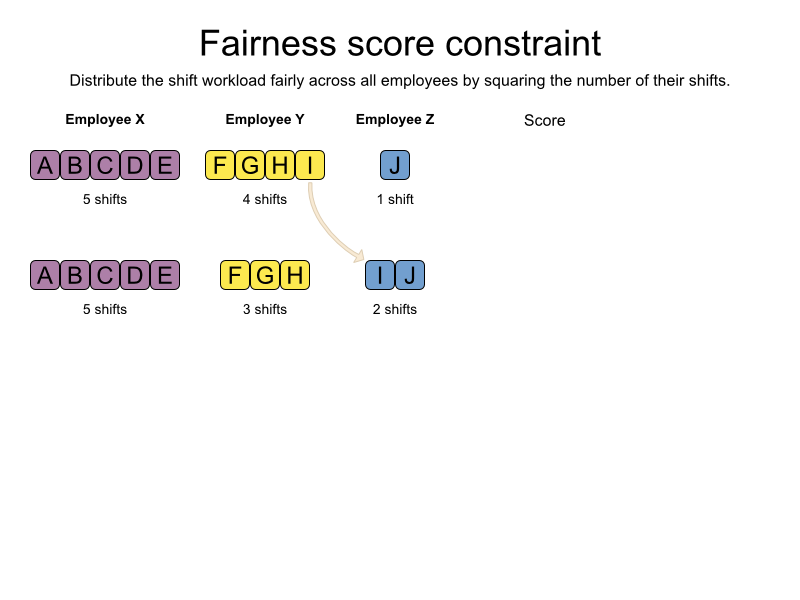

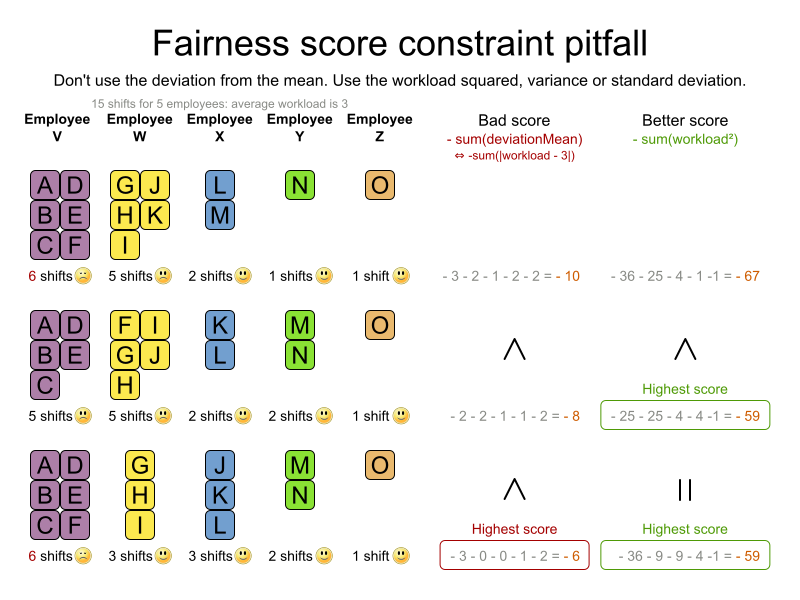

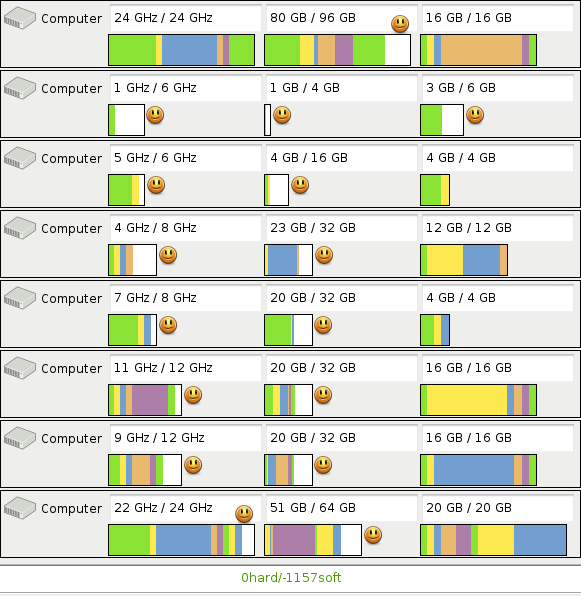

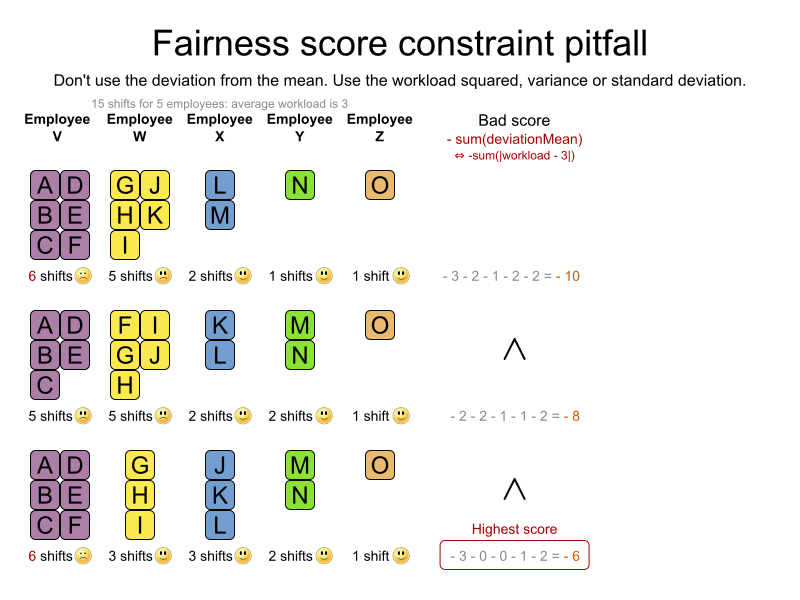

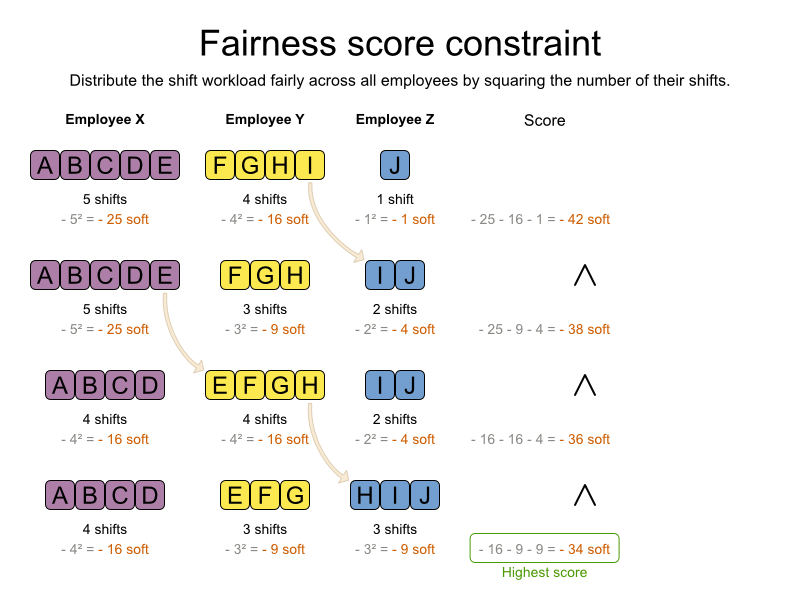

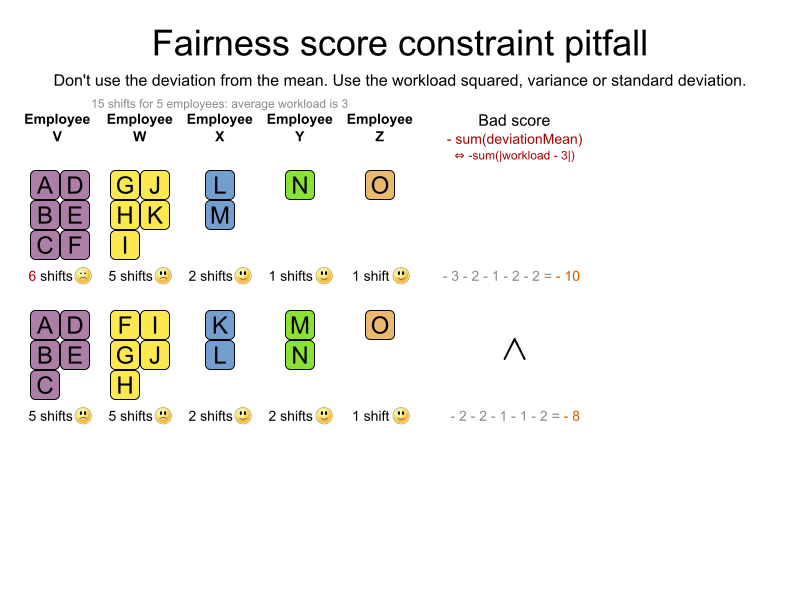

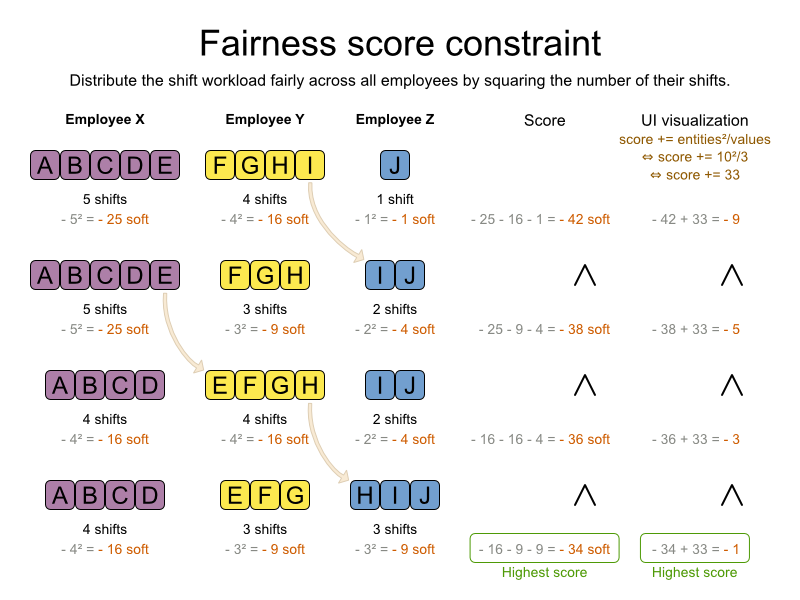

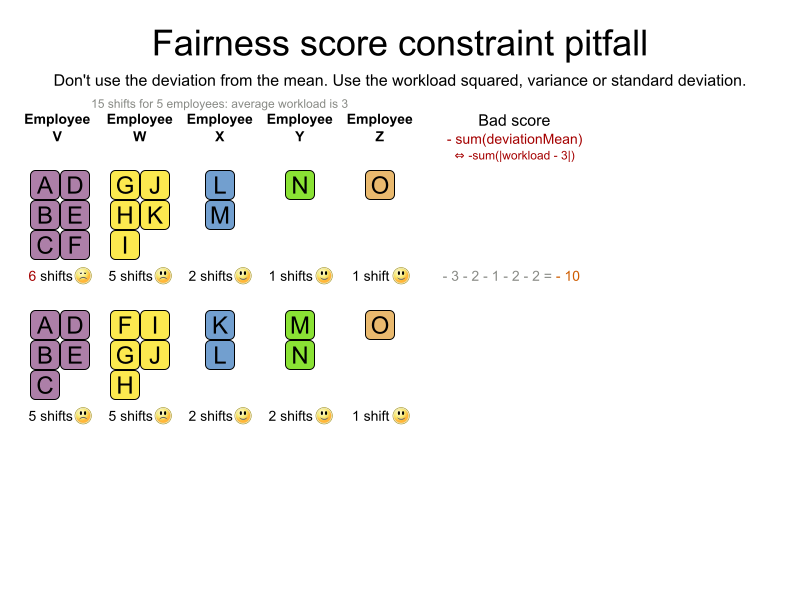

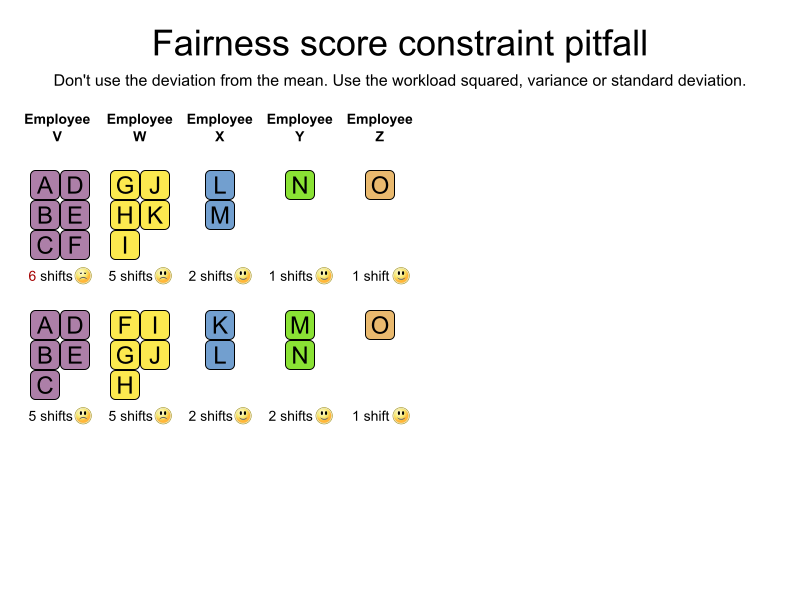

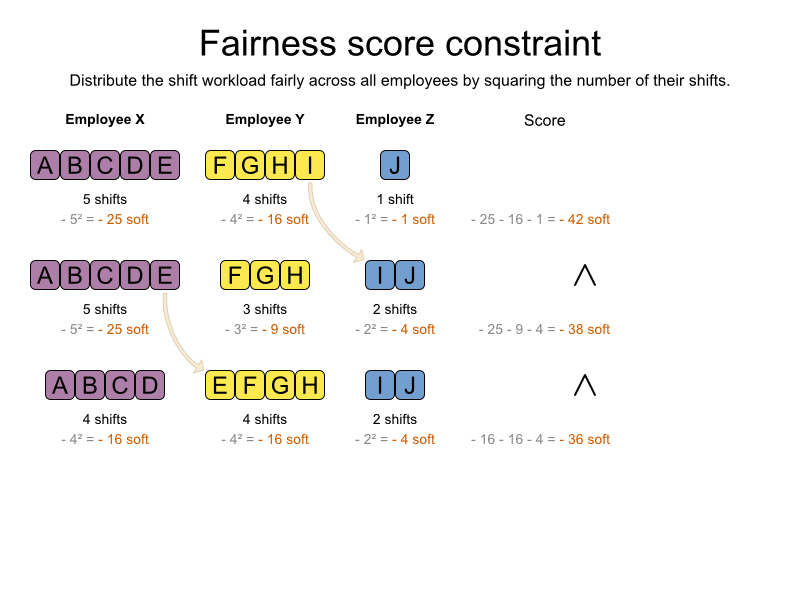

Fairness/load balancing

Lab: load balancing

• Apply load balancing on FLP
• Remove setupCost and normal distanceCost
• Warehouse capacity hard constraint still applies!
• Optional: load balance relative to warehouse capacity
• Optional: use the distanceCost as the load in loading balancing

Tennis club scheduling

Demo

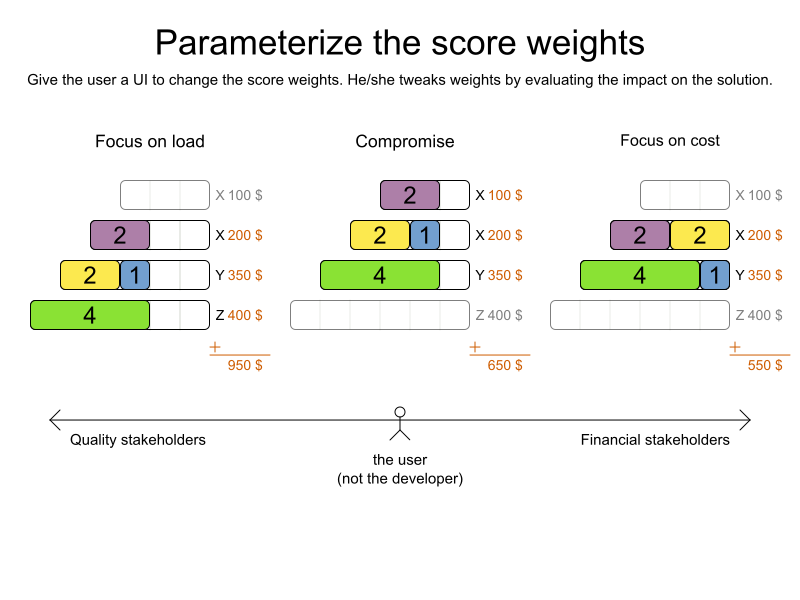

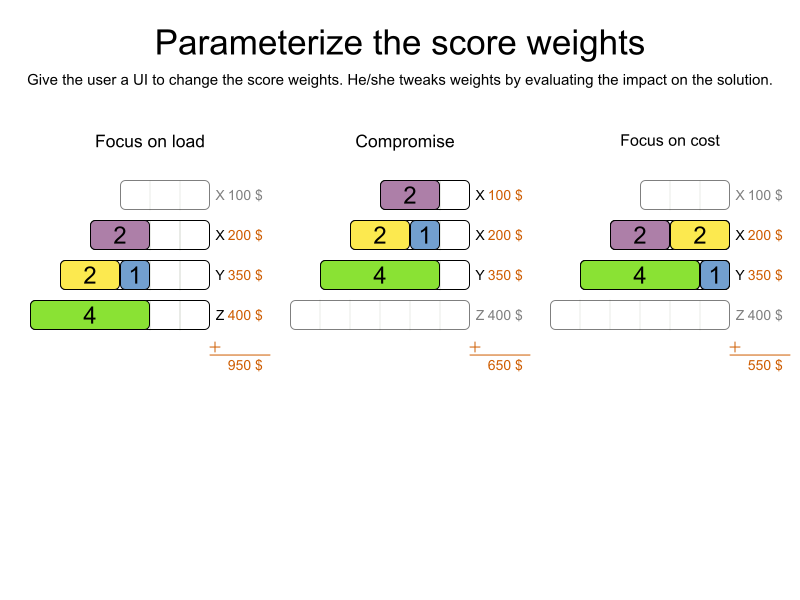

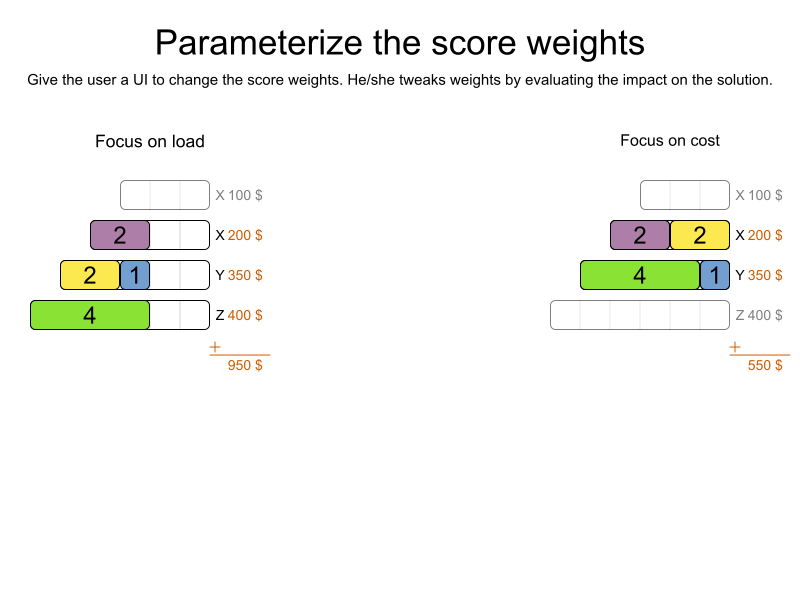

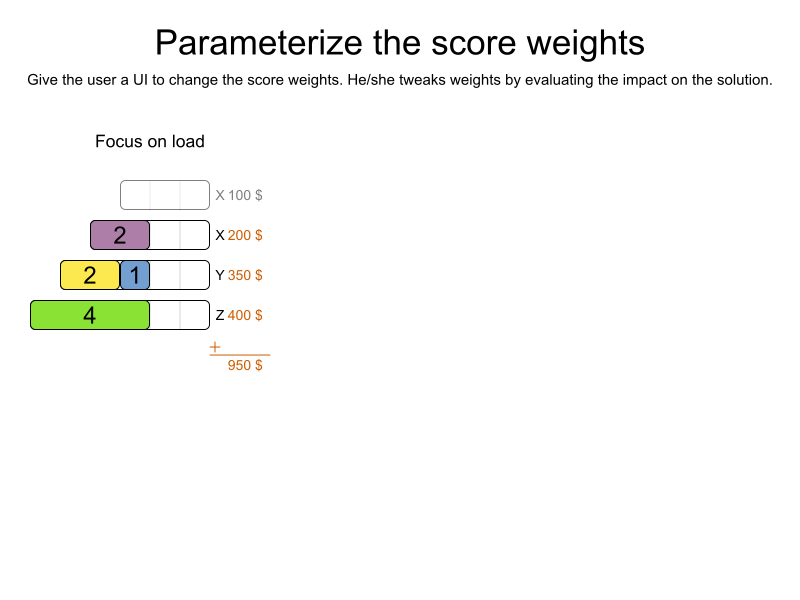

ConstraintConfiguration

Exam timetabling

Demo

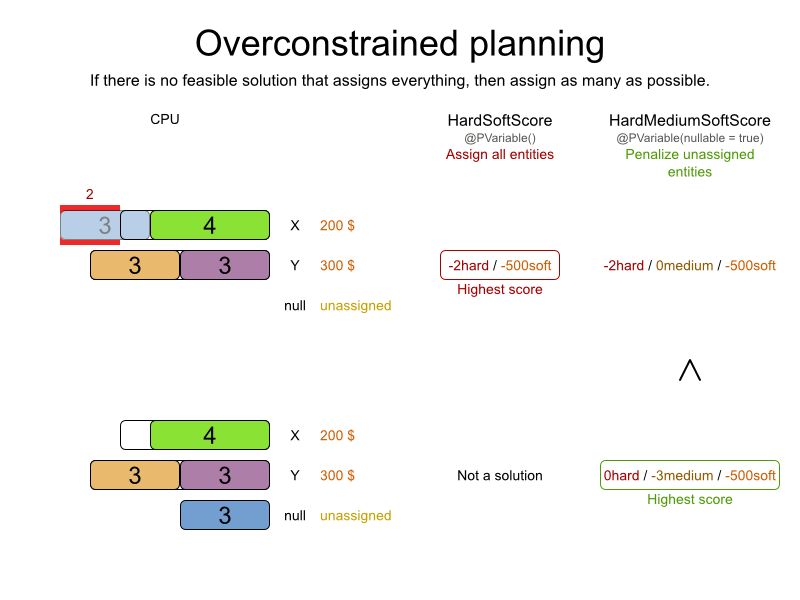

Overconstrained planning

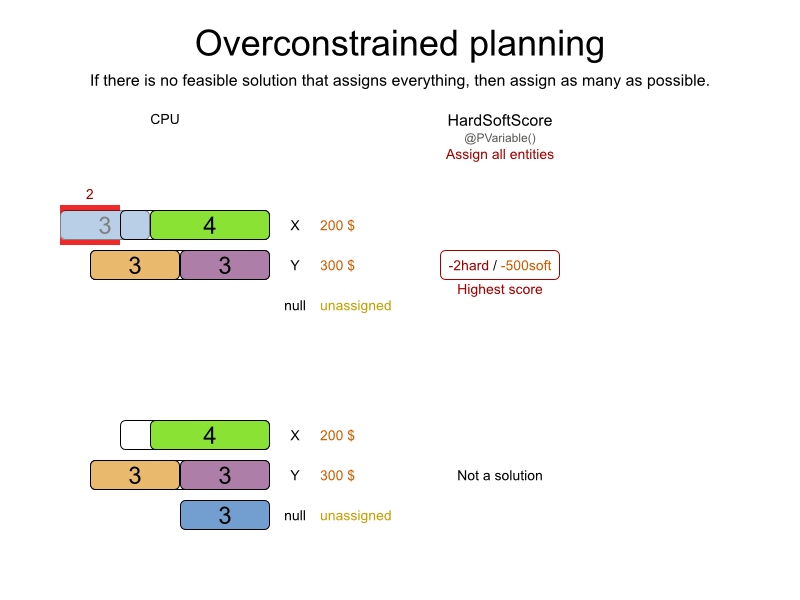

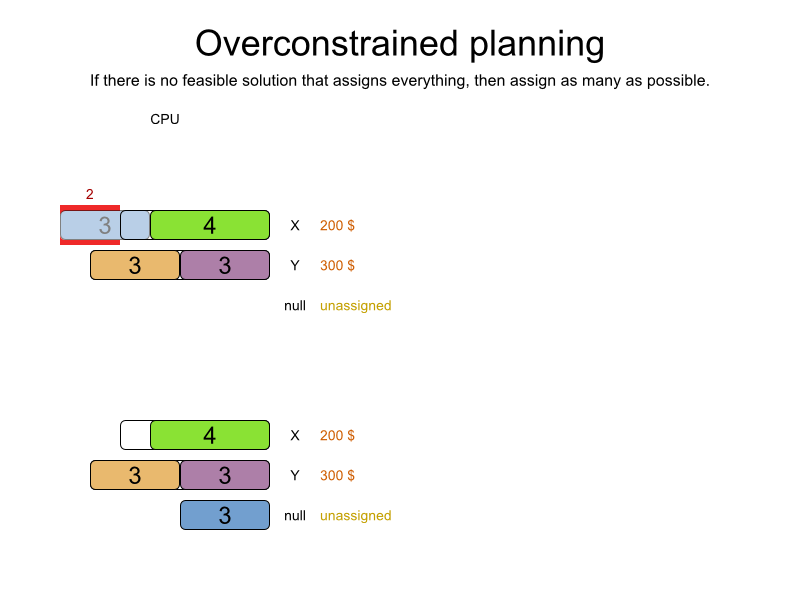

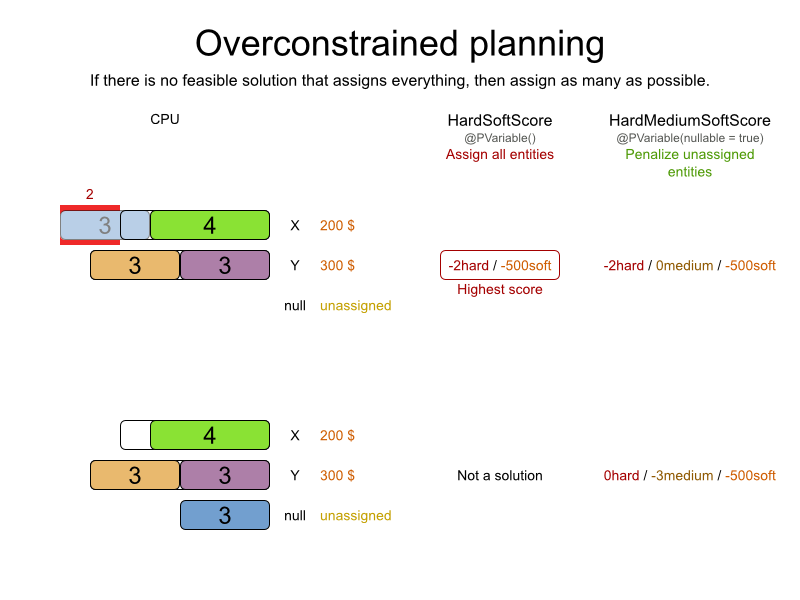

Overconstrained planning

• @PlanningVariable(nullable=true)
• Extra score level
• Feasible > Assigned > Cheap

Hospital bed planning

Demo

Lab: overconstrained FLP

• Multiple all demands by 10
• Solve it but don't break hard constraints

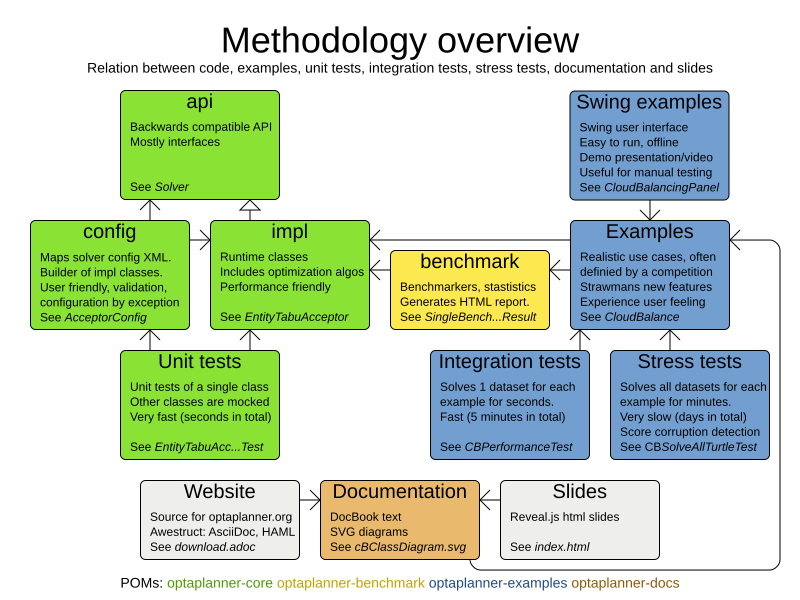

Methodology

Config objects

• Programmatic configuration
• No XSD yet

Termination

• Normal termination types
• Asynchronous termination from another thread

Lab: programmatic configuration

• Change code in CloudBalancingApp.createSolver()
• Ask termination time with
  String s = JOptionPane.showInputDialog(
null, "How many seconds?", "");

Drools integration

ScoreDirectorFactoryConfig

• setKieBase(...)

Dinner party

Demo

Conference scheduling

Demo

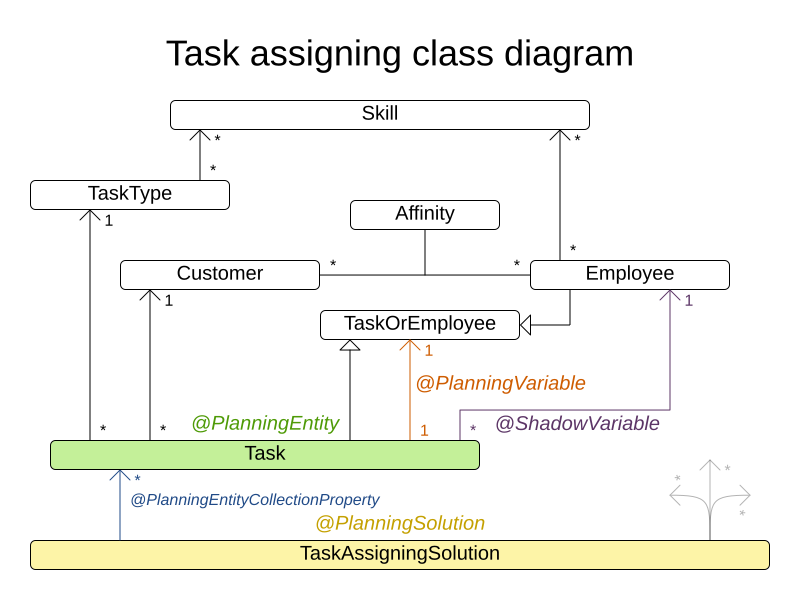

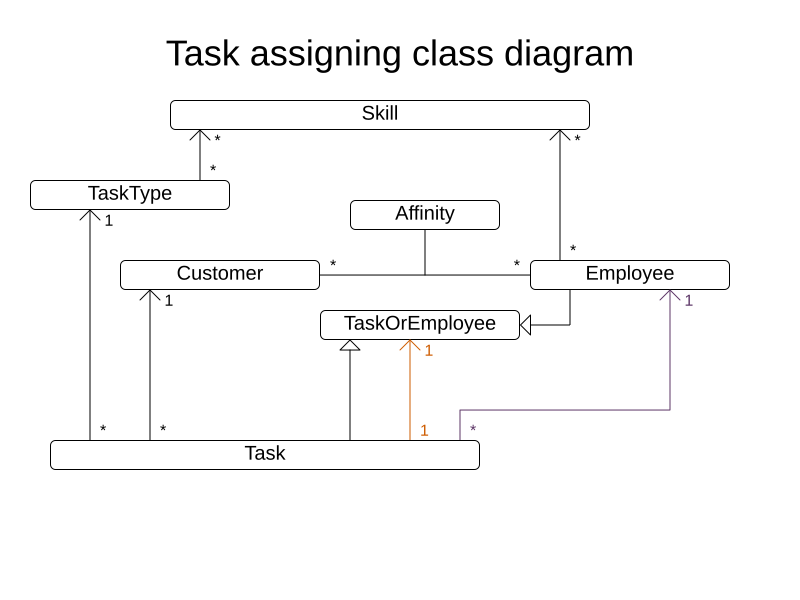

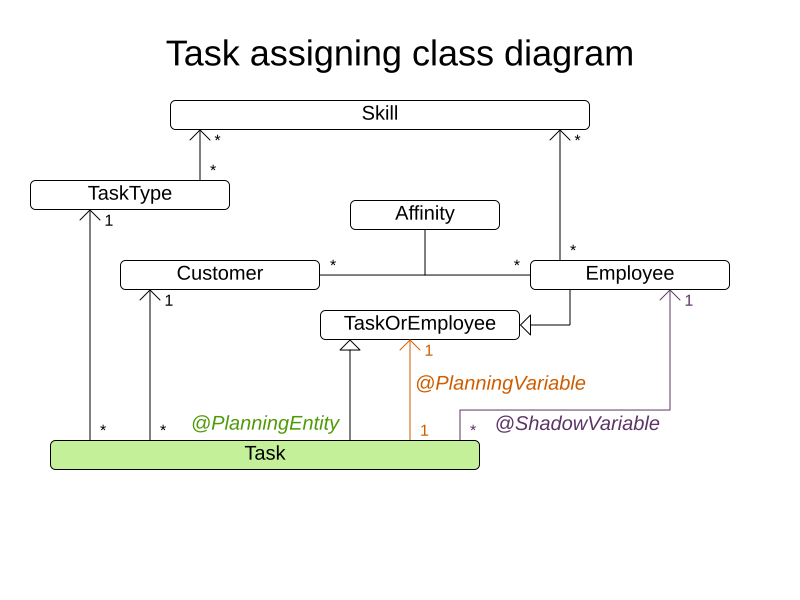

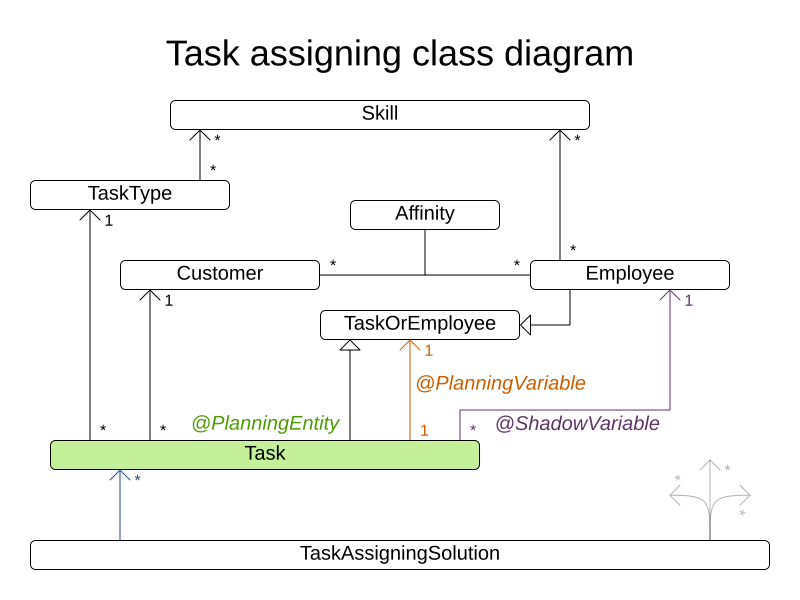

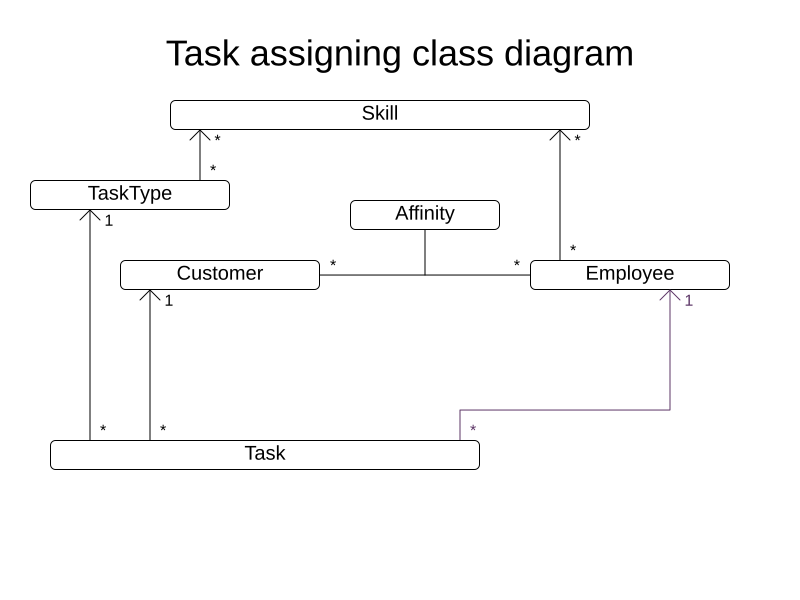

Task assigning

Demo

Agenda: Training session 3

• Logging and scopes
• Benchmarker
• Construction Heuristics
• Community

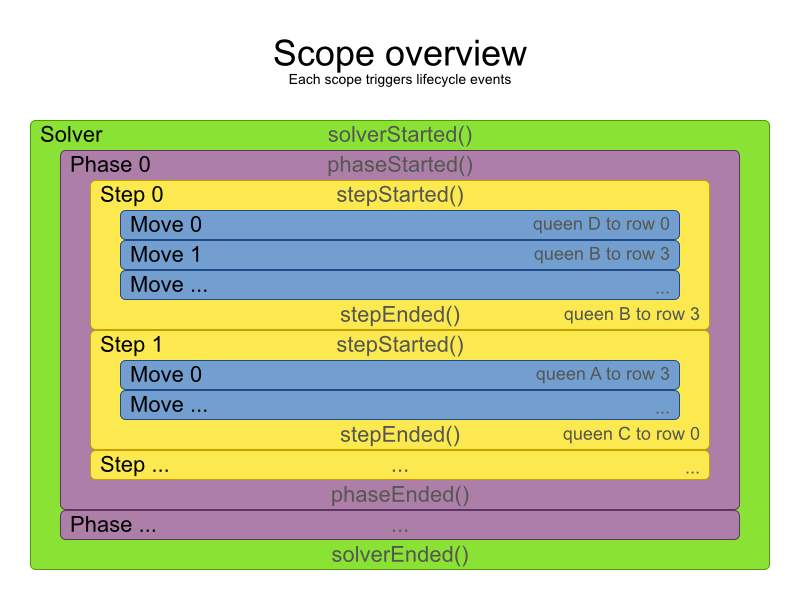

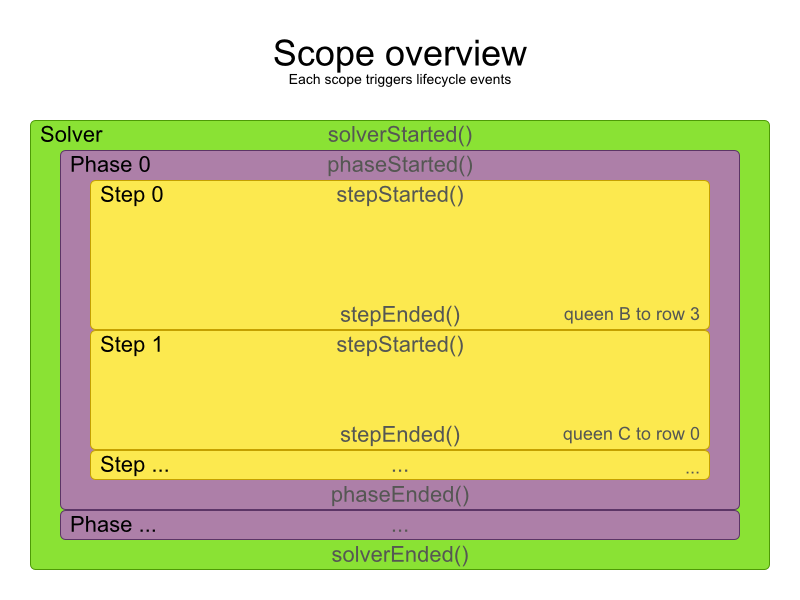

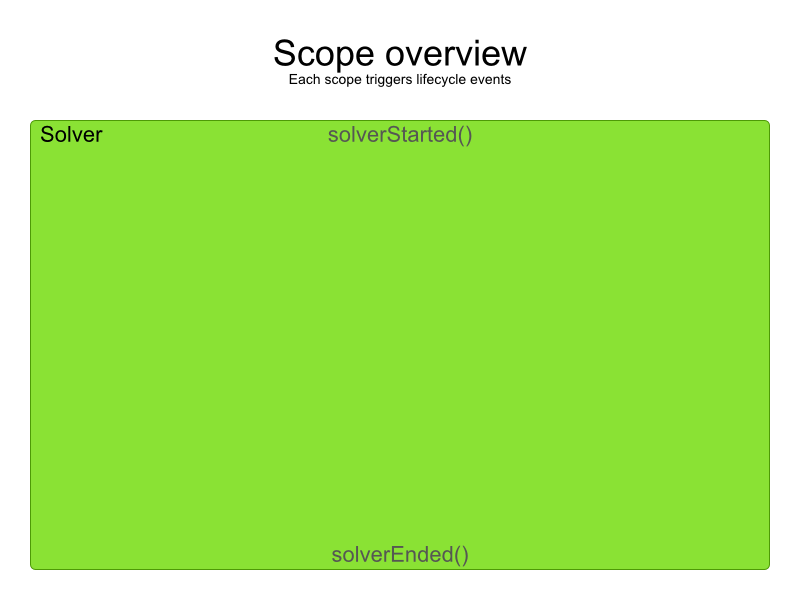

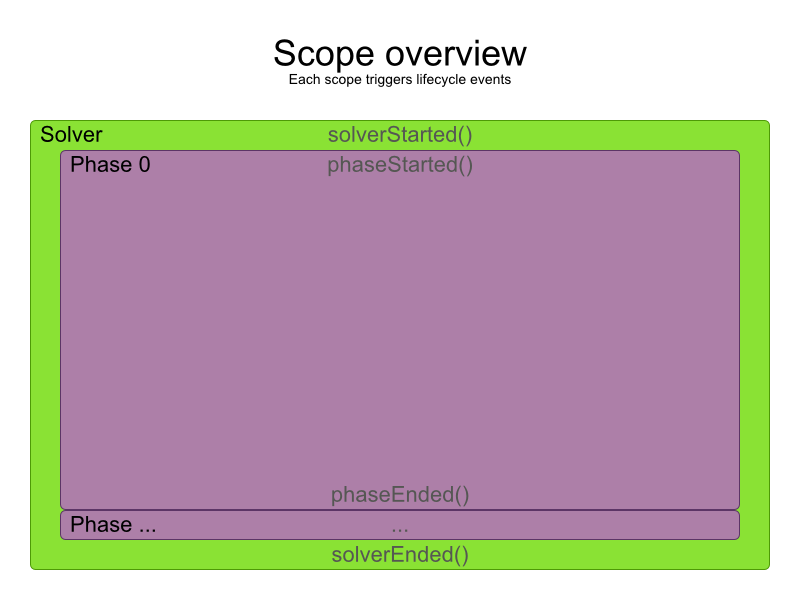

Logging

Reproducibility is gold

• Debugging
• Support
• Demos
• Your sanity

Reproducibility pitfalls

• Random calls that don't use the seeded Random
• HashMap in Solution => Use LinkedHashMap
• HashSet in Solution => Use LinkedHashSet
• Time gradient algorithms (Simulated Annealing)
• Work stealing (EnvironmentMode)

Logging levels

What is the solver doing?

Lab: Logging

• Change logback.xml
• Try info, debug and trace
• Optional: open system monitor. What do you see?
• Optional: open VisualVM. What do you see?

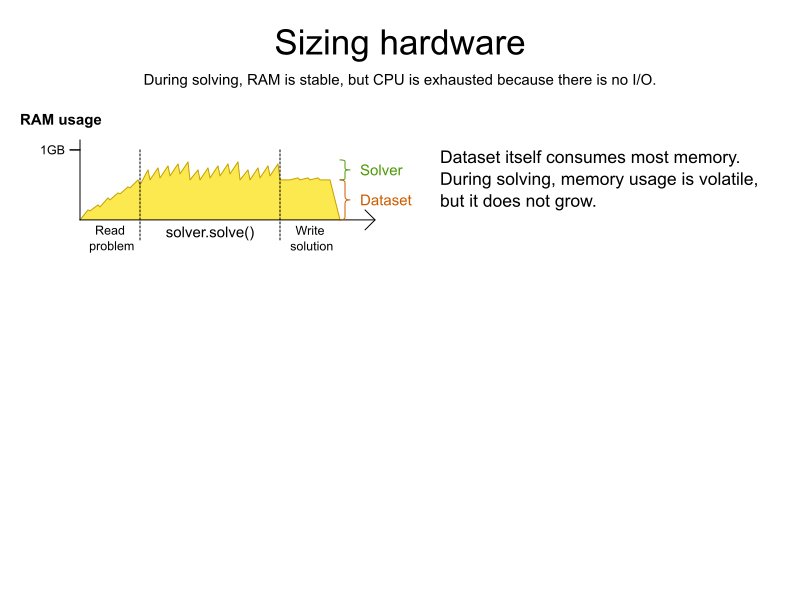

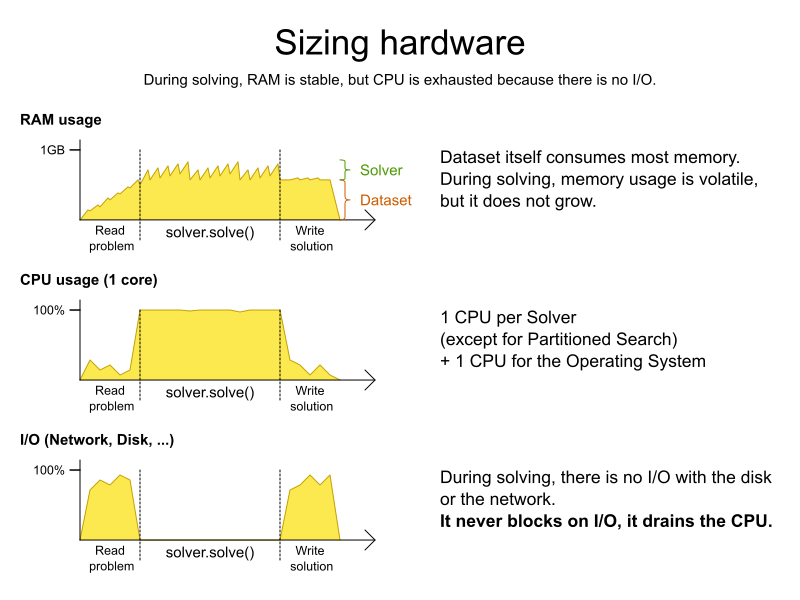

OptaPlanner hogs a CPU core

• No IO. OptaPlanner is not a webserver!
  ⇒ Multithreading gain is lower.

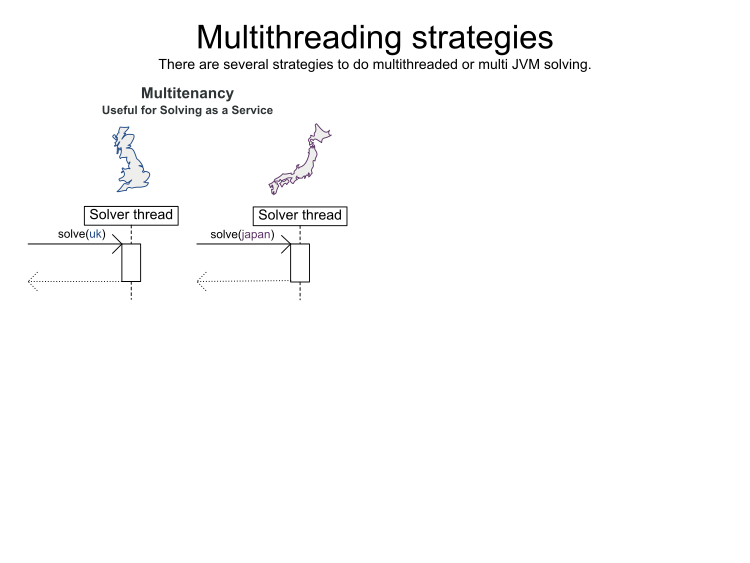

• Multithreaded solving is available now (to hog all your CPU cores)
  ⇔ it does not break incremental score calculation
• Memory is stable (except for Exhaustive Search)

Score calculation speed

• How many inner iterations per second?
• < 1000 ⇒ Too slow!
• > 10000 ⇒ OK

Lab: Score calculation speed

• Comment out constraints
• How does the speed change?
• Which constraint is the slowest? Is there a bottleneck?

What is the best optimization algorithm?

Optimization algorithms

• Exhaustive Search
  • Brute Force
  • Branch And Bound
• Construction Heuristics
  • First Fit (Decreasing)
  • Weakest/Strongest Fit (Decreasing)
  • Cheapest Insertion
• Metaheuristics (Local Search, ...)
  • Hill Climbing
  • Tabu Search
  • Strategic Oscillation Tabu Search
  • Simulated Annealing
  • Late Acceptance
  • Step Counting Hill Climbing

Too much choice

Which one do I need to use?

Good answer: First Fit Decreasing with Late Acceptance

Better answer: try them all and use the best one

Benchmarker

Benchmarker report

Demo and statistics overview

Summary statistics

• Always generated
• Only covers the end state

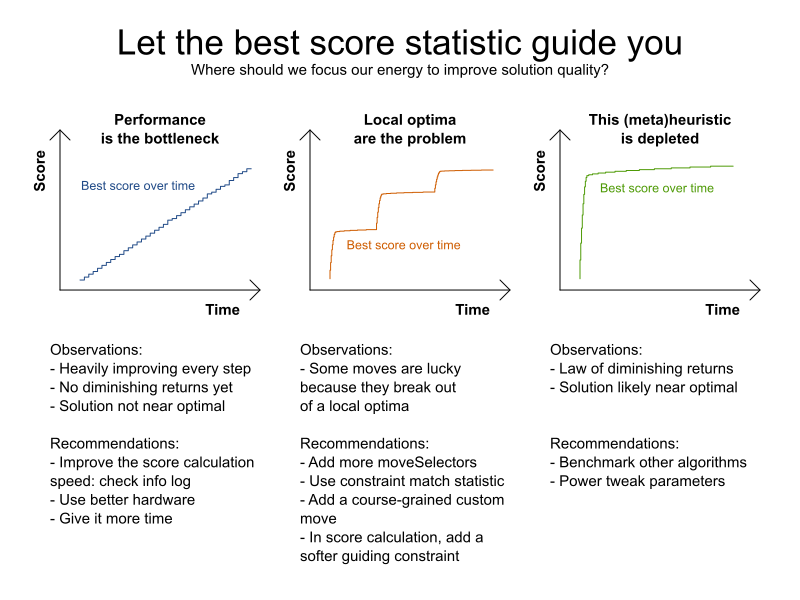

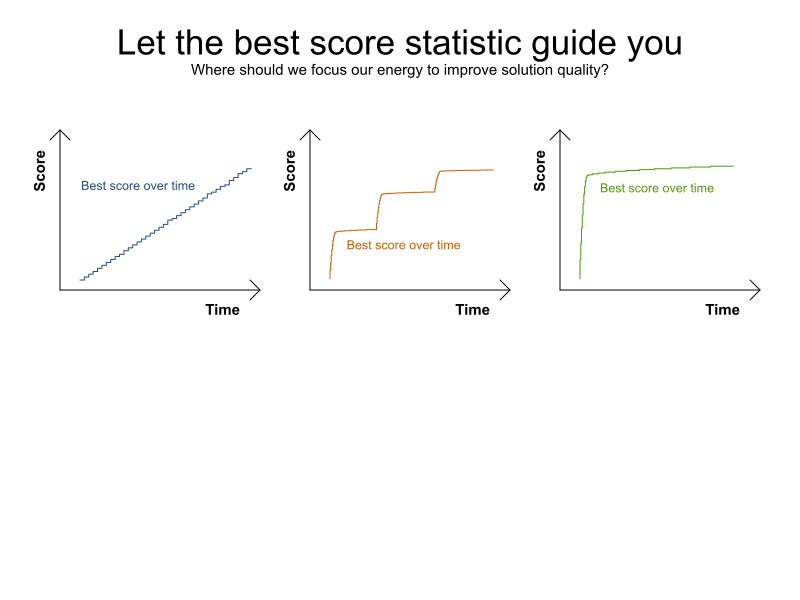

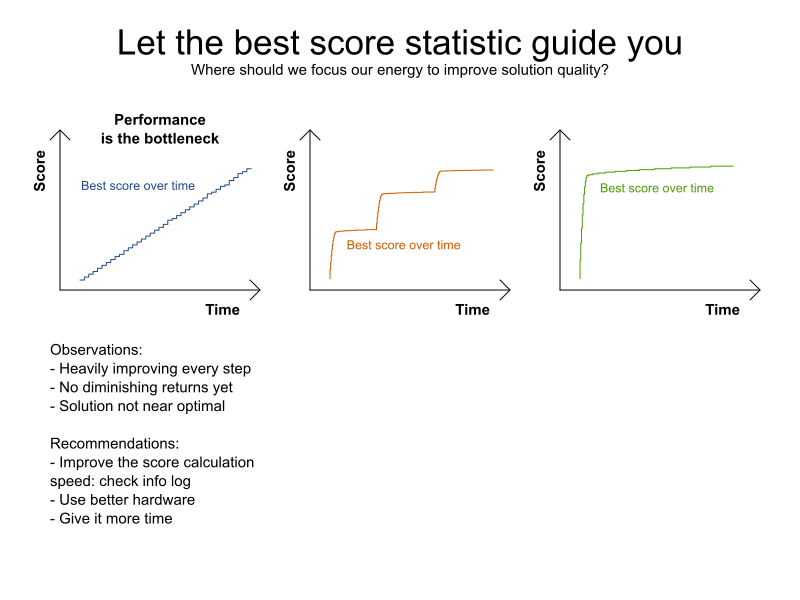

Problem statistics

• Per problem dataset
• Not generated by default
• Impact execution (observer effect)
• Covers state during solving too
• Available as CSV file

Single statistics

• Per problem dataset and solver configuration
• Not generated by default
• Impact execution (observer effect)
• Covers state during solving too
• Available as CSV file

Benchmarker pitfalls

• JVM warm up
• Parallel benchmarking

Lab Benchmarker

• On Cloud Balancing
• Compare Brute Force with Branch And Bound
• Or different score directors
• Use 30 second termination

Blueprints

Demo

Matrix benchmarking

Demo

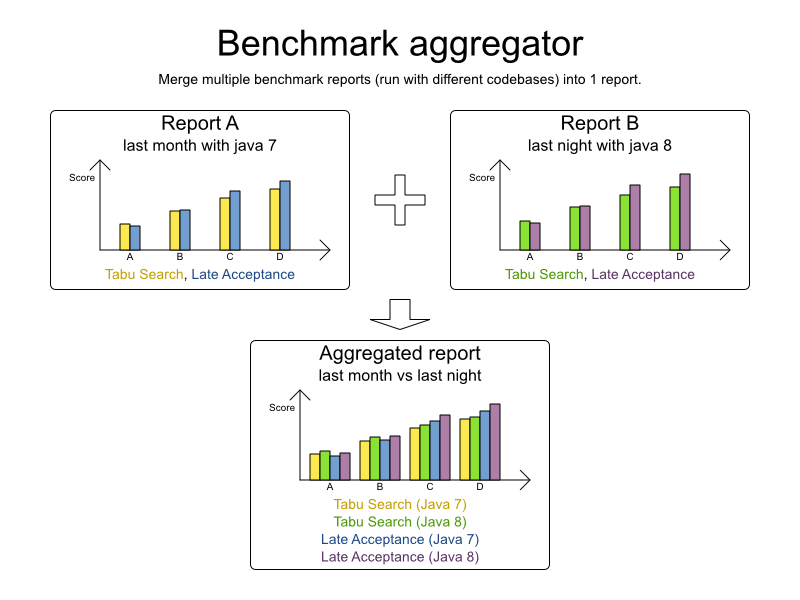

Benchmark aggregator

Lab BenchmarkAggregator

• Run the same benchmark twice
• With different log levels or JDK
• Aggregate report

Construction Heuristics

First Fit config

<solver>
  ...

  <constructionHeuristic>
    <constructionHeuristicType>FIRST_FIT</constructionHeuristicType>
  </constructionHeuristic>
</solver>

First Fit scalability

First Fit results

All hard constraints satisfied: maintenance cost shown

First Fit Decreasing config

<solver>
  ...

  <constructionHeuristic>
    <constructionHeuristicType>FIRST_FIT_DECREASING</constructionHeuristicType>
  </constructionHeuristic>
</solver>

DifficultyComparator

public class ProcessDifficultyComparator
    implements Comparator<Process> {
  public int compare(Process a, Process b) {
    // Compare on requiredCpuPower * requiredMemory
    //     * requiredNetworkBandwidth
  }
}

@PlanningEntity(difficultyComparatorClass
    = ProcessDifficultyComparator.class)
public class Process  {
  ...
}

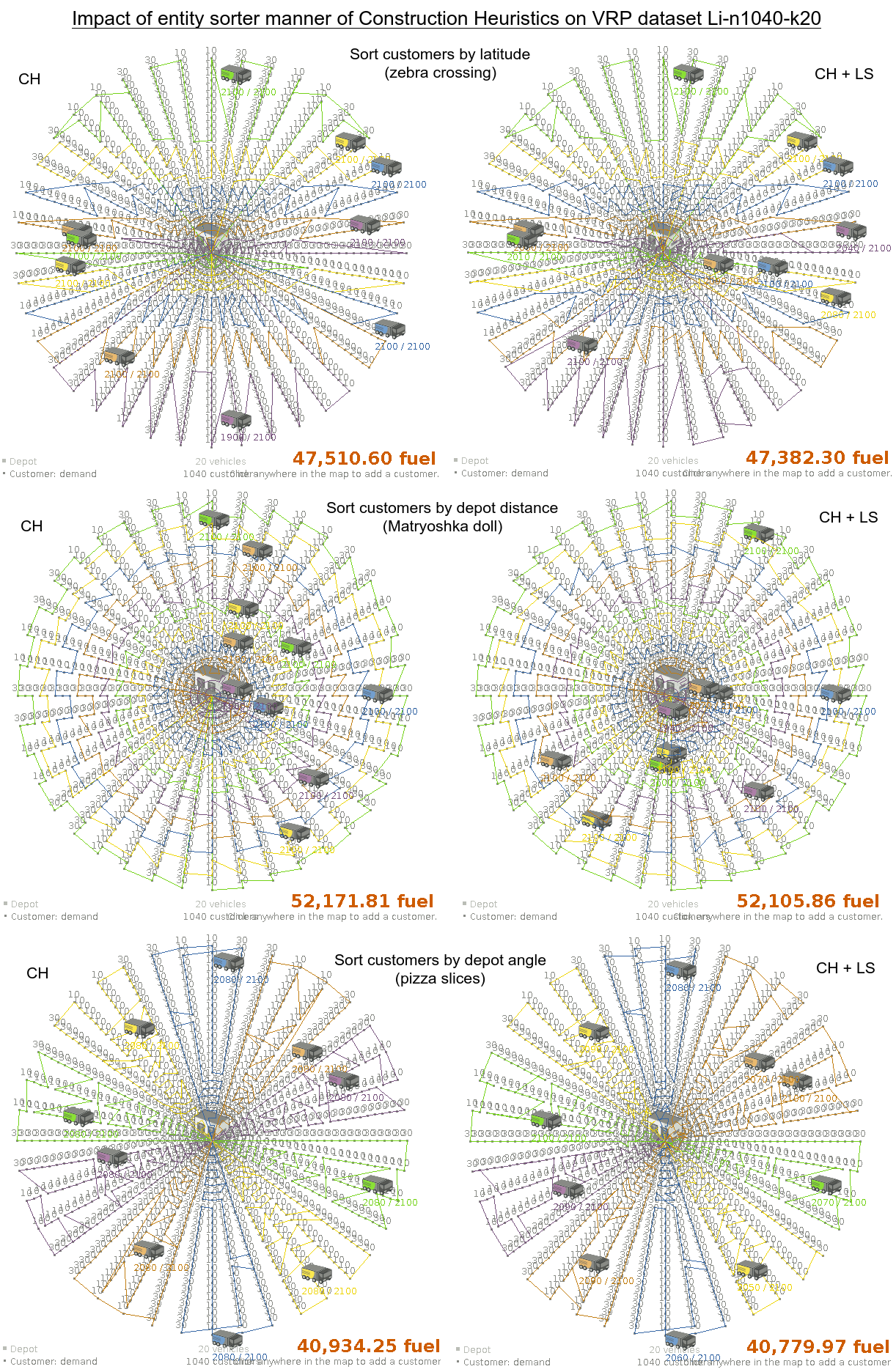

First Fit Decreasing scalability

First Fit Decreasing results

Weakest Fit (Decreasing)

Strongest Fit (Decreasing)

Cheapest insertion

Regret insertion

Not yet supported

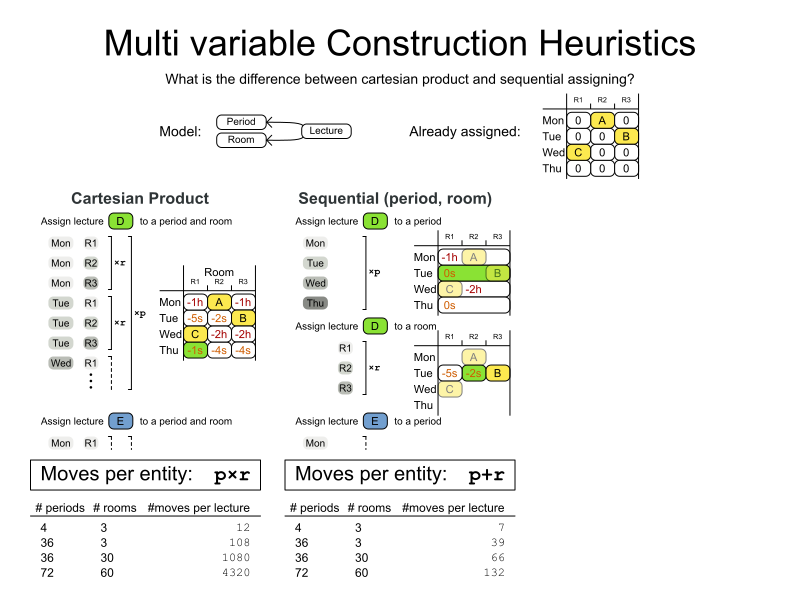

Scaling Construction Heuristics

If the Construction Heuristic takes too long, Local Search has too little time

Community

Build from source

• https://github.com/kiegroup/optaplanner

$ git clone https://github.com/kiegroup/optaplanner.git
...
$ cd optaplanner
$ mvn clean install -DskipTests
...
$ cd optaplanner-examples
$ mvn exec:java
...

Community publicity

• Speaking at an event?
• Wrote a public article or case study?
• Made a video?

Add it on optaplanner.org

How? By sending a Pull Request to add it in the yml file (or just mail me).

Steal these slides

• Most slides are images of 800*600
• SVG sources are in
  https://github.com/kiegroup/optaplanner/tree/main/optaplanner-docs/src/modules/ROOT/images
• Use Inkscape
• Use Tango color palette
• User layers to export a subset
• Demos: see videos

Anyone want to convert to odp/ppt and share?

OptaPlanner HUB

Agenda: Training session 4

• Local Search
• Score traps
• Move selectors
• Custom moves

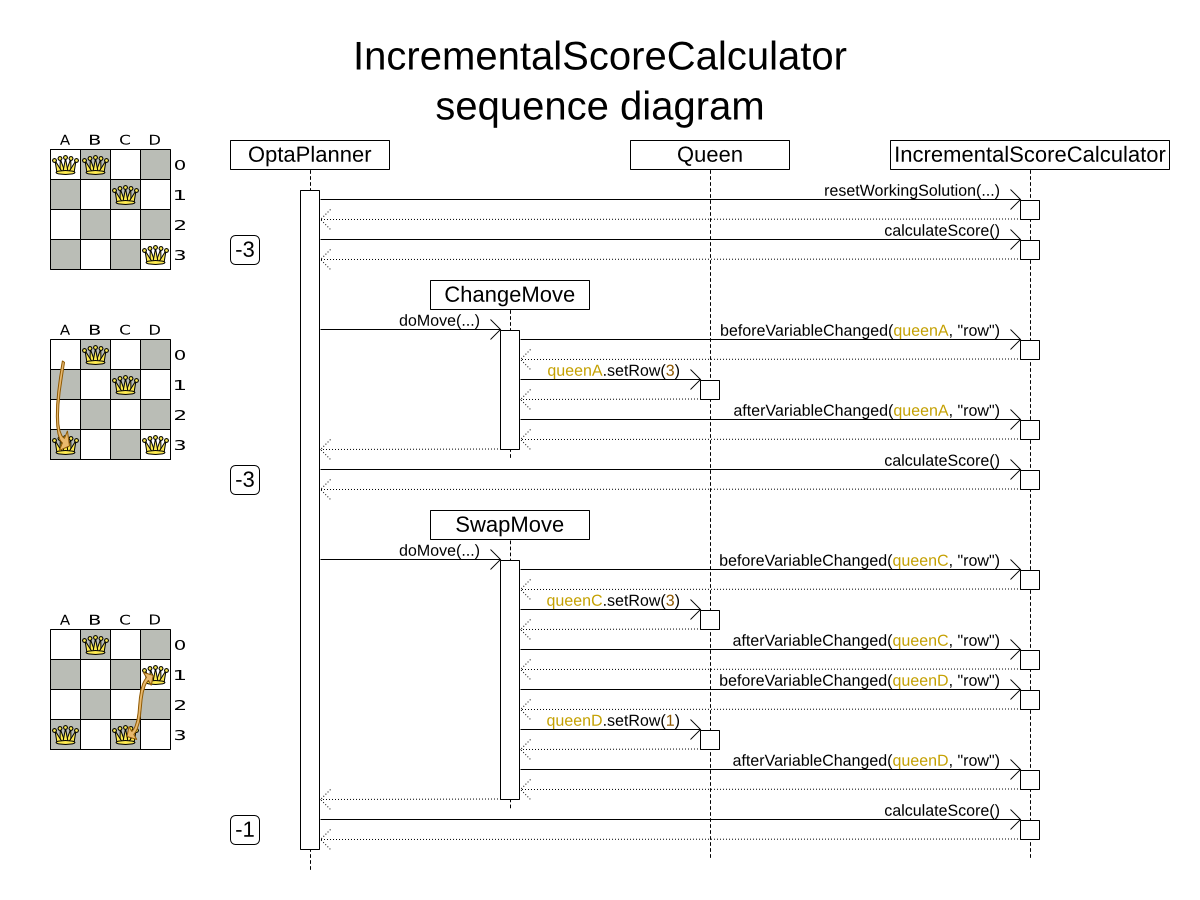

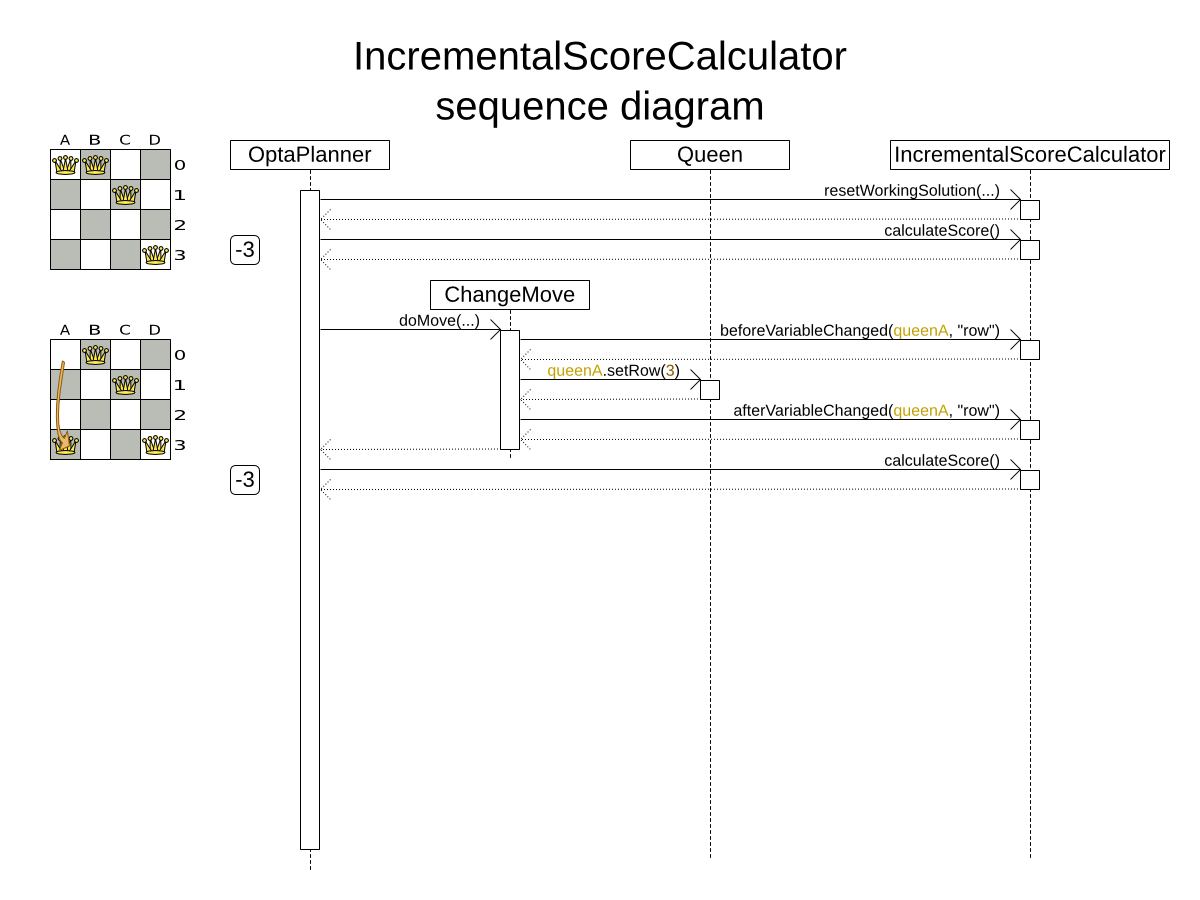

• Incremental score calculation
• Machine Reassignment
• Assertion modes

Local Search

Construction Heuristics + Local Search

<solver>
    ...

    <constructionHeuristic>
        <constructionHeuristicType>FIRST_FIT_DECREASING</constructionHeuristicType>
    </constructionHeuristic>
    <localSearch>
        ...
    <localSearch>
</solver>

Move types

• Change move

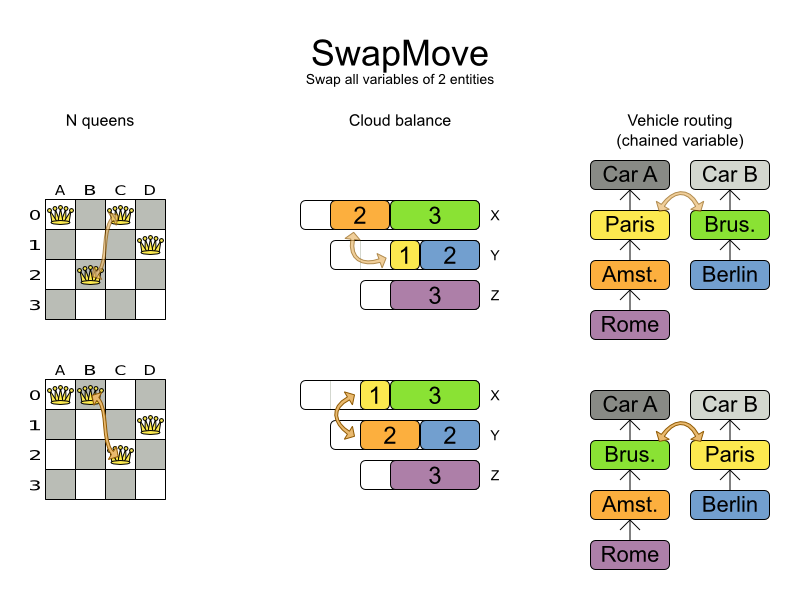

• Swap move
• ...

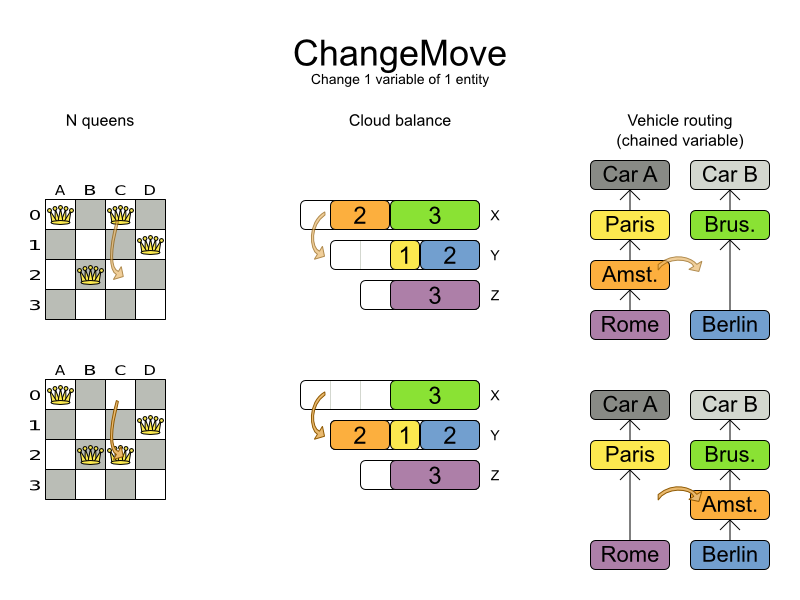

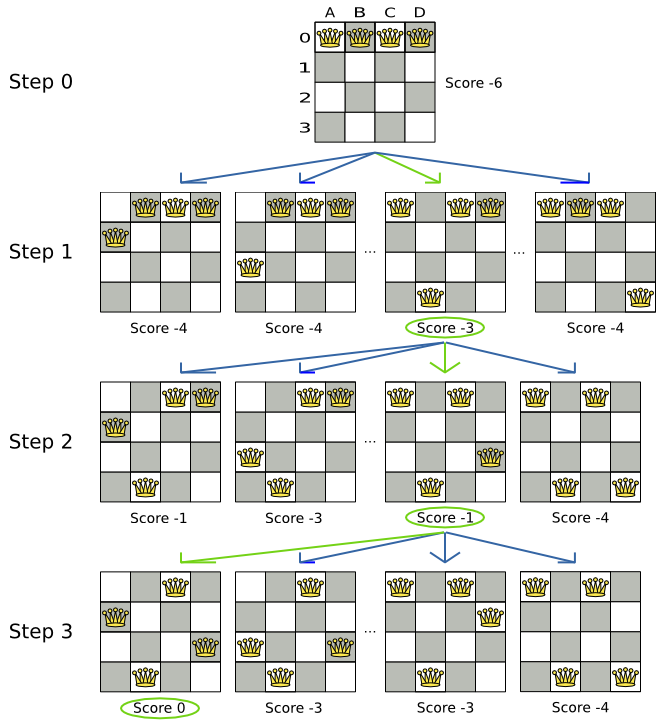

All change moves

n	# moves	# solutions
4	16	256
8	64	16777216
64	4096	10116
n	n2	nn

Multiple moves

Multiple moves can reach any solution

Making moves

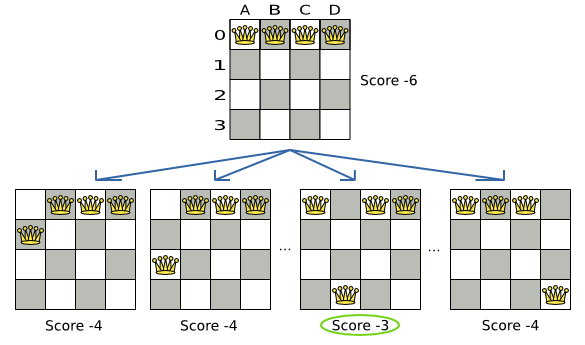

Making steps

Hill Climbing config

<localSearch>
  <forager>
    <!-- Untweaked standard value -->
    <acceptedCountLimit>1000</acceptedCountLimit>
  </forager>
</localSearch>

Lab Hill Climbing

Tabu Search config

<localSearch>
  <acceptor>
    <!-- Typical standard value -->
    <entityTabuSize>7</entityTabuSize>
  </acceptor>
  <forager>
    <!-- Typical value -->
    <acceptedCountLimit>1000</acceptedCountLimit>
  </forager>
</localSearch>

Lab Tabu Search

Simulated Annealing config

<localSearch>
  <acceptor>
    <!-- Tweaked value -->
    <simulatedAnnealingStartingTemperature>
        0hard/400soft
    </simulatedAnnealingStartingTemperature>
  </acceptor>
  <forager>
    <!-- Typical value -->
    <acceptedCountLimit>4</acceptedCountLimit>
  </forager>
</localSearch>

Lab Simulated Annealing

Late Acceptance config

<localSearch>
  <acceptor>
    <!-- Typical standard value -->
    <lateAcceptanceSize>400</lateAcceptanceSize>
  </acceptor>
  <forager>
    <!-- Typical value -->
    <acceptedCountLimit>4</acceptedCountLimit>
  </forager>
</localSearch>

Lab Late Acceptance

Local Search results

Cost ($) reduction

Optimization algorithms

• Exhaustive Search
  • Brute Force
  • Branch And Bound
• Construction Heuristics
  • First Fit (Decreasing)
  • Weakest/Strongest Fit (Decreasing)
  • Cheapest Insertion
• Metaheuristics (Local Search, ...)
  • Hill Climbing
  • Tabu Search
  • Strategic Oscillation Tabu Search
  • Simulated Annealing
  • Late Acceptance
  • Step Counting Hill Climbing

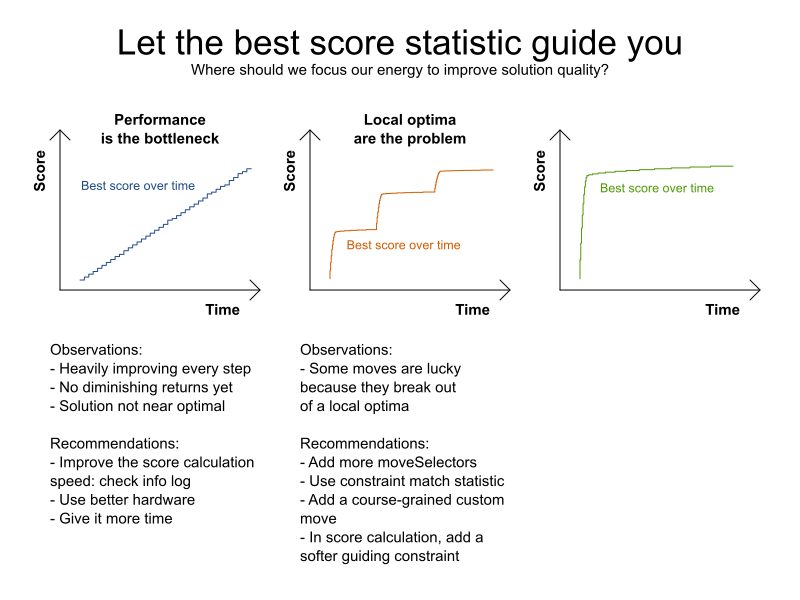

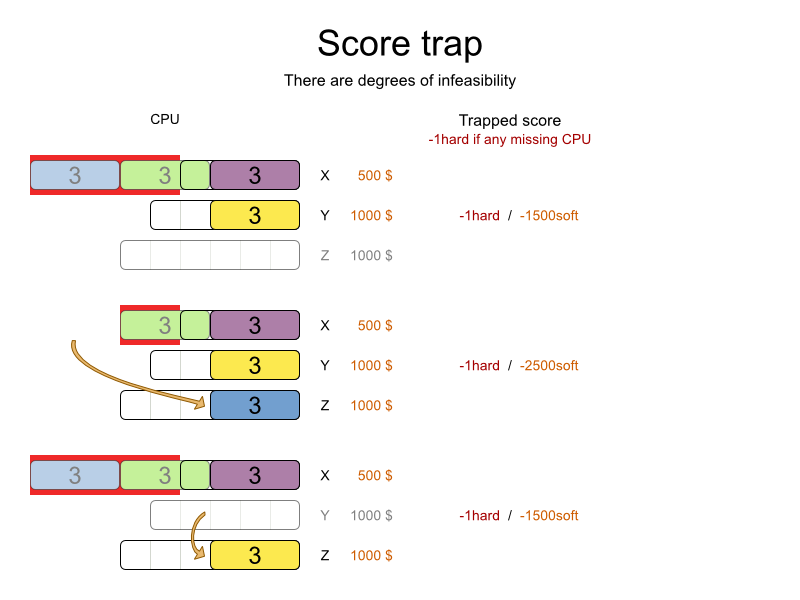

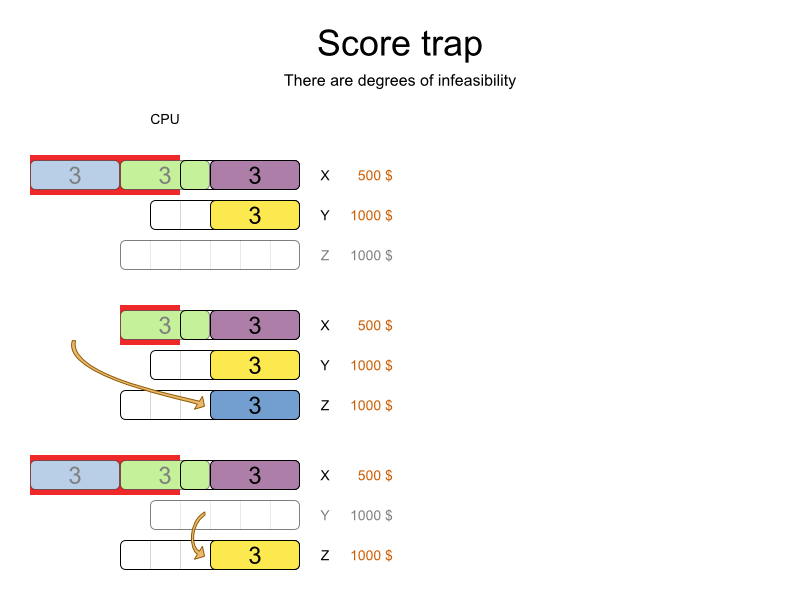

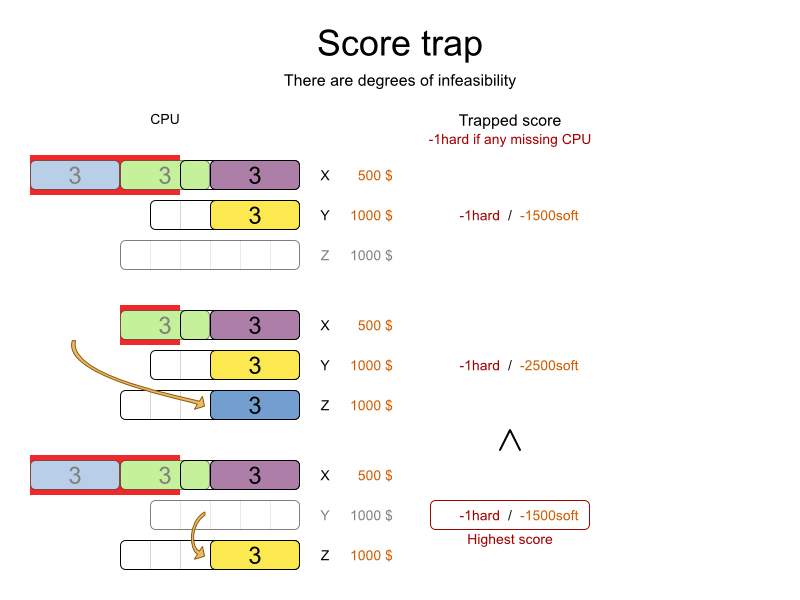

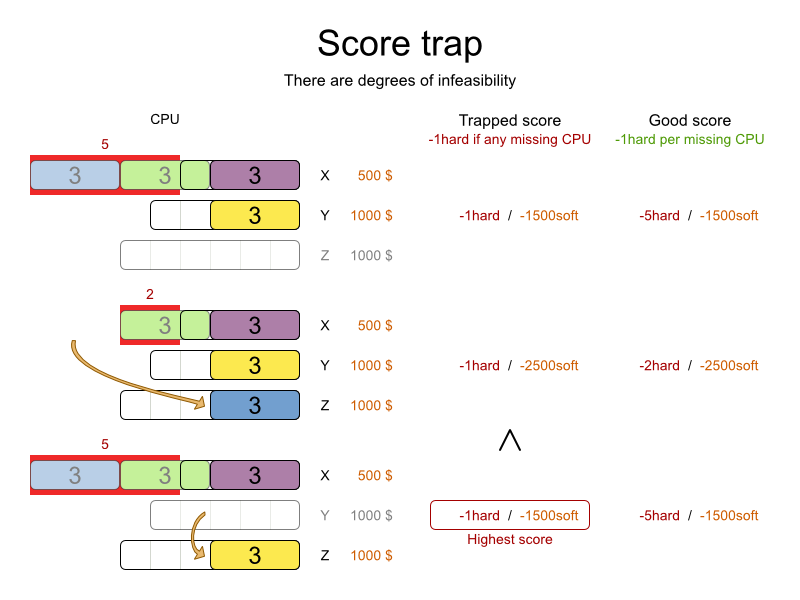

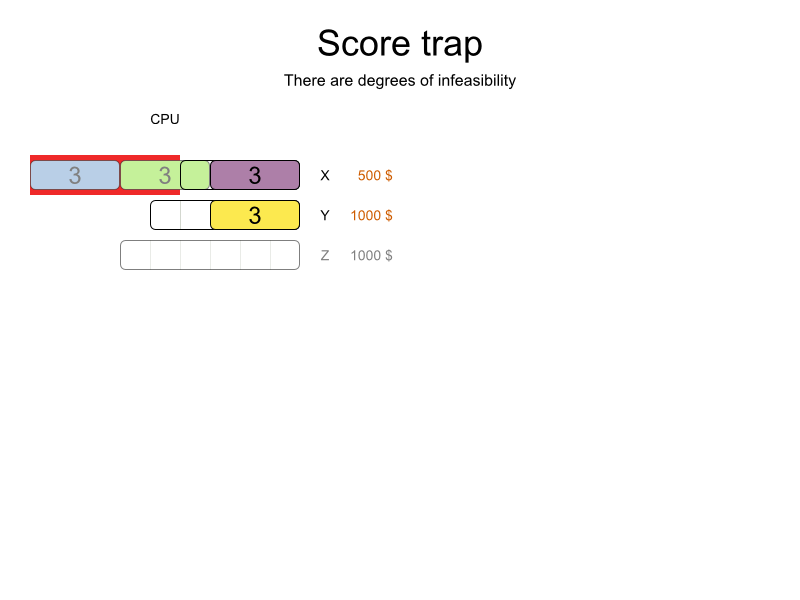

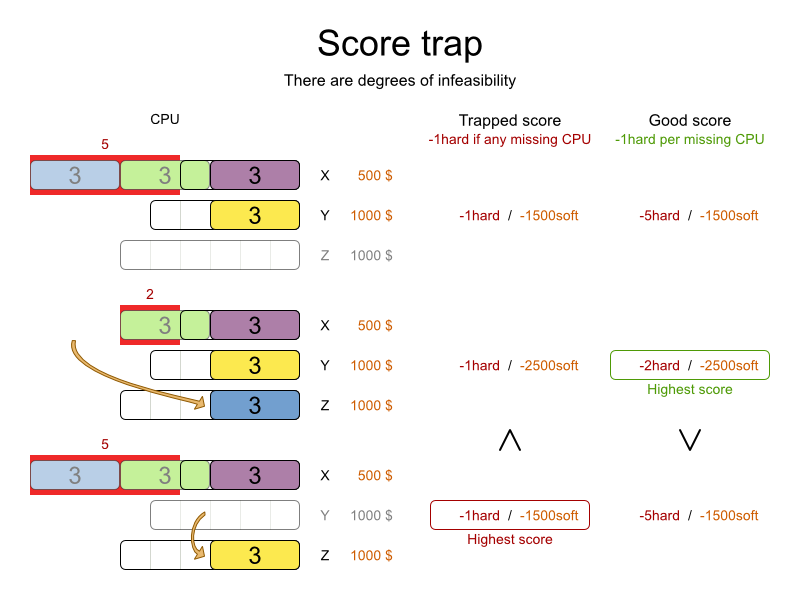

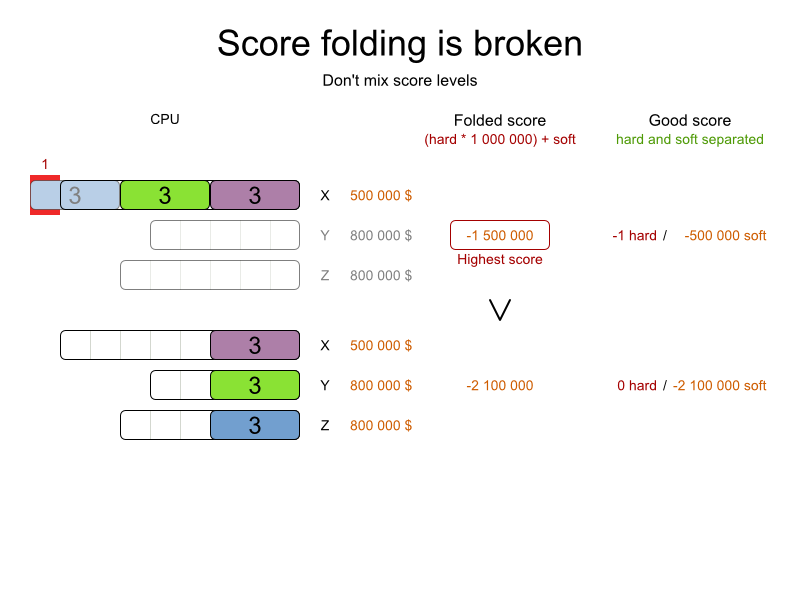

Score traps

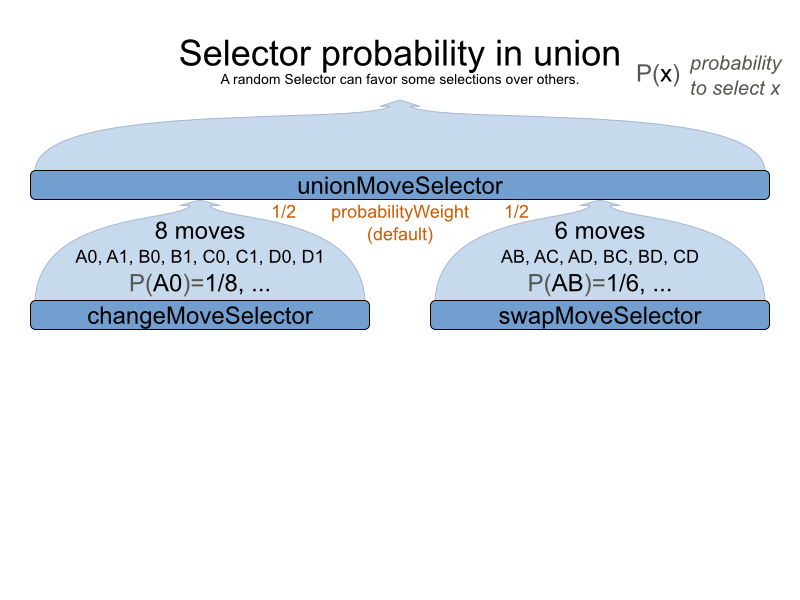

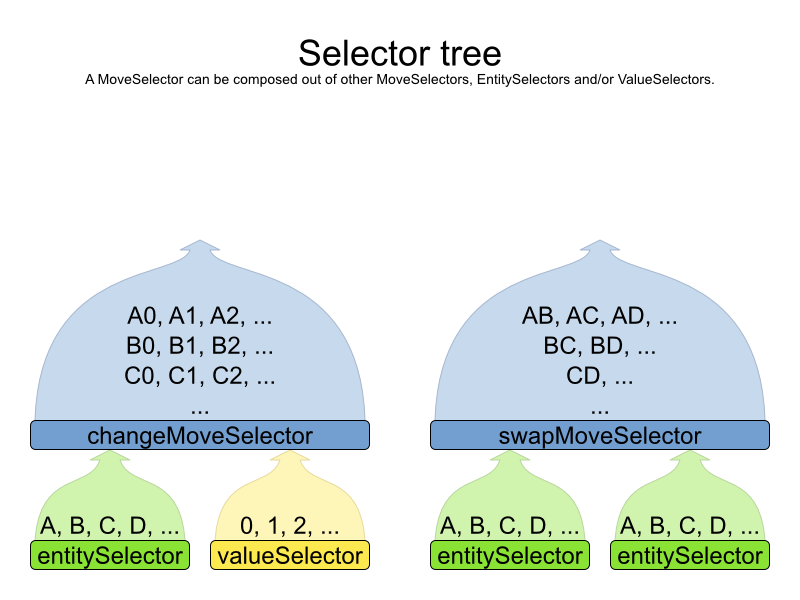

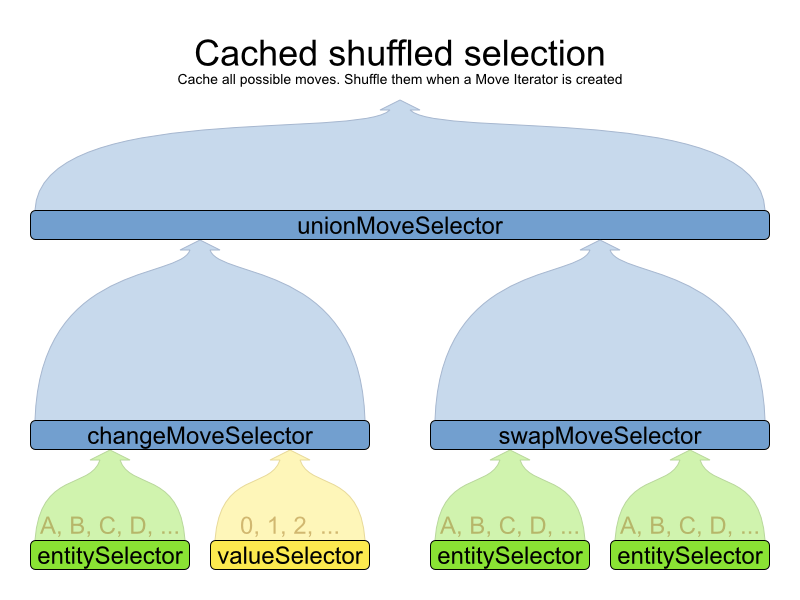

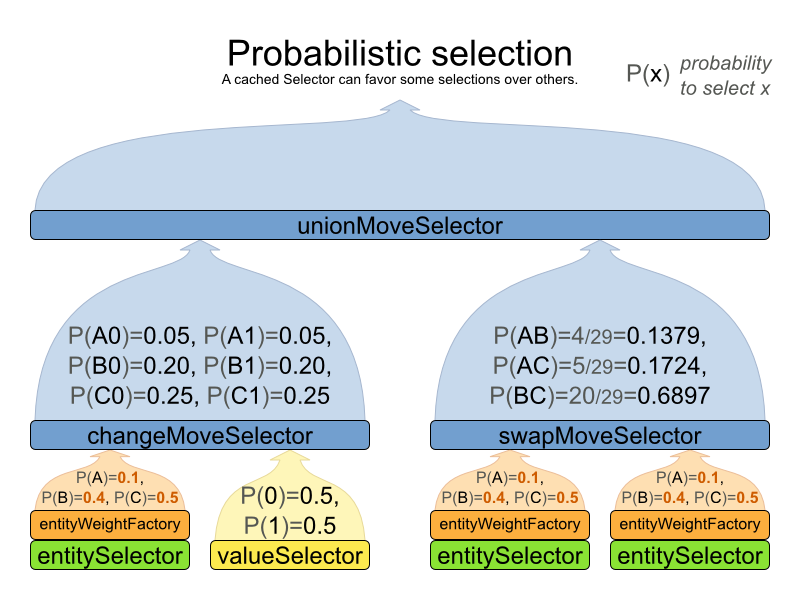

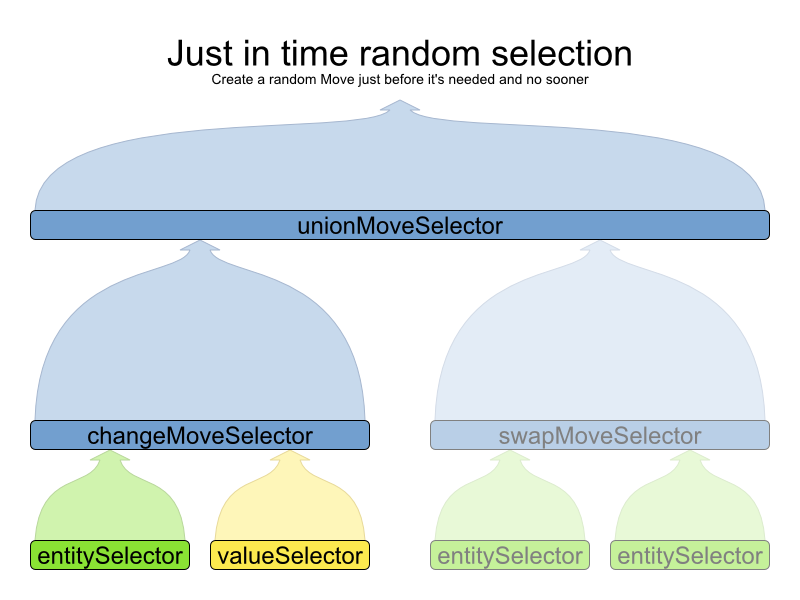

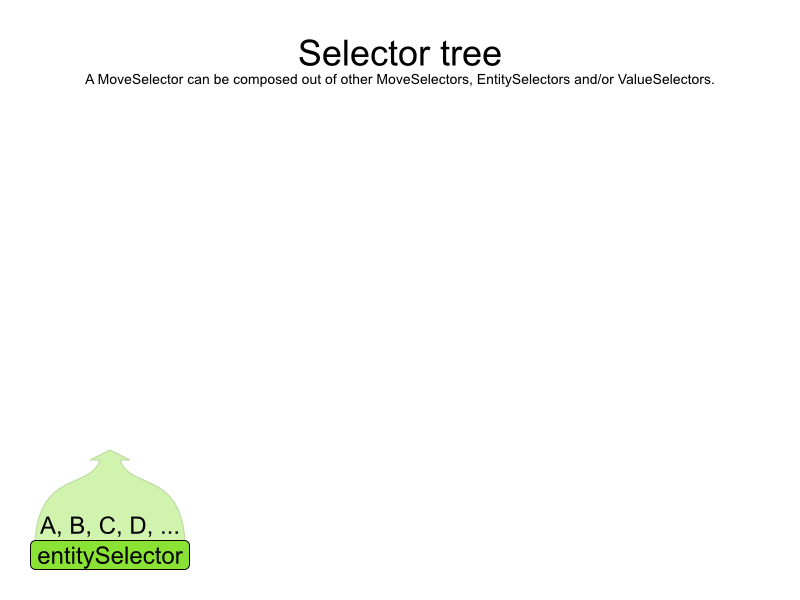

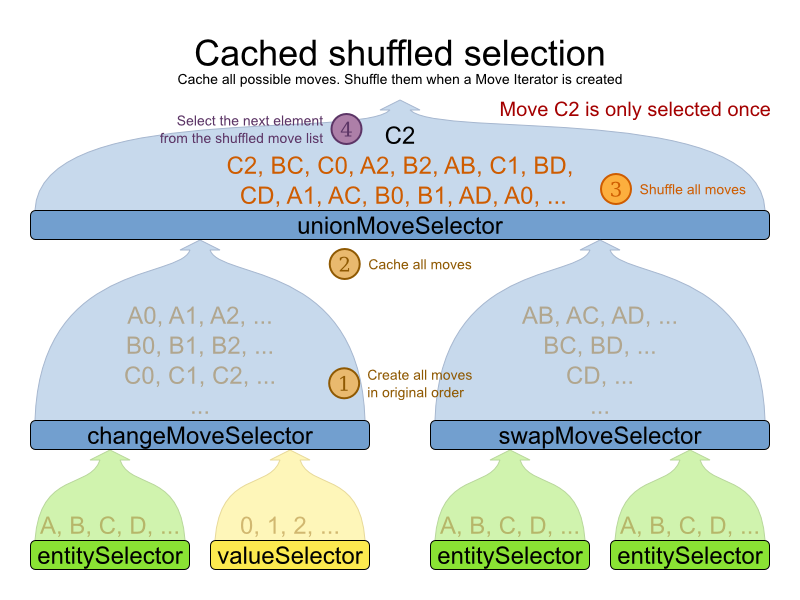

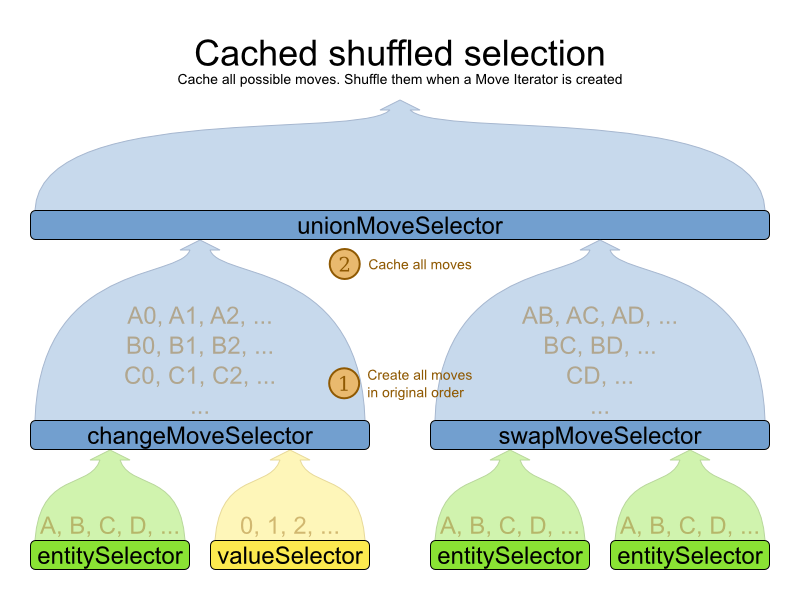

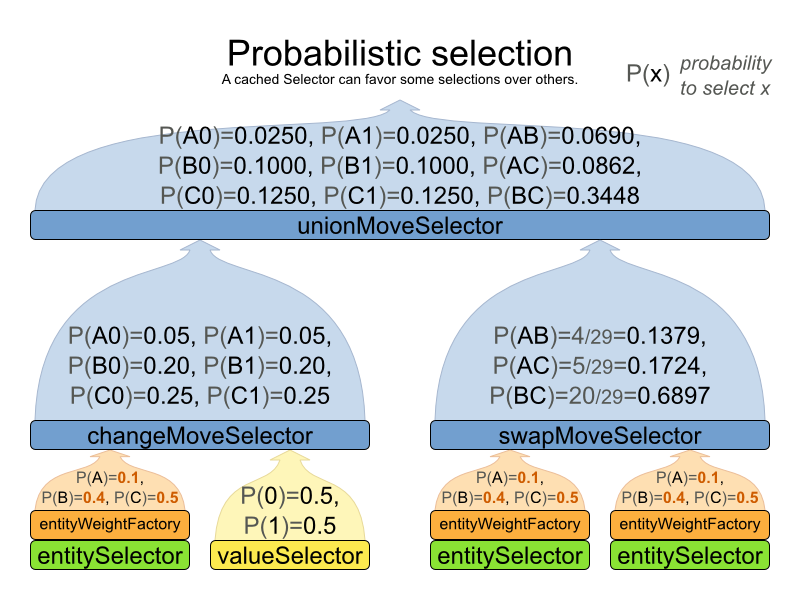

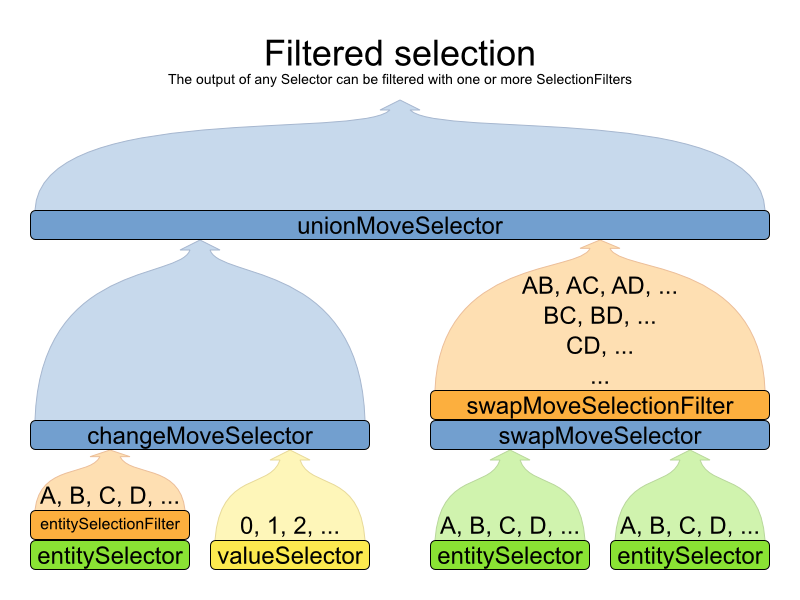

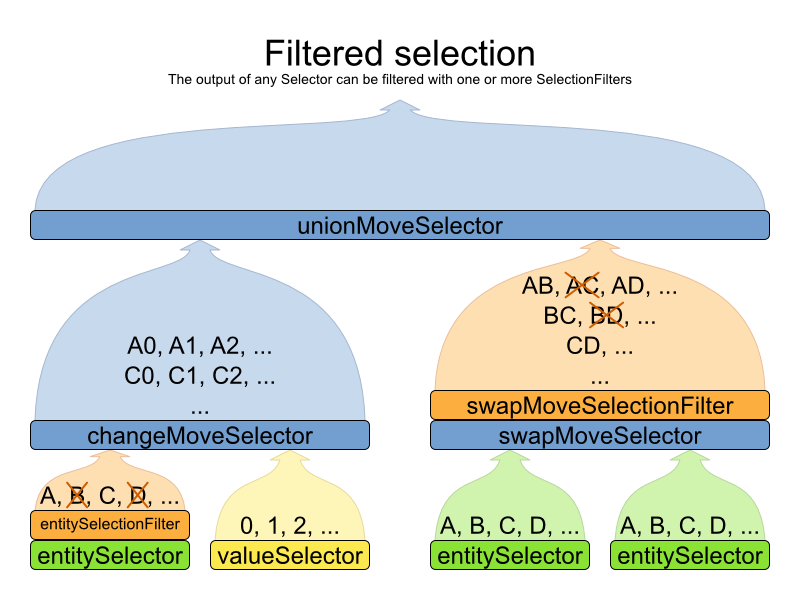

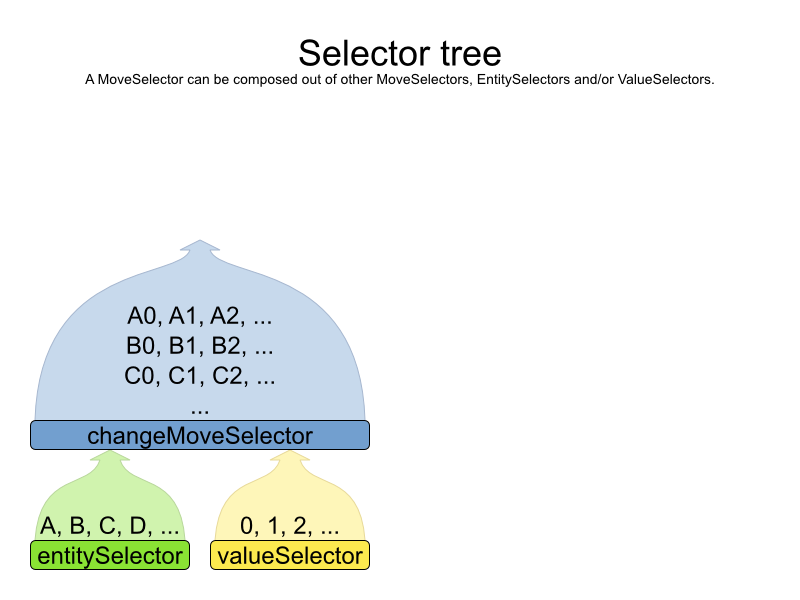

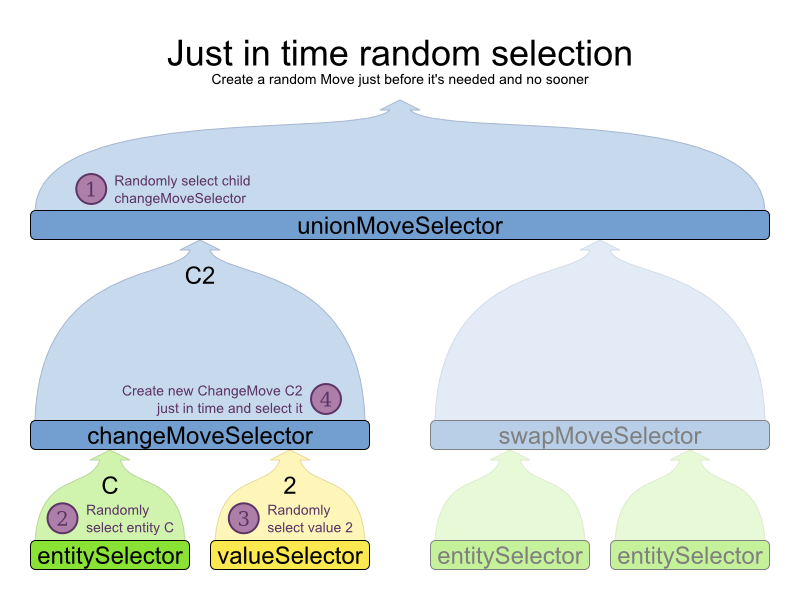

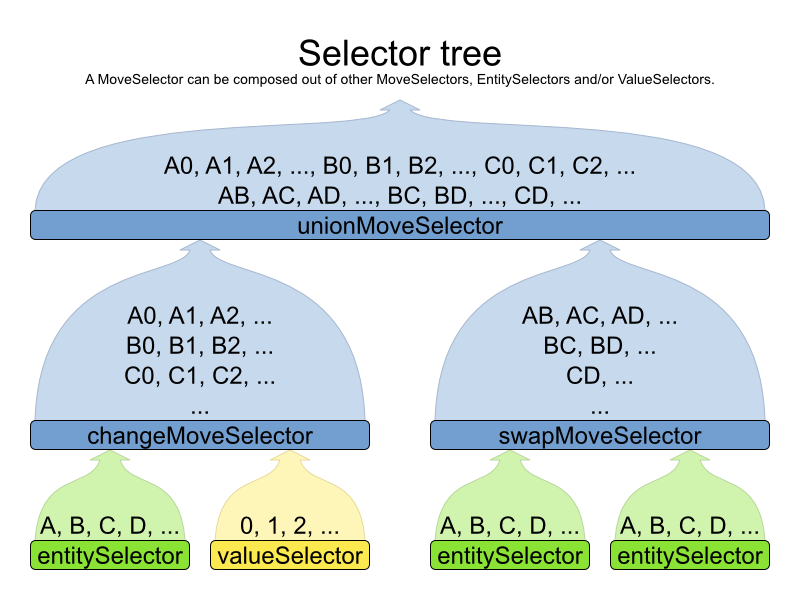

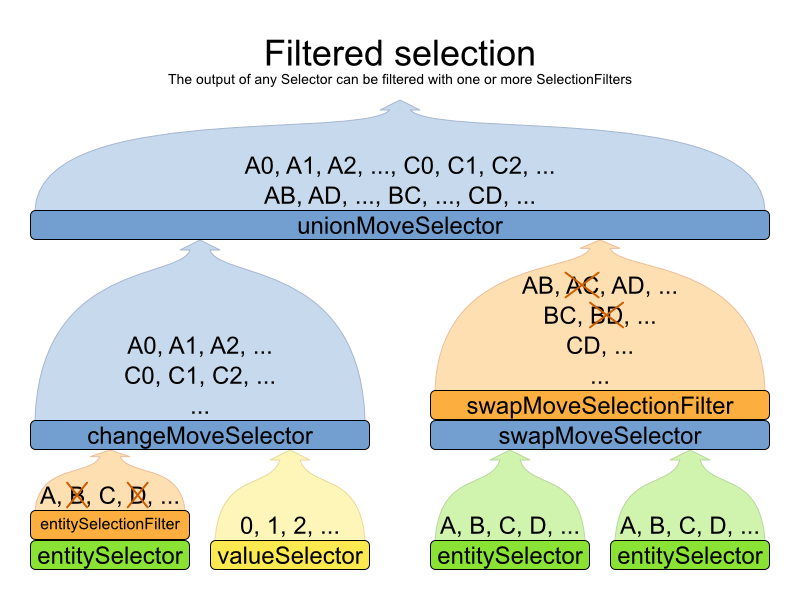

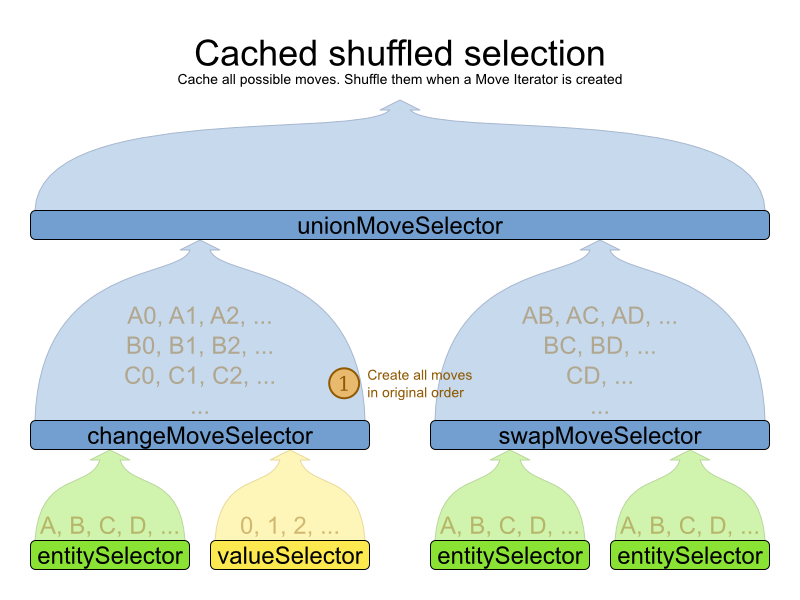

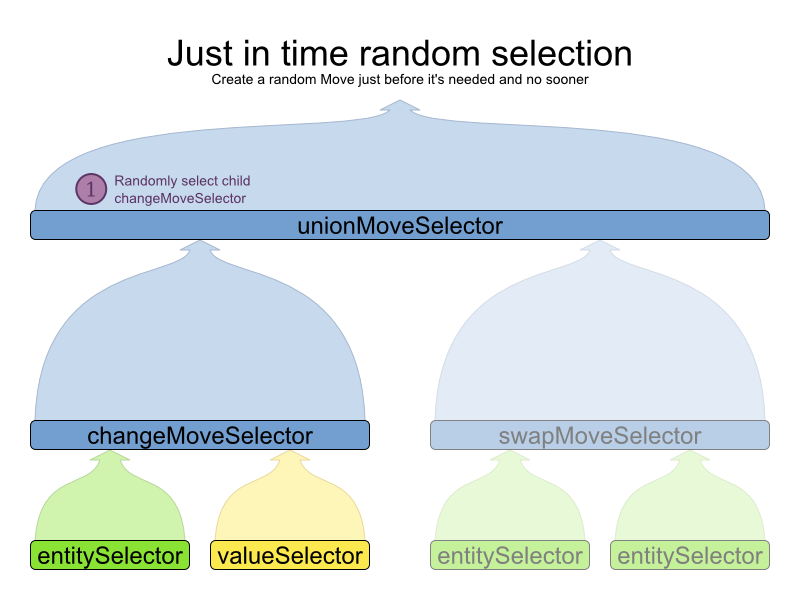

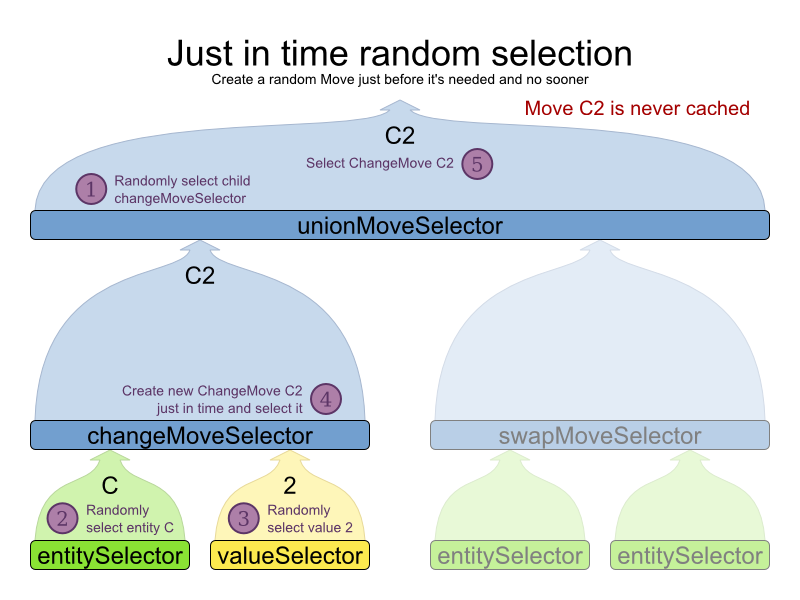

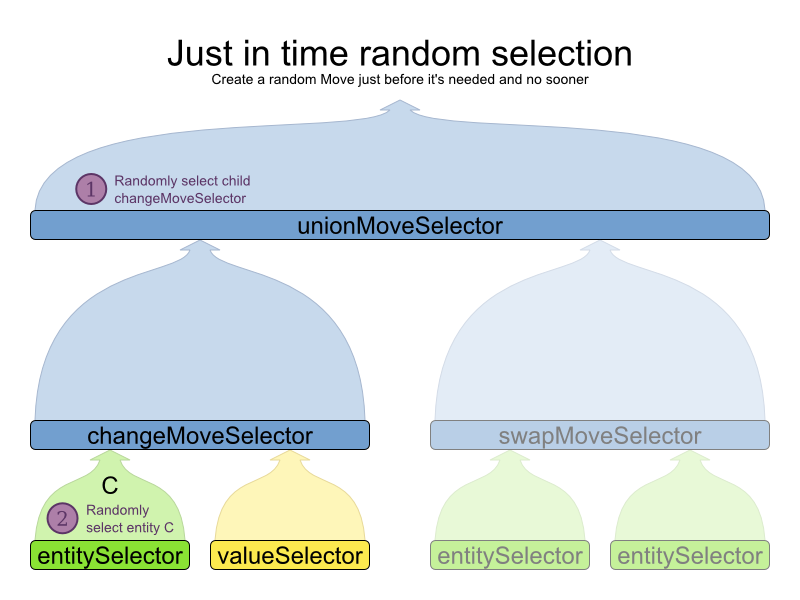

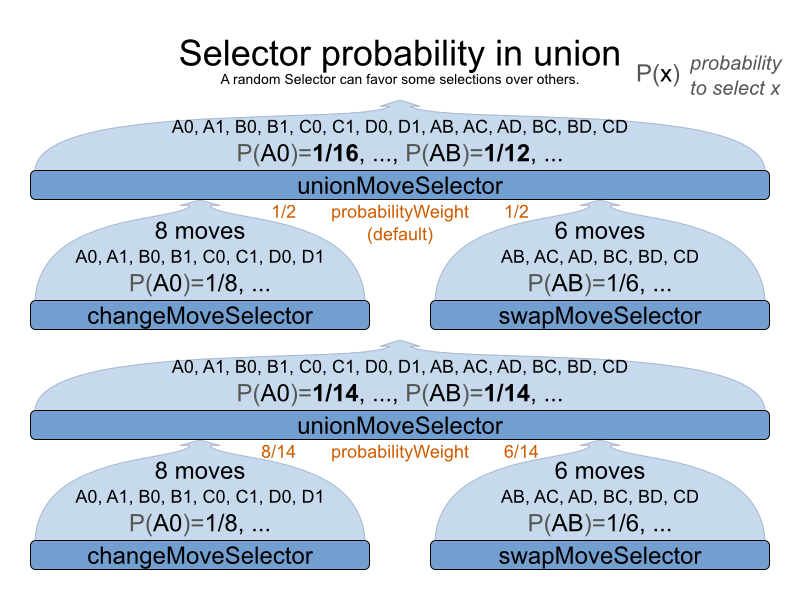

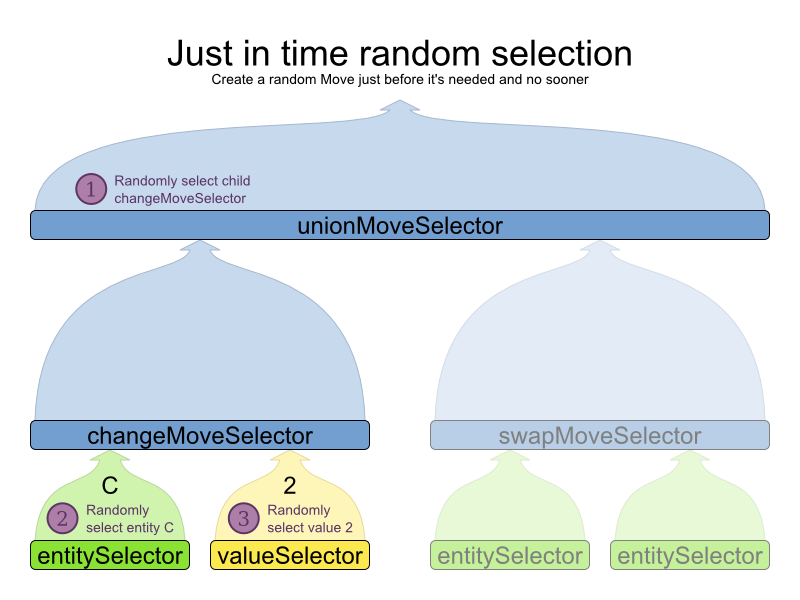

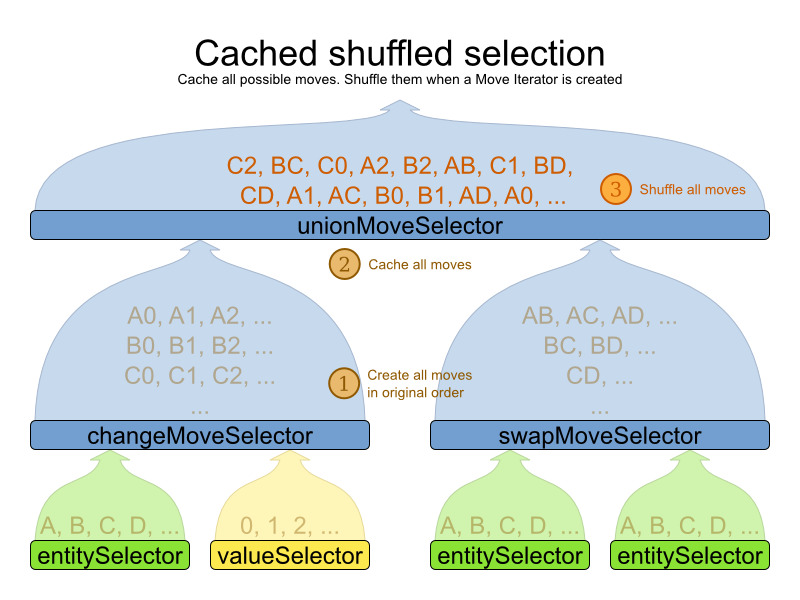

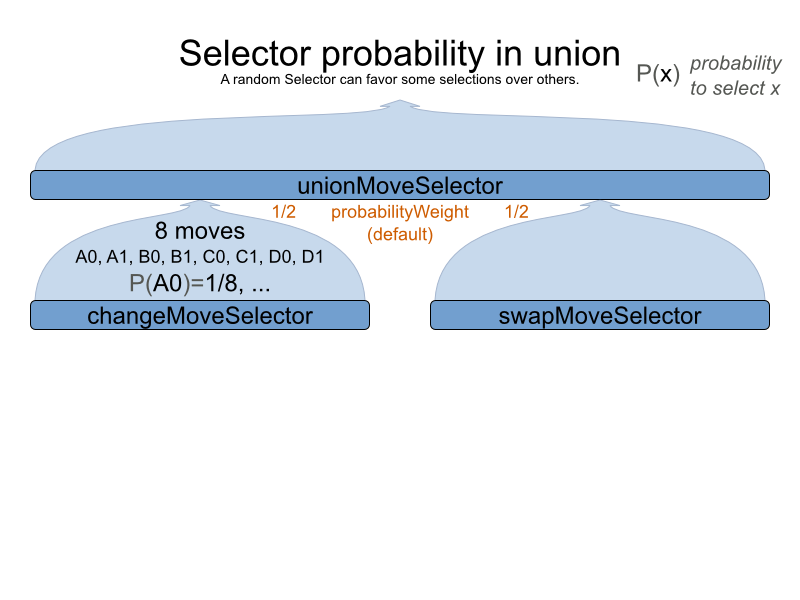

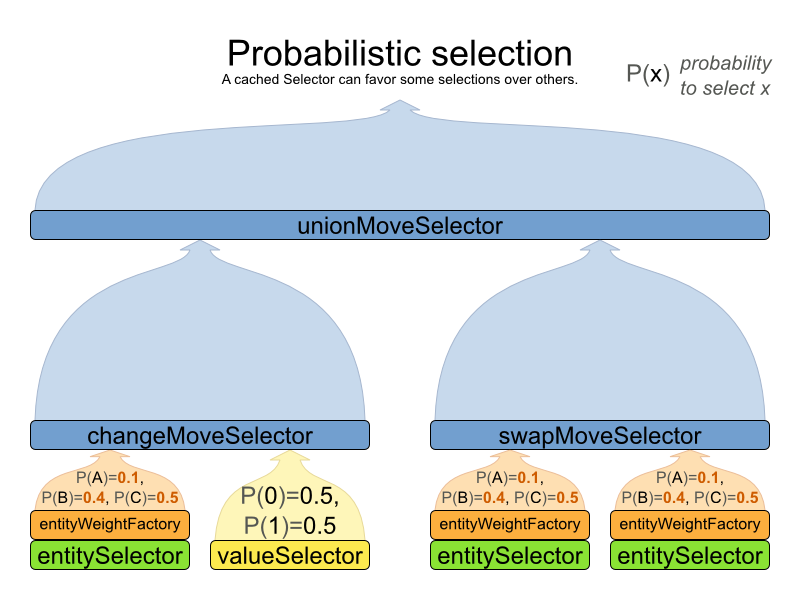

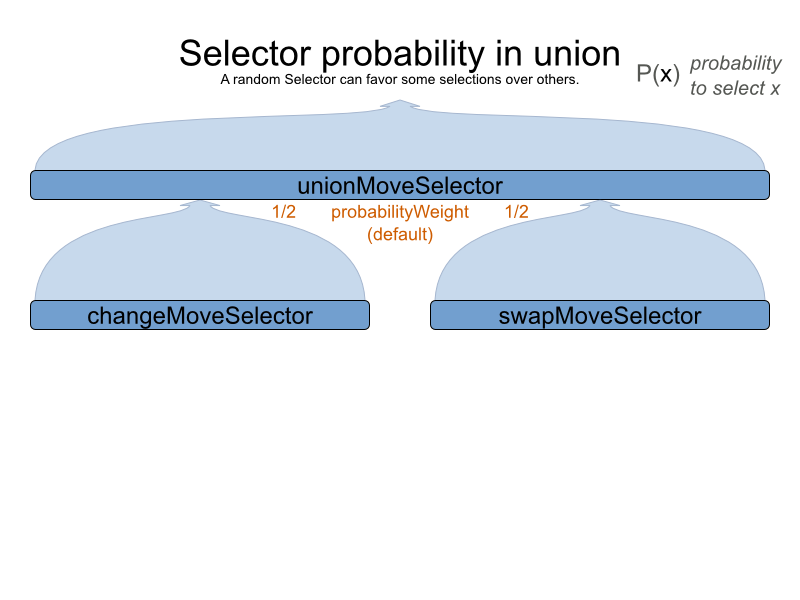

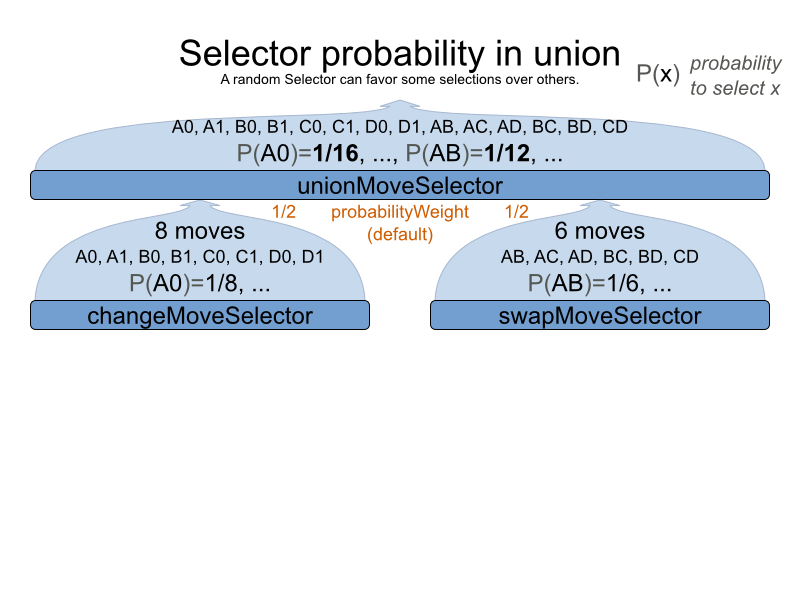

Move selectors

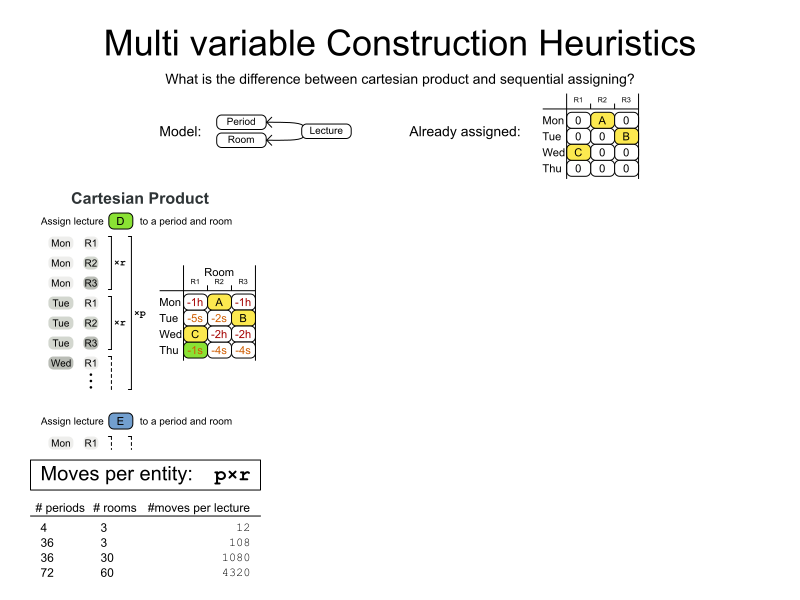

Cartesian Product

Mimic Selection

Limited Selection

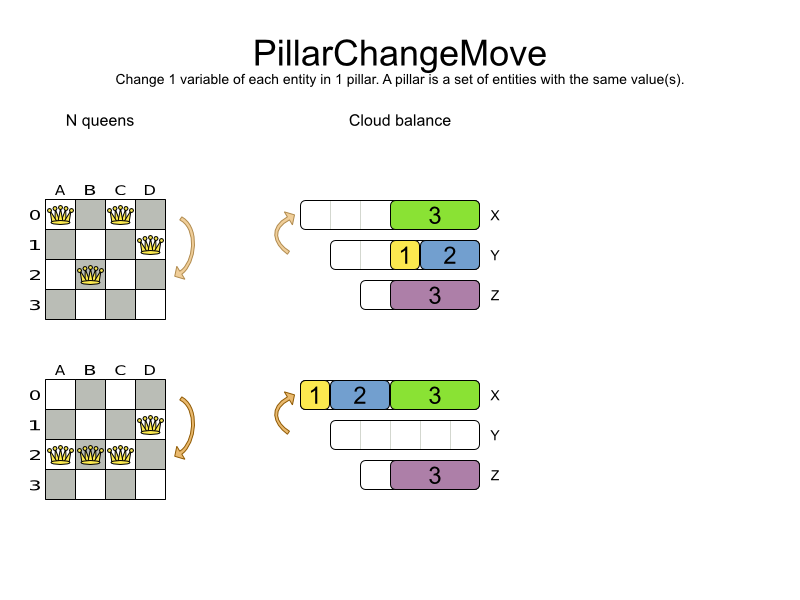

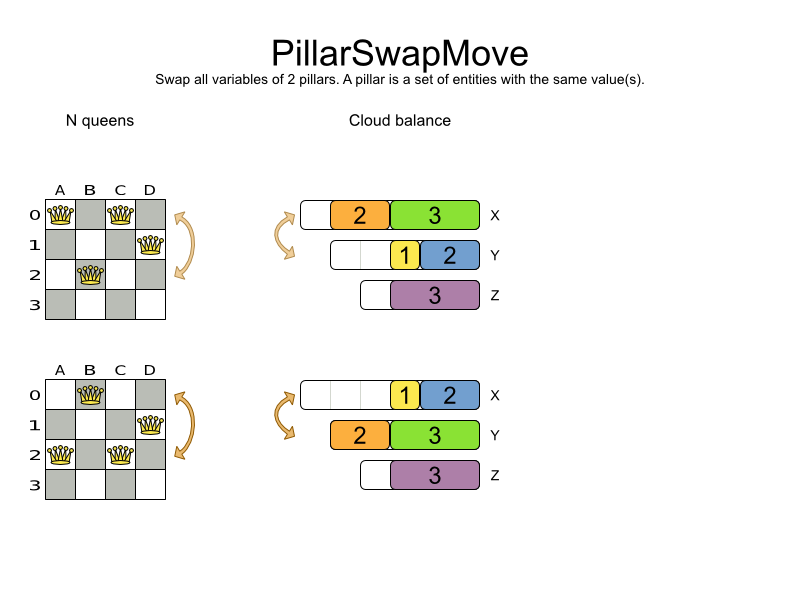

Generic moves

TailChainSwapMove

SubChainChangeMove

SubChainSwapMove

Custom moves

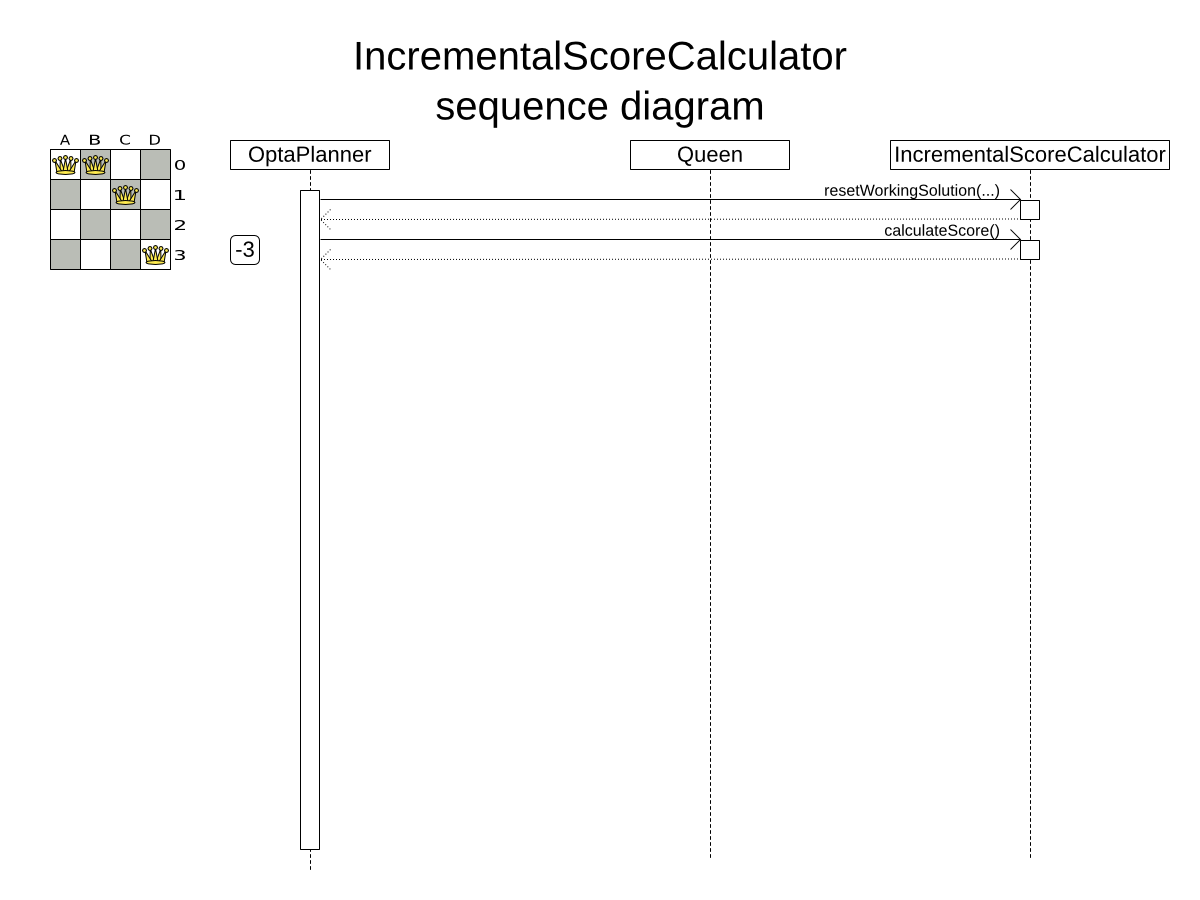

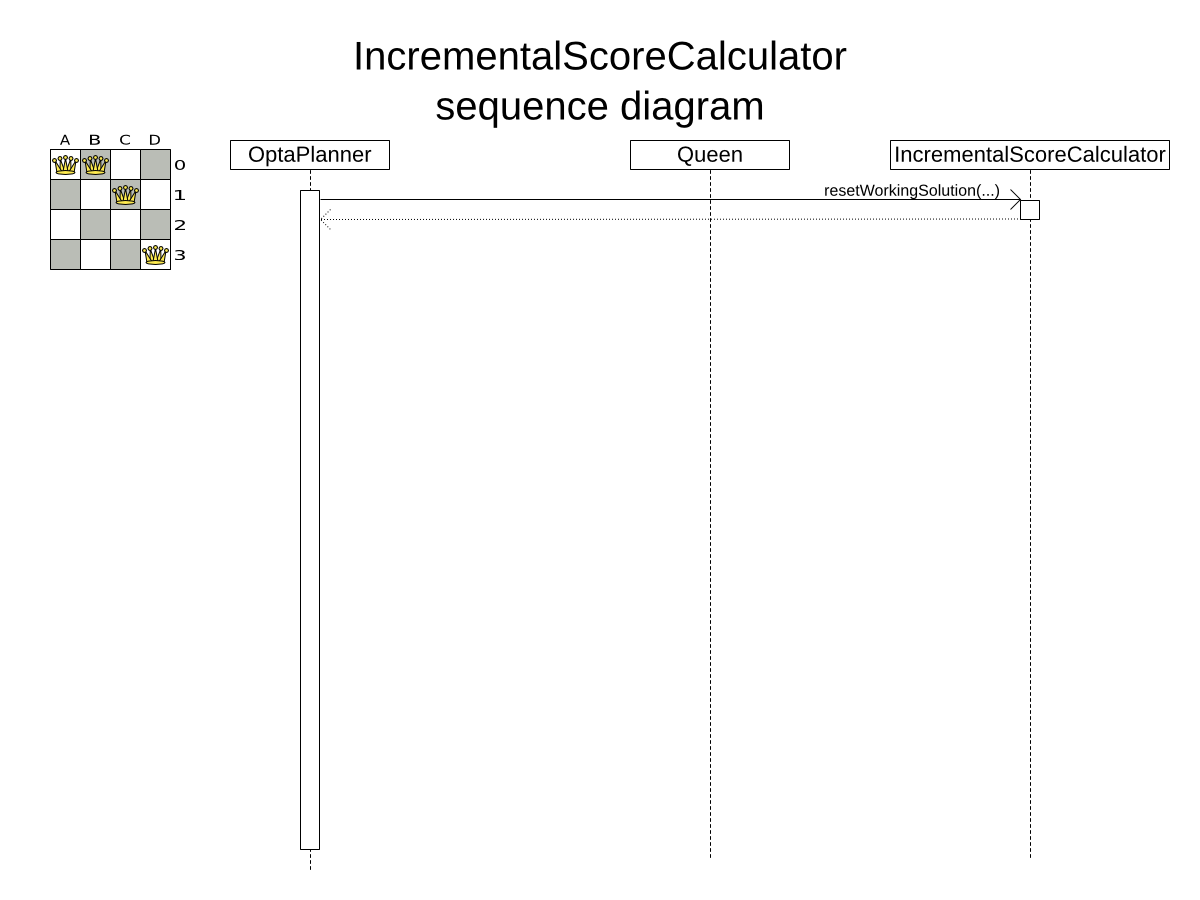

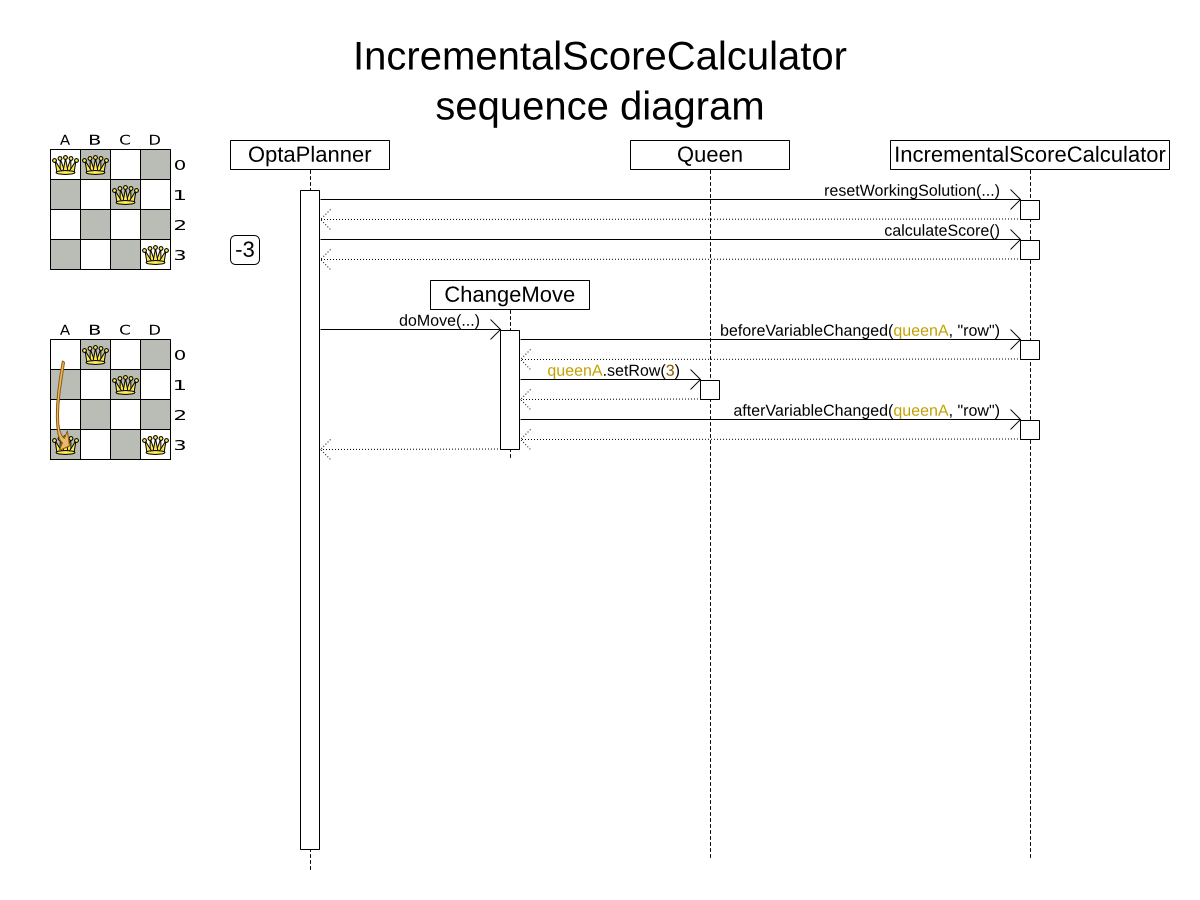

Incremental score calculation

EnvironmentMode

Are there bugs in my code?

• Non-reproducible
• Reproducible (default)
• Fast assert
• Full assert

Machine Reassignment

Agenda: Training session 5

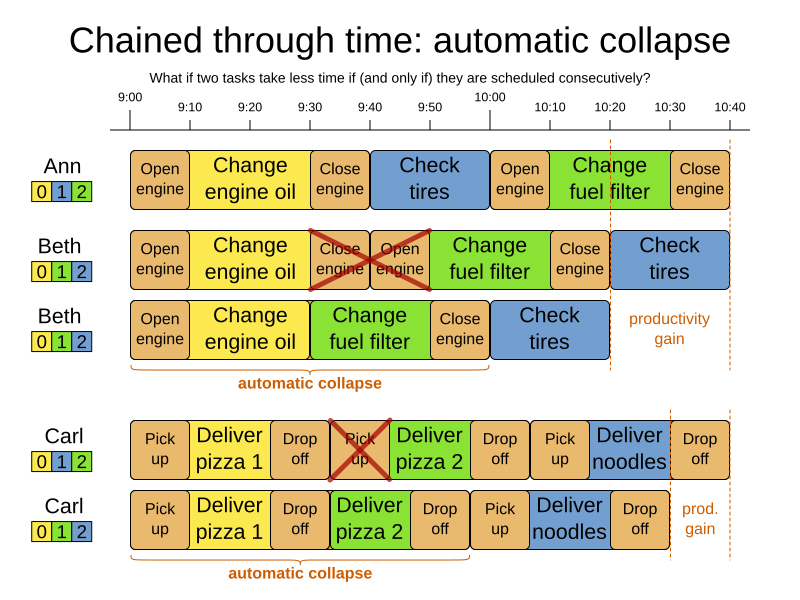

• Chained variables
• TSP, VRP

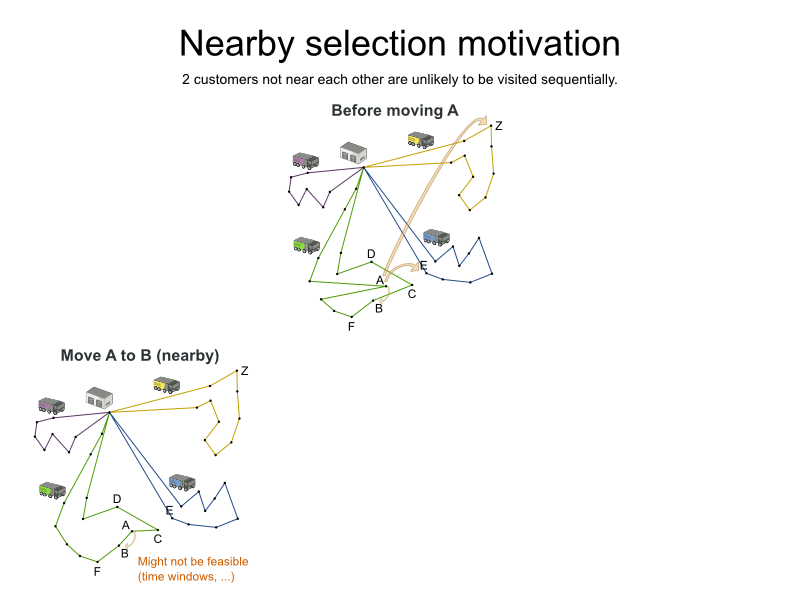

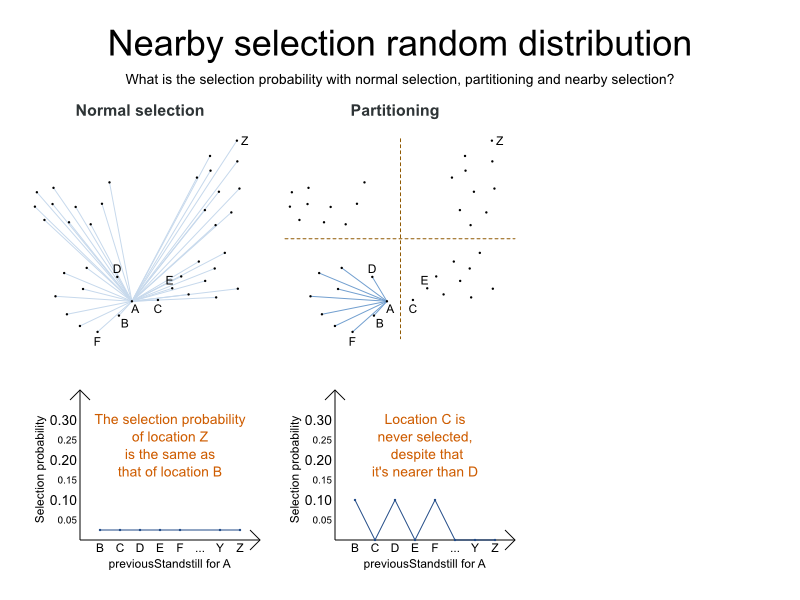

• Nearby selection
• Shadow variables
• Project Job Scheduling

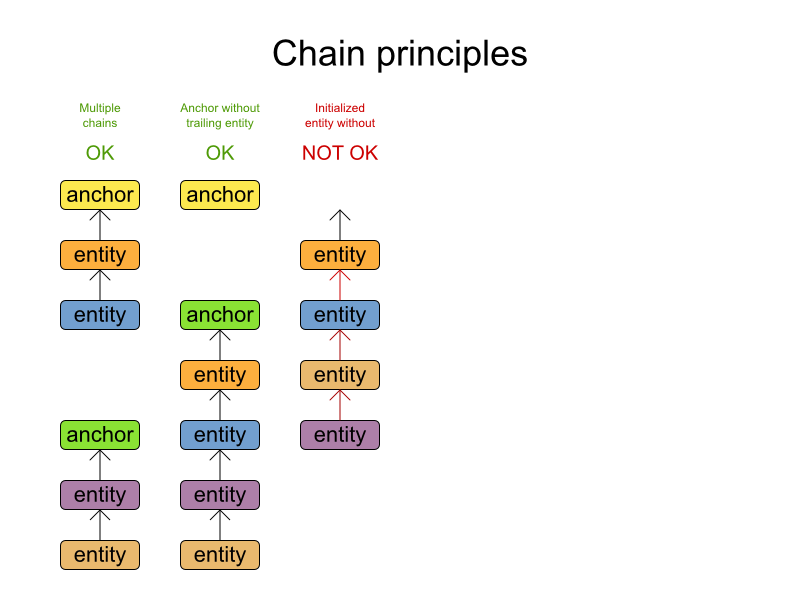

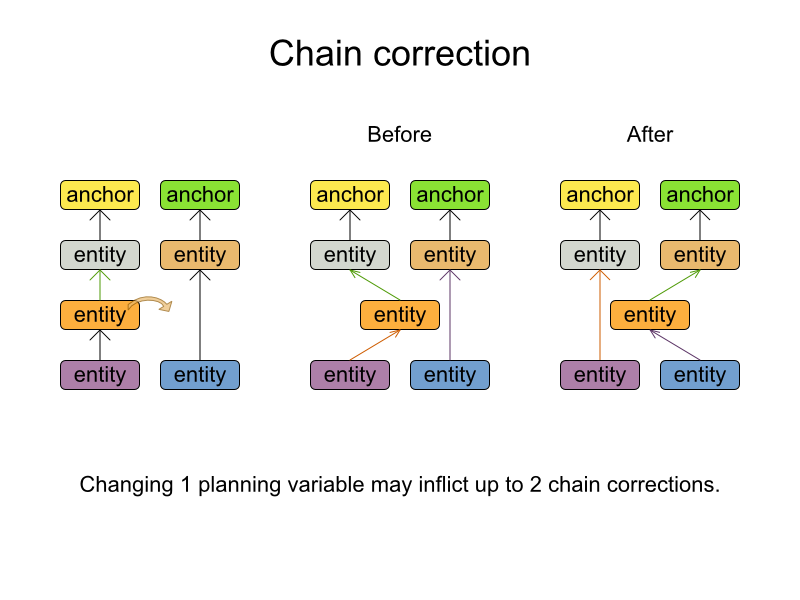

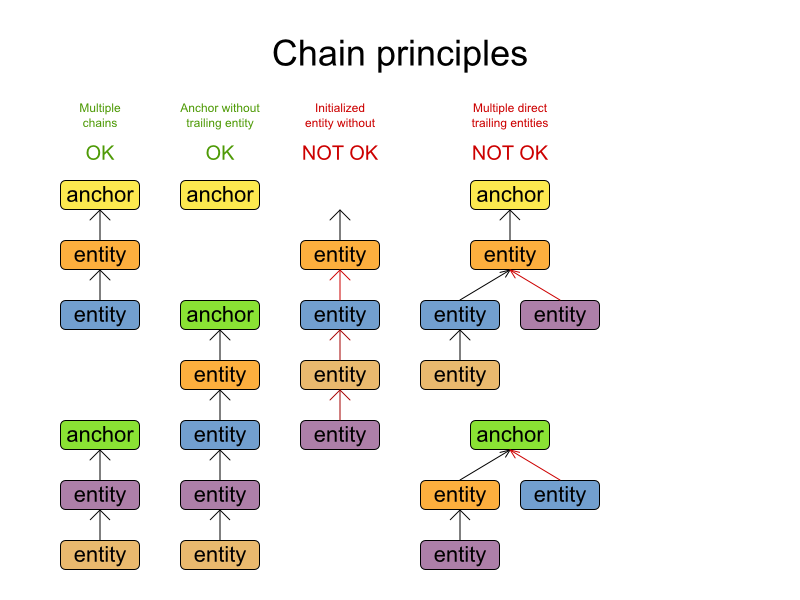

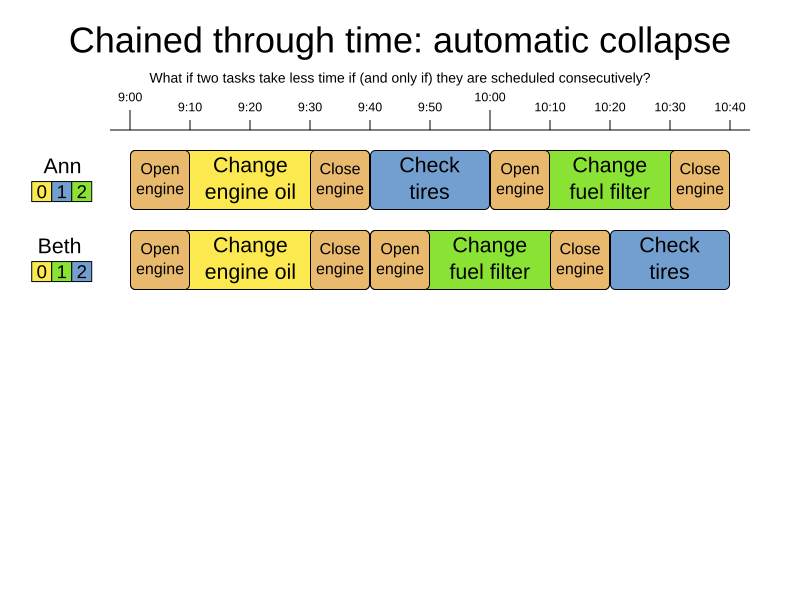

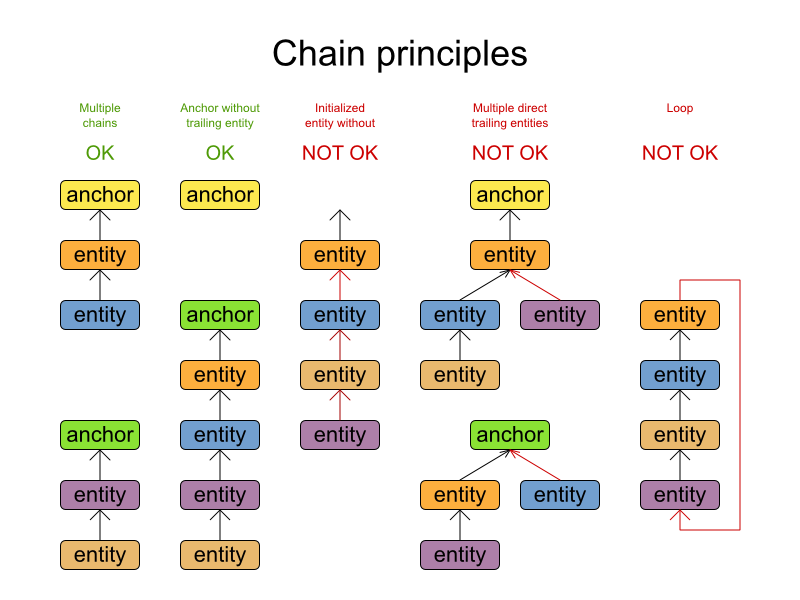

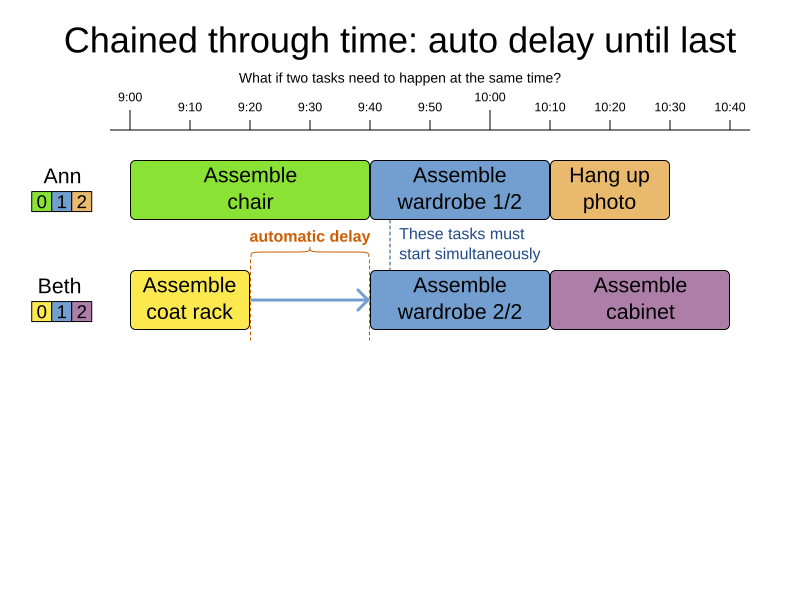

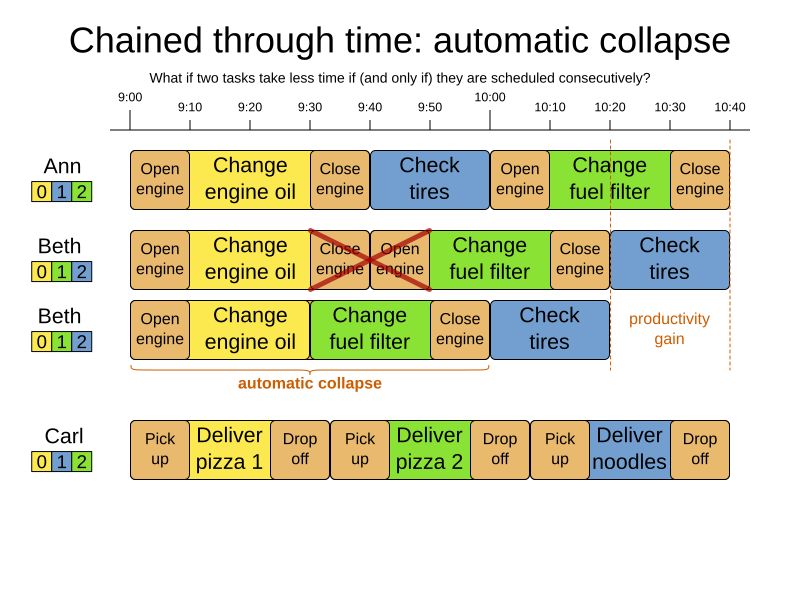

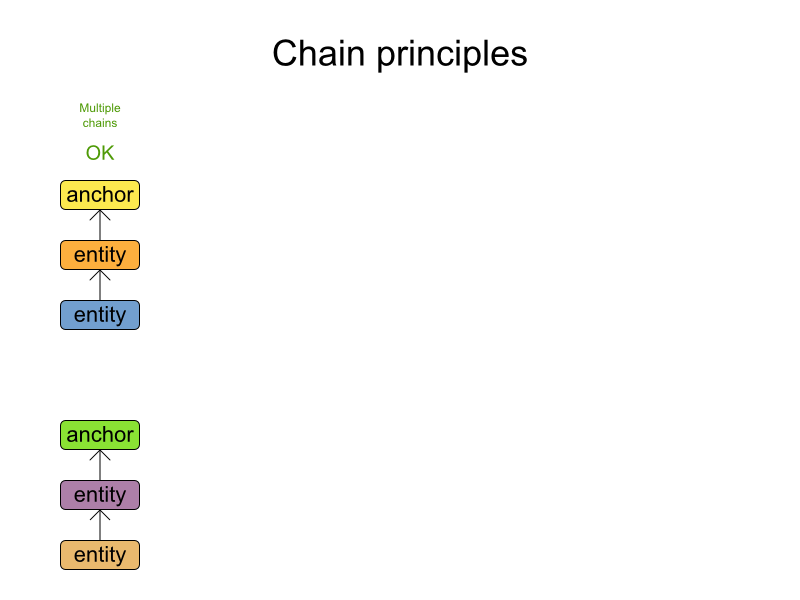

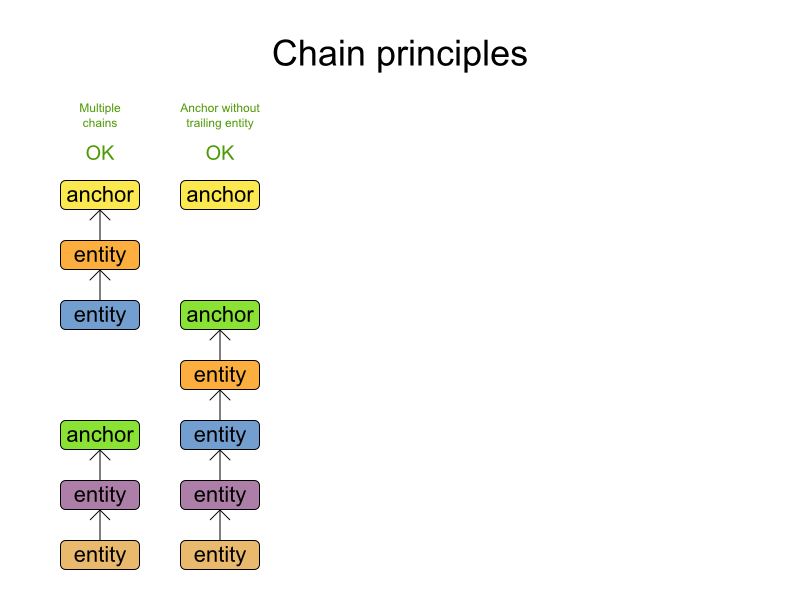

Chained variables

TSP

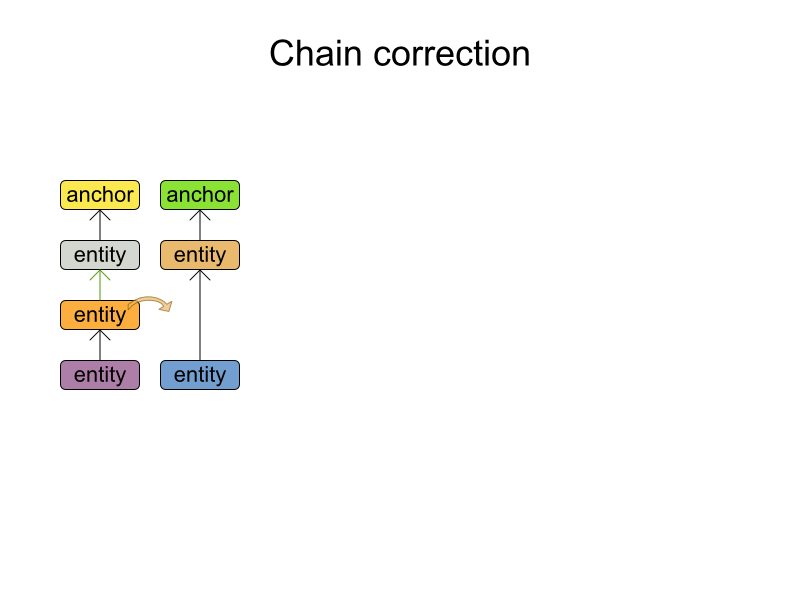

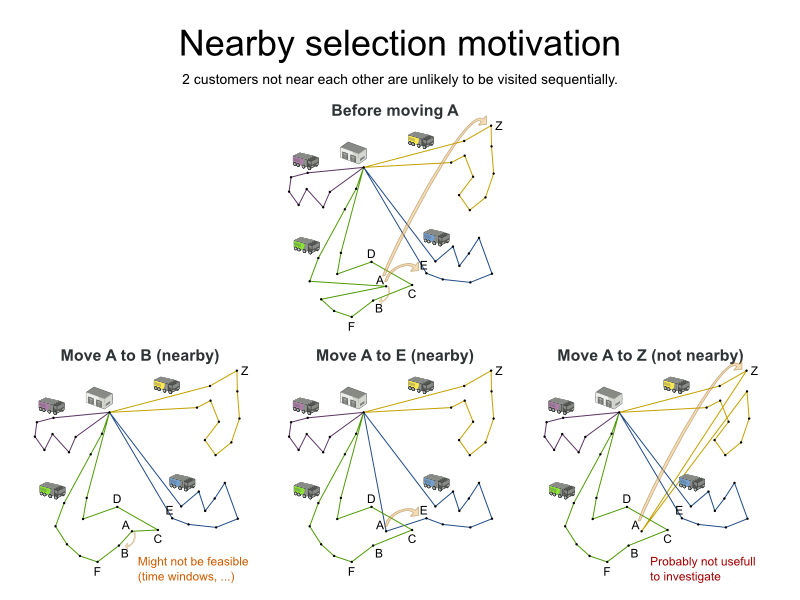

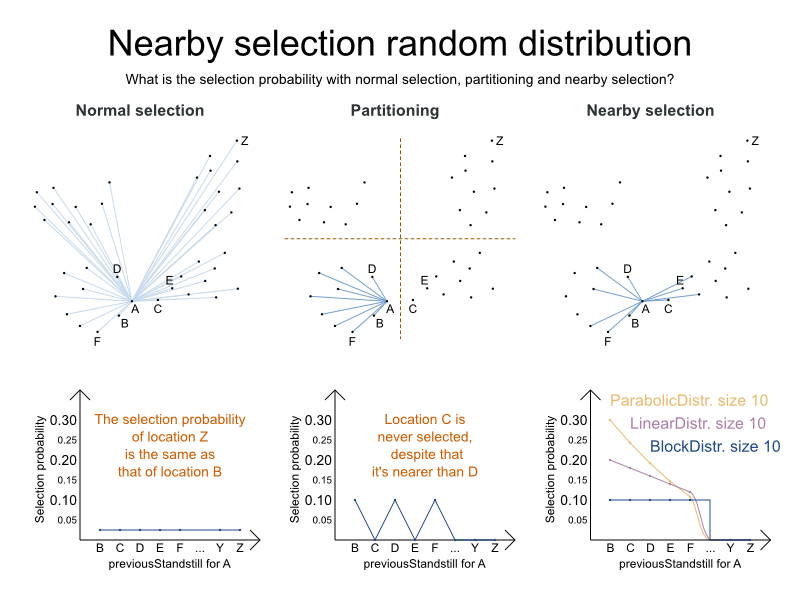

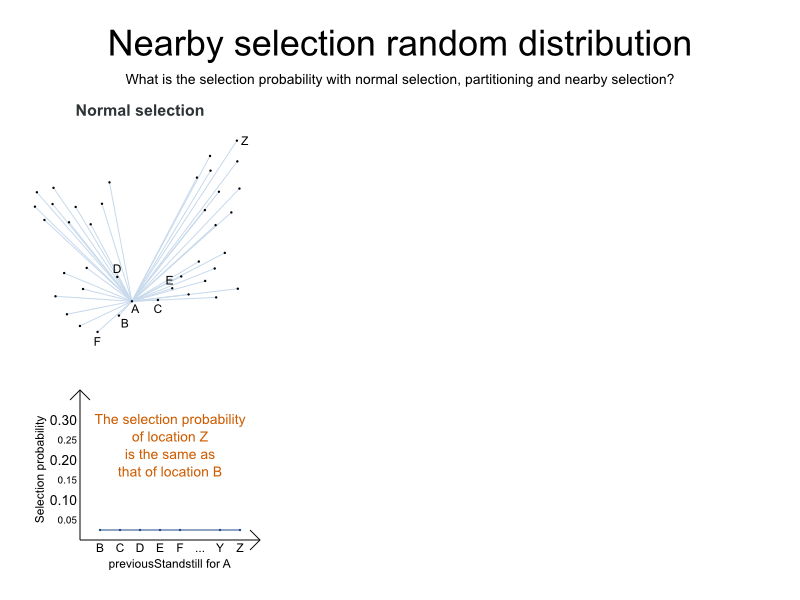

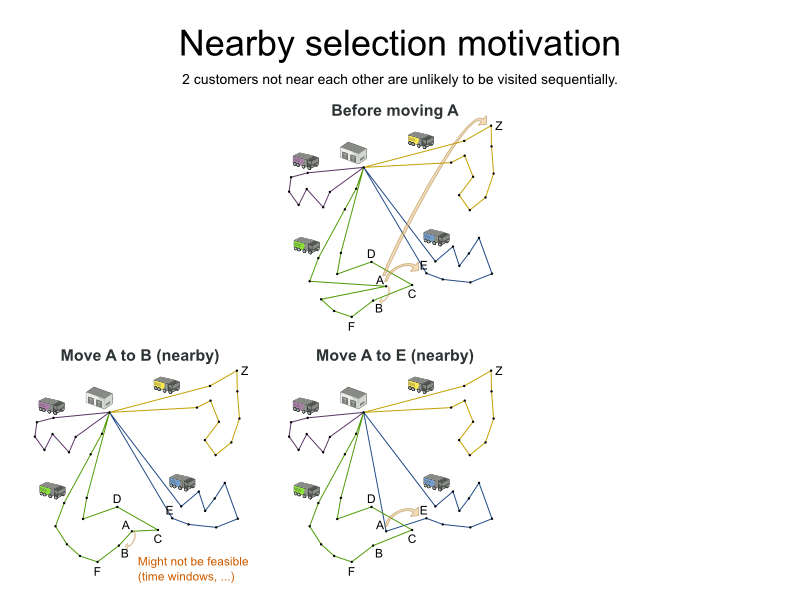

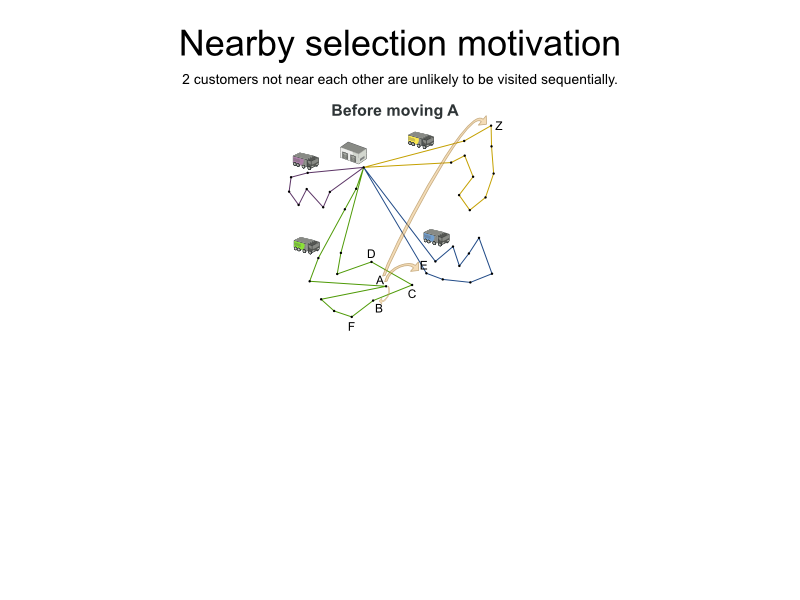

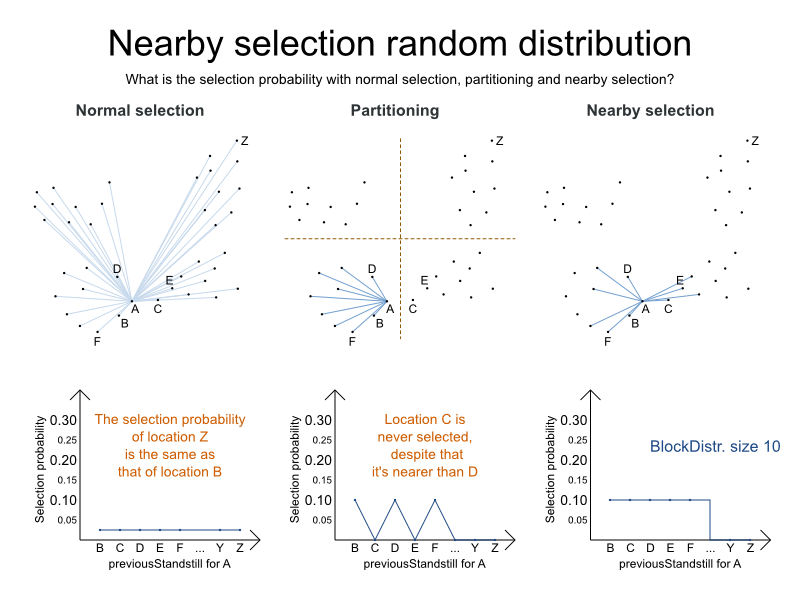

Nearby Selection

Scaling out with TSP and VRP

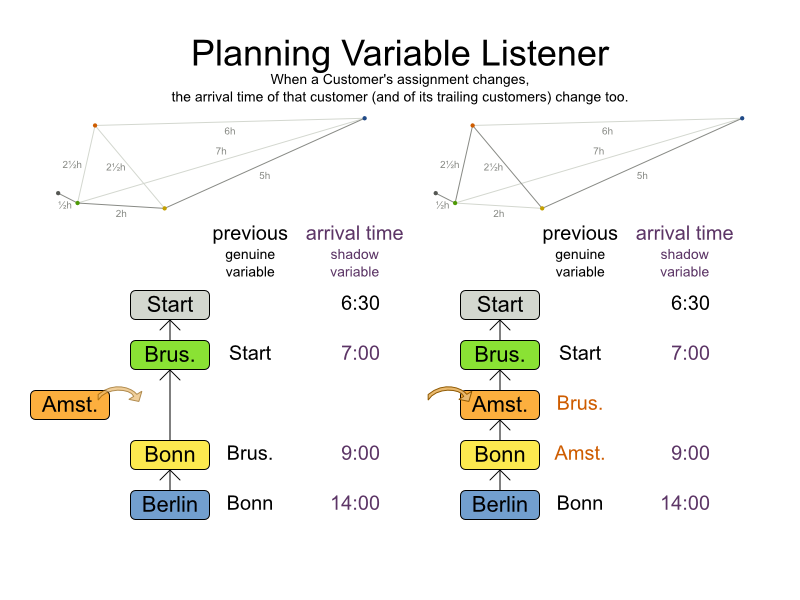

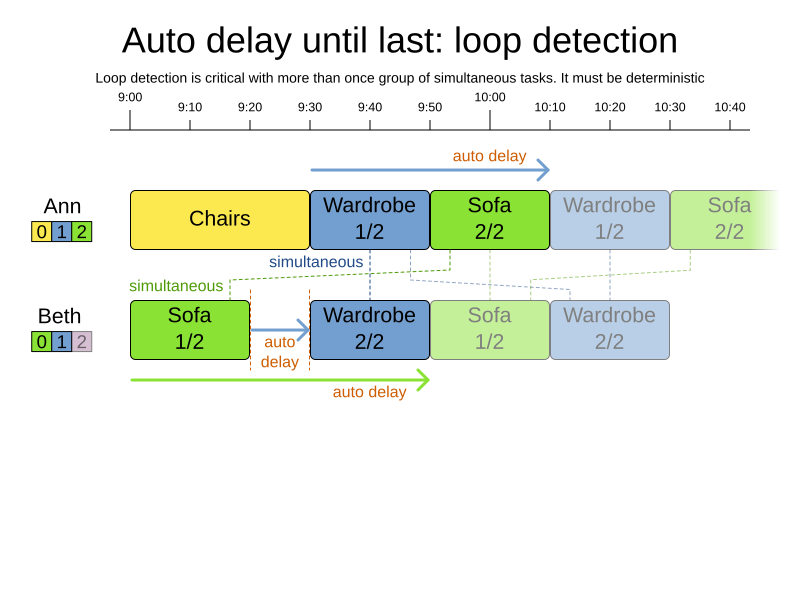

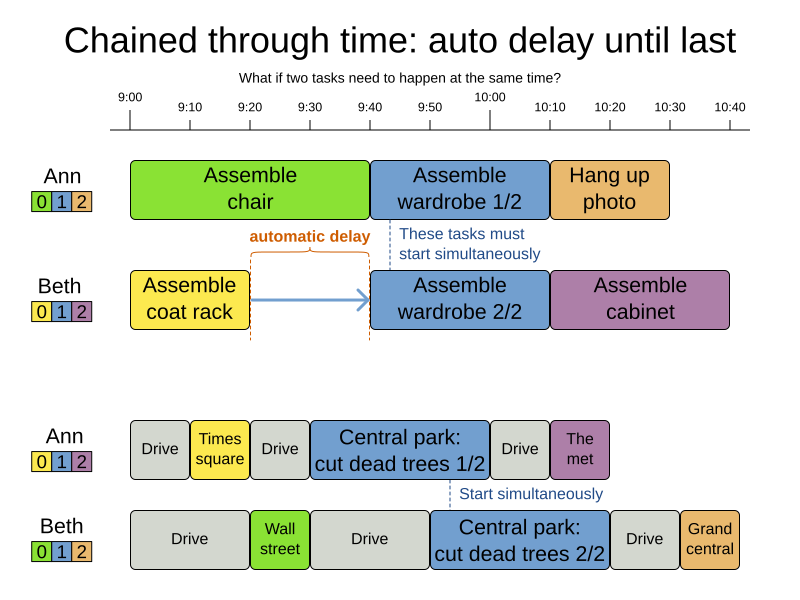

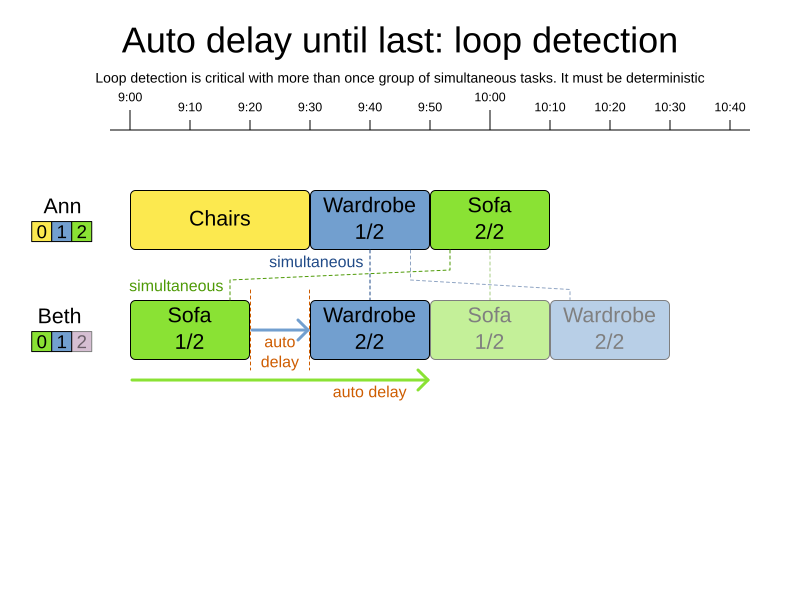

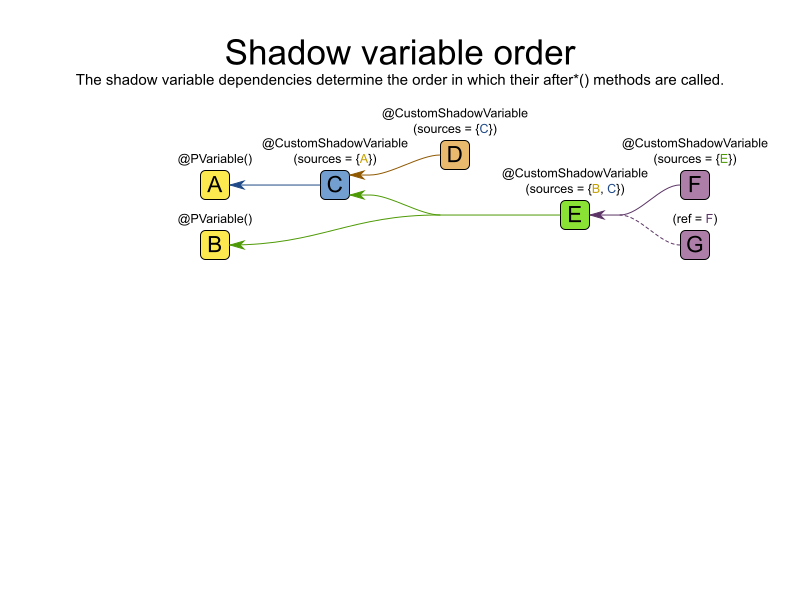

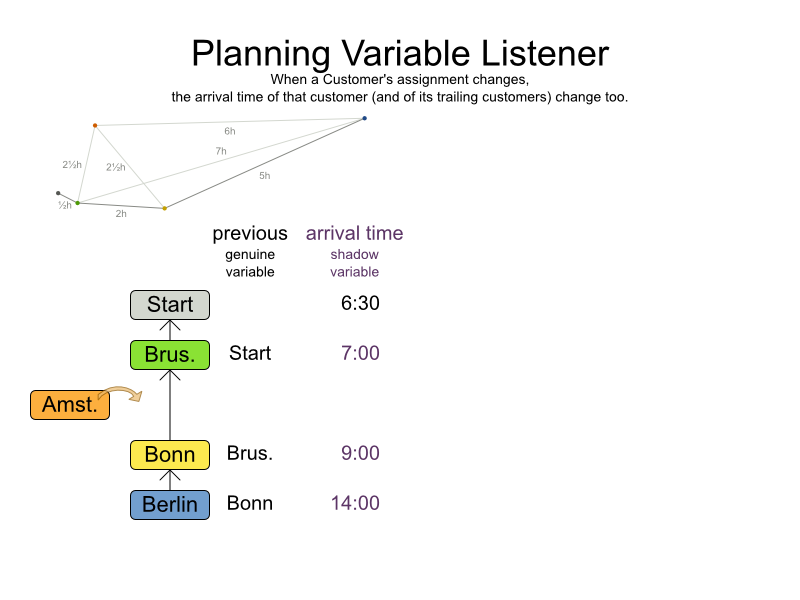

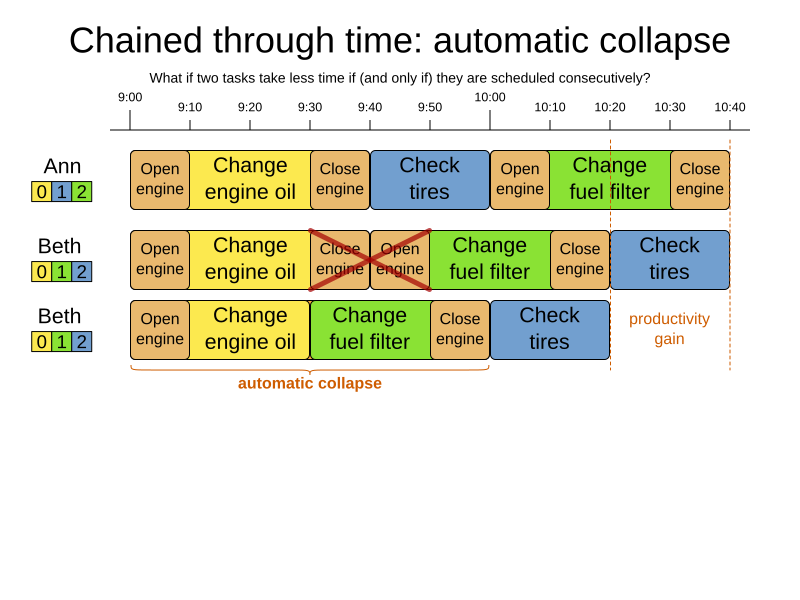

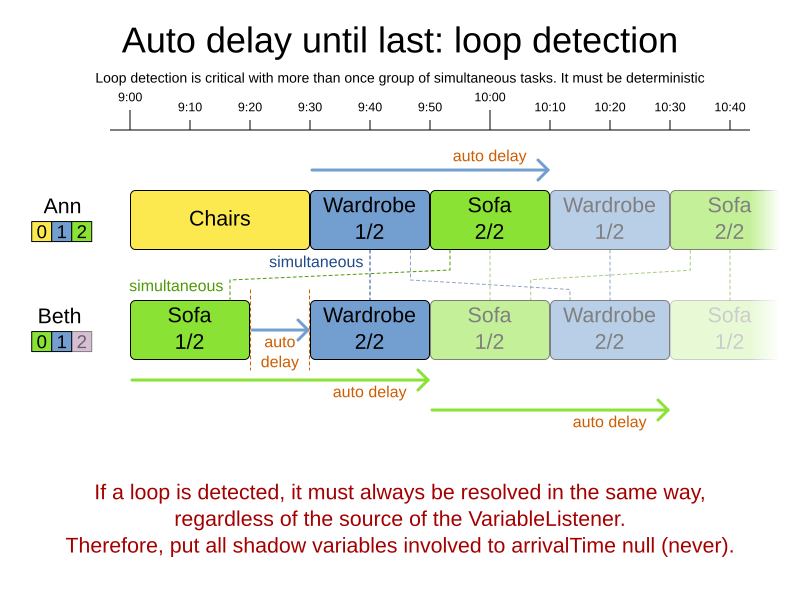

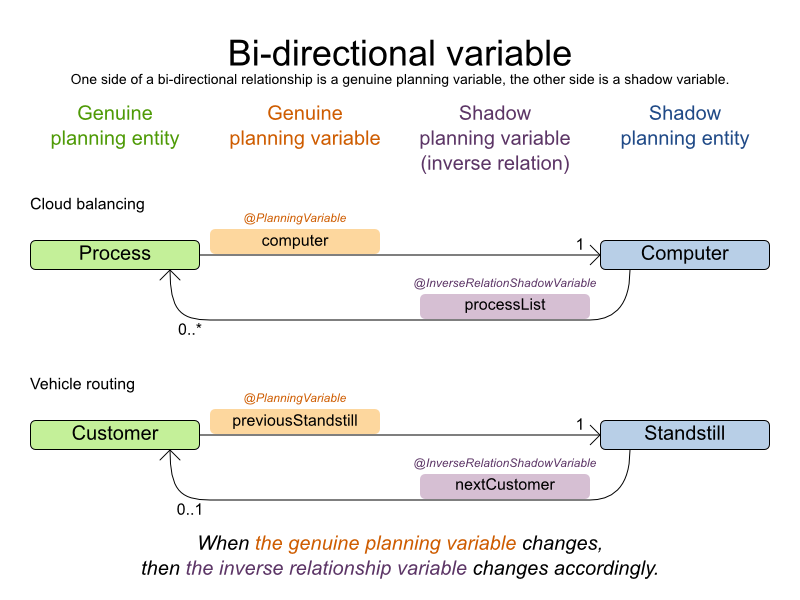

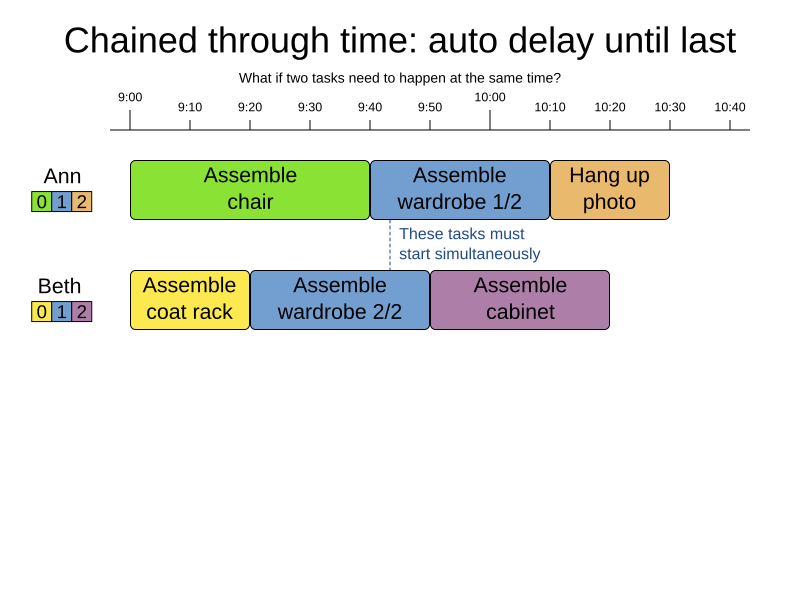

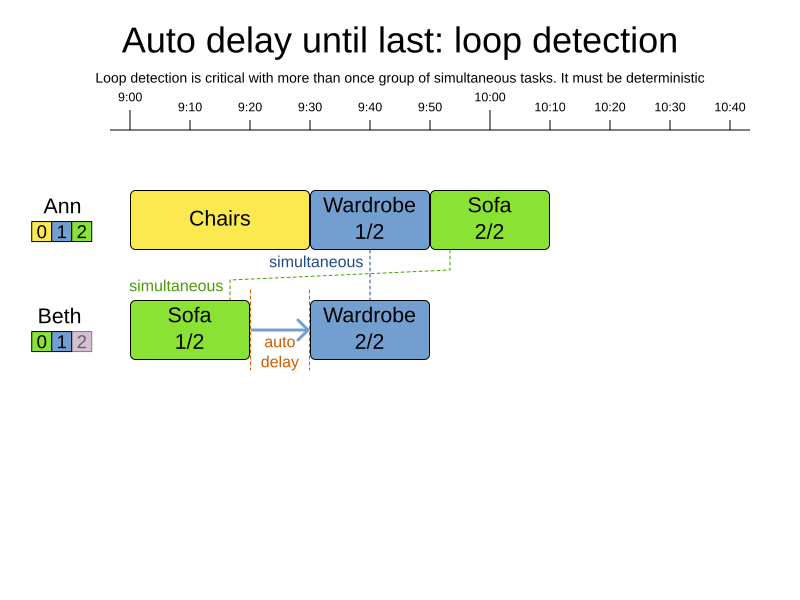

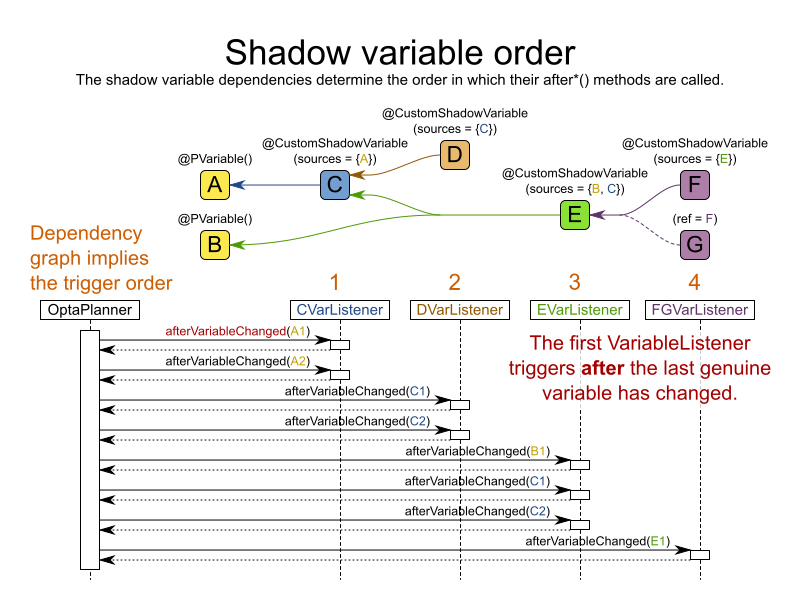

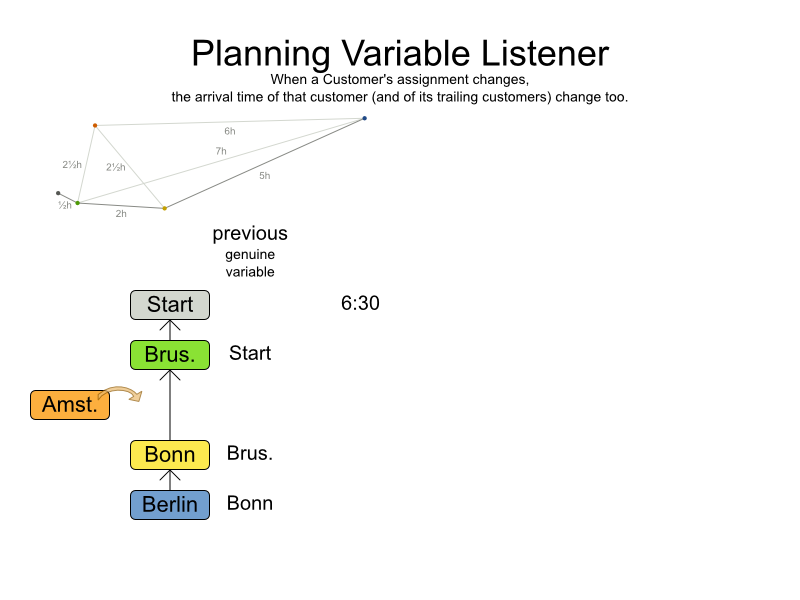

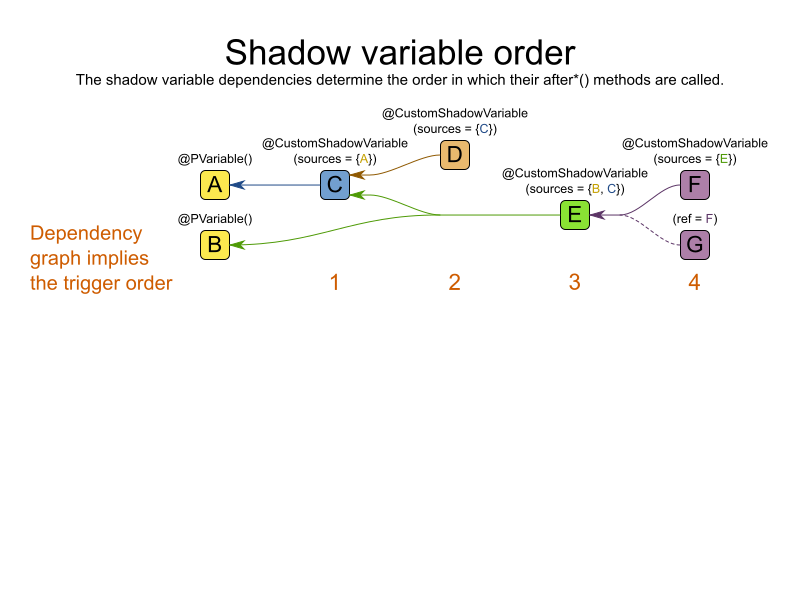

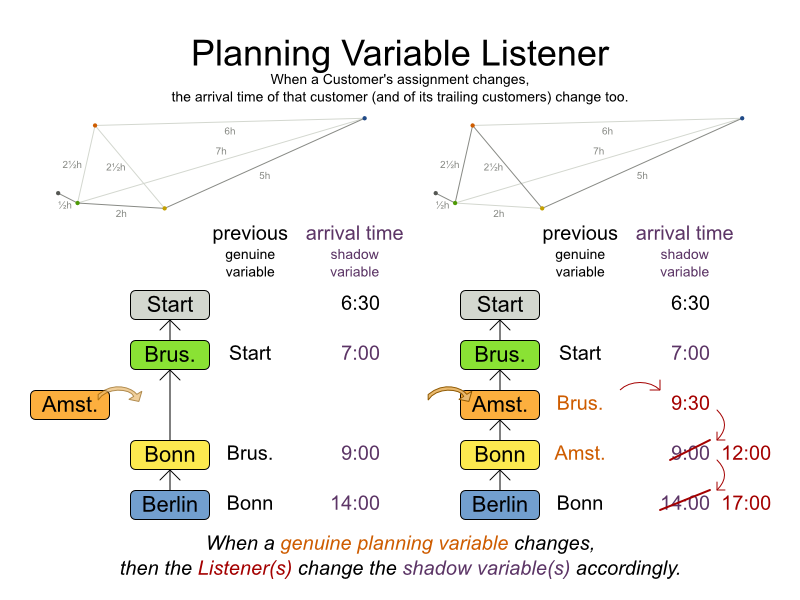

Shadow variables

VRP

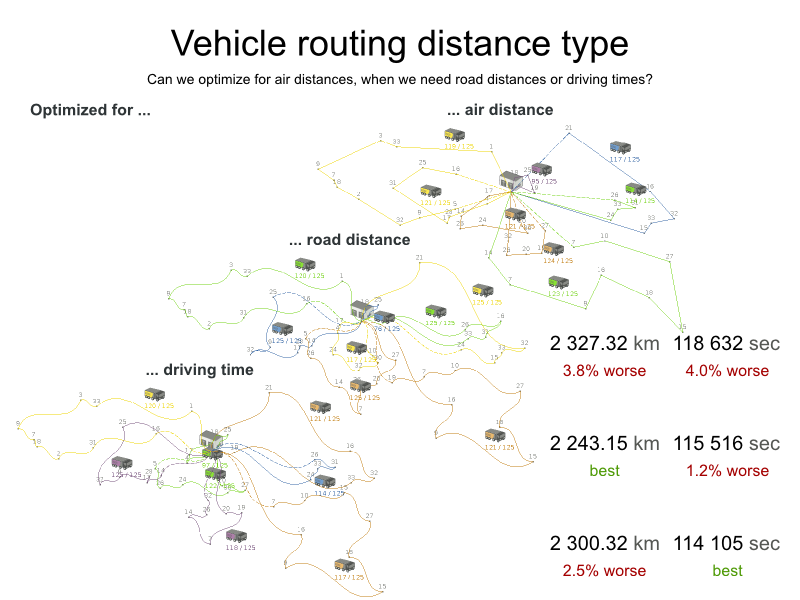

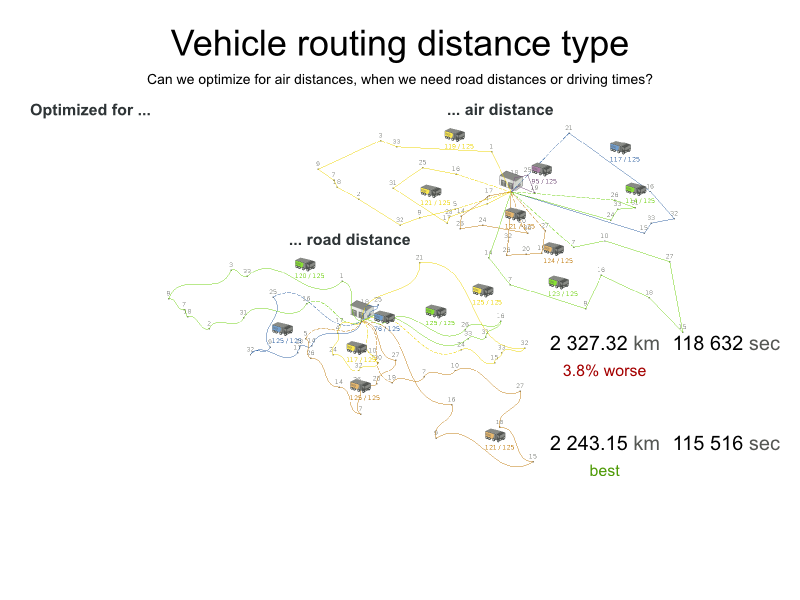

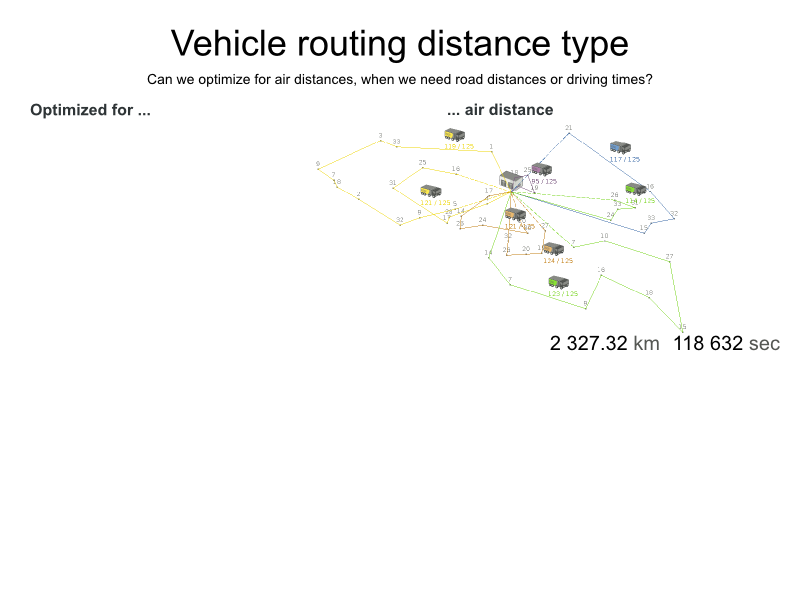

OpenStreetMap and Google Maps

Project Job Scheduling

Planning agility

"Plans are of little importance,
but planning is essential."

"Everybody has a plan
until they get punched
in the mouth…"

What kind of planning disruptions?

• Local disruption
  • Impact limited to one department/region
• Global disruption
  • Impact across the board

Local disruption

Global disruptions

• 2001 - September 11 attacks
  • Air-traffic shut-down in North America for 2 days
• 2010 - Eyjafjallajökull volcano eruption
  • Air-traffic shut-down in Europe for 8 days
• 2020 - COVID-19
  • Flight cancellations

Planning agility paradox

"We can not automate planning
because the plans will change."

1) What is your
publication deadline?

Publication

• Tell employees when/how/where to work
• Publication deadline
  • Technician routing: 1 hour before departure
  • School timetabling: before end of vacation
  • Guards: 4 weeks before shift
  • Nurses: 6 weeks before shift
  • Facility location: 6 months before opening

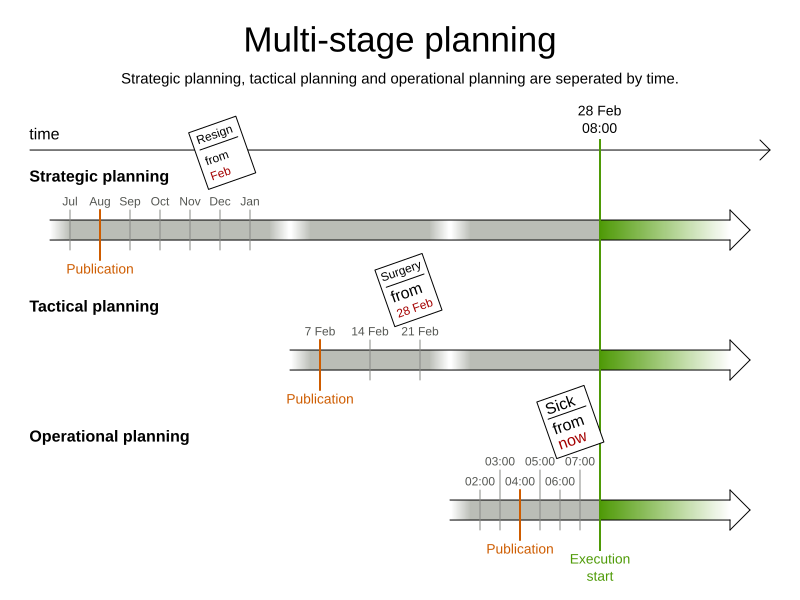

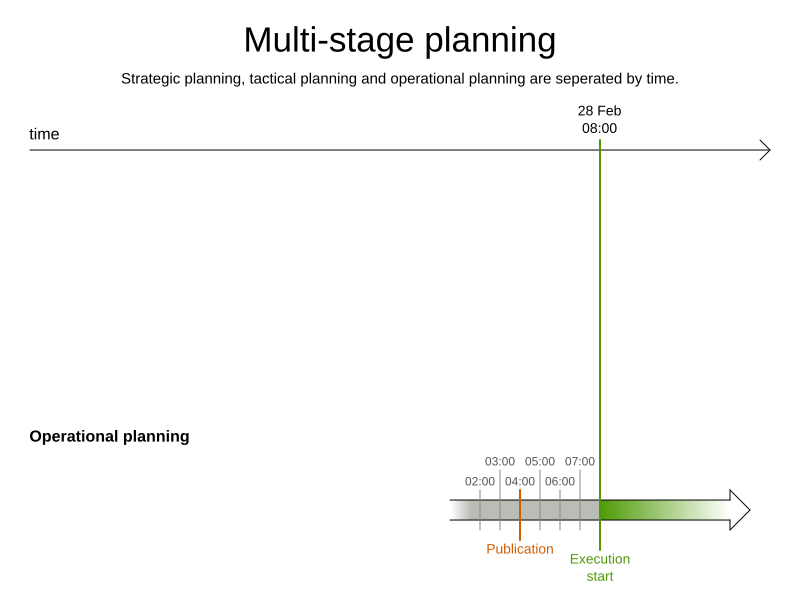

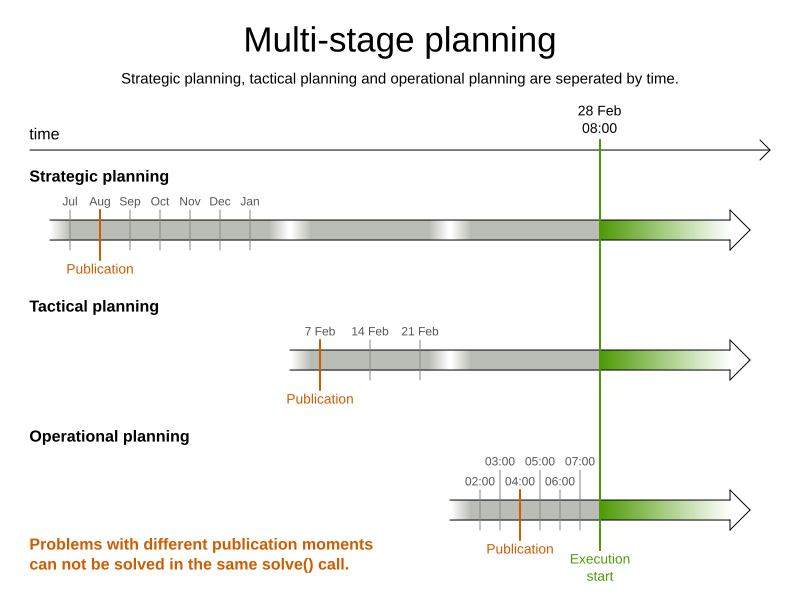

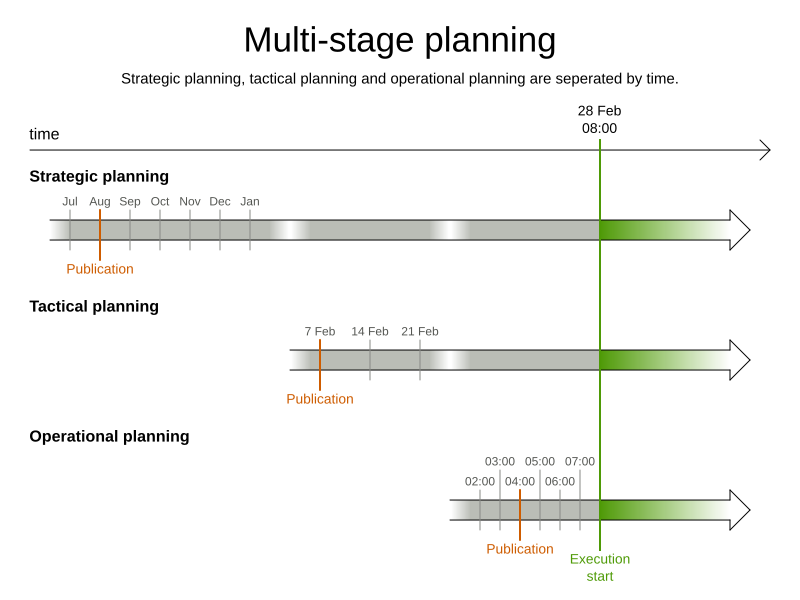

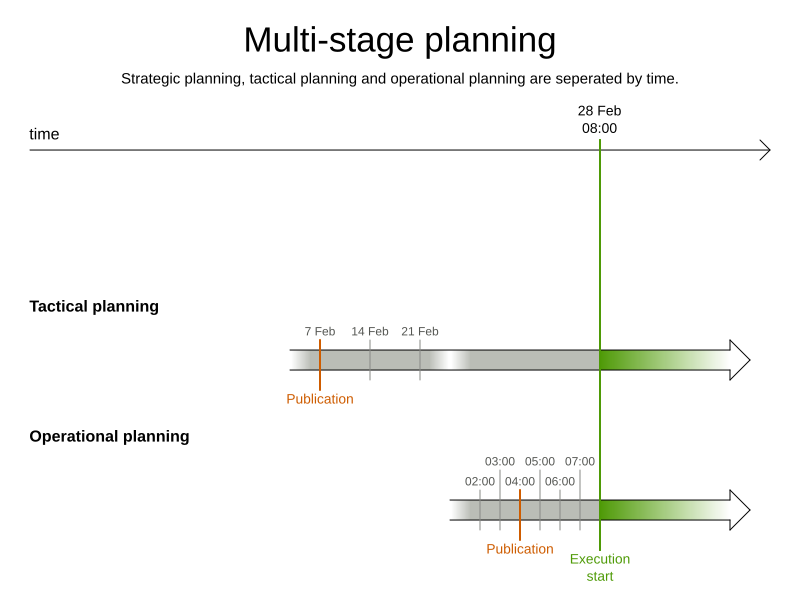

Multi-stage planning

• Strategic: expand the maternity ward?
• Tactical: hire a respiratory specialist?
• Operational: assign a Monday shift to Ann?

Each planning stage feeds into the next.

Conway's law

"Any organization that designs a (software) system
will produce a design whose structure
is a copy of the organization's communication structure."

In practice

@Path("/trainWagon")
public class TrainWagonDeciderResource {

  @Inject
  SolverManager<TrainWagonSolution, ...> wagonSolverManager;

  ... wagonSolverManager.solve(...)
}
@Path("/trainPlatform")
public class TrainPlatformDeciderResource {

  @Inject
  SolverManager<TrainCrewSolution, ...> platformSolverManager;

  // Uses TrainWagonSolution's output as problem facts:
  // Length of train impacts eligble platforms
  ... platformSolverManager.solve(...)
}

2) Do you assign to time?

No, domain lacks time data

No java.time import

Yes, Domain has time
but planning does not assign time

import java.time.LocalDate;

@PlanningEntity
public class Patient {

  private String name;
  private LocalDate arrivalDate;
  private LocalDate departureDate;
  ...
  @PlanningVariable(...)
  private Bed bed;
  ...
}

Hospital bed planning does not change
a patient's arrival or departure date.

By the way...

Don't use java.util.Date for time manipulation.
It's like asking your bartender how to treat cancer.

Don't use java.util.Calender either,
It's like asking your dog how to treat cancer.

Use java.time.LocalDate or java.time.LocalDateTime instead!

Yes, Domain has time
and planning assigns to time

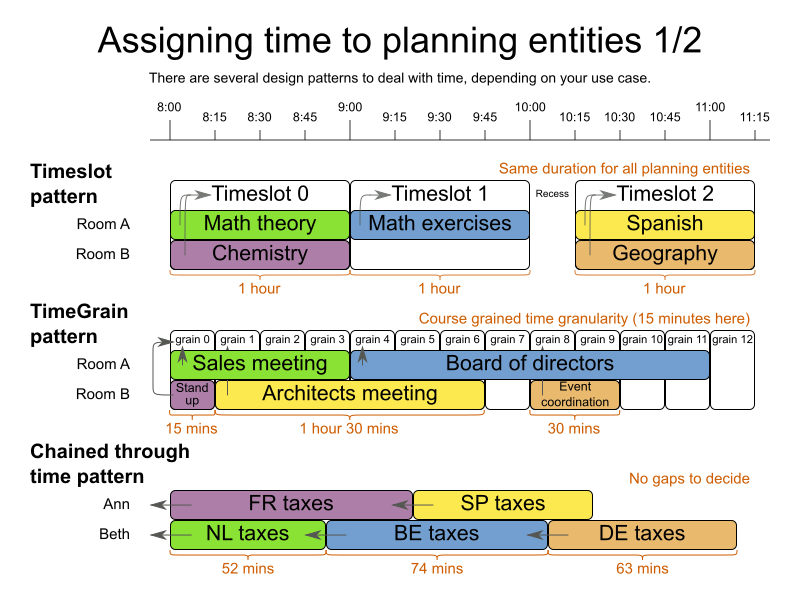

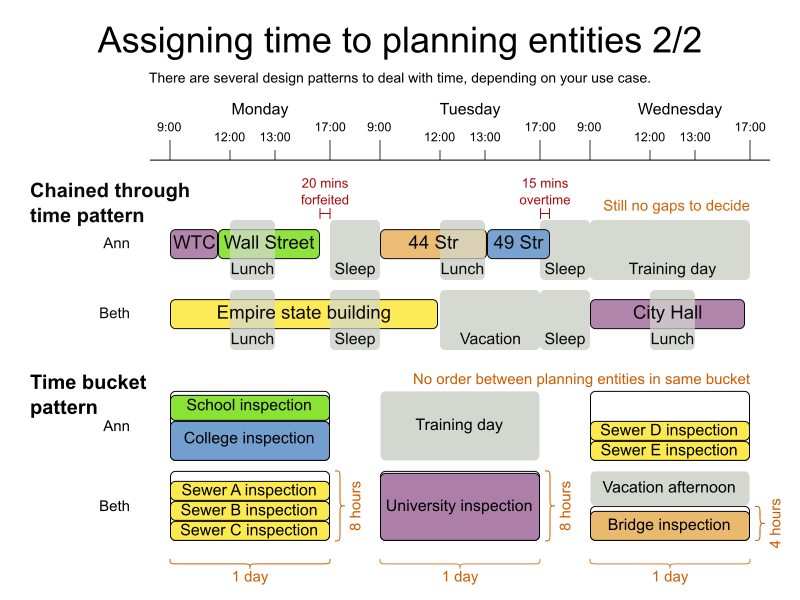

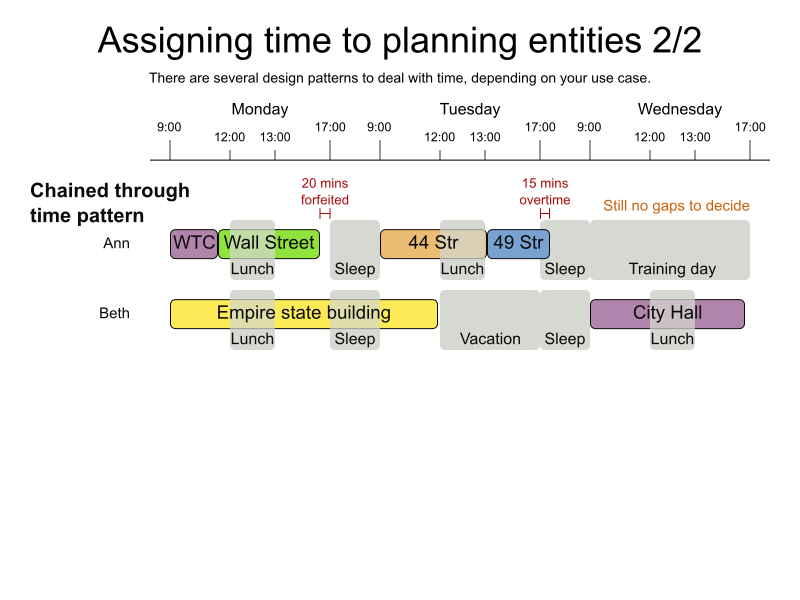

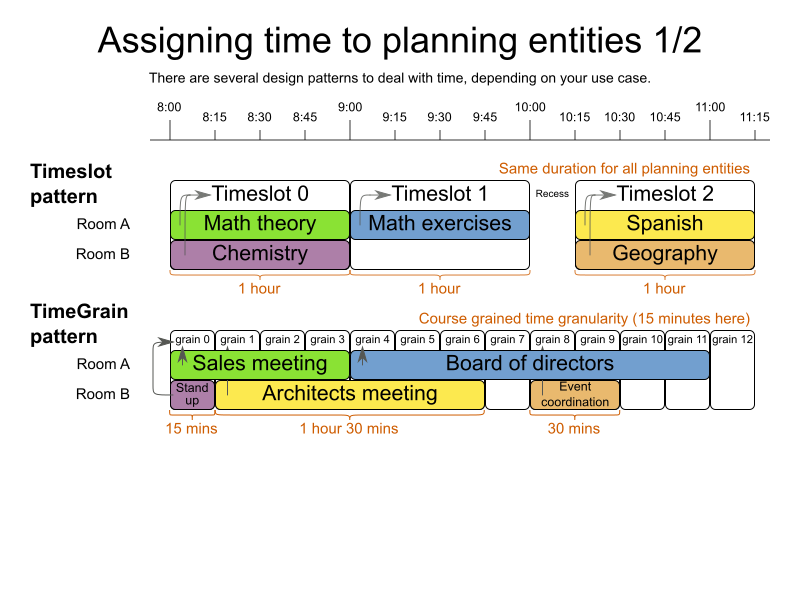

Pick a good domain model.

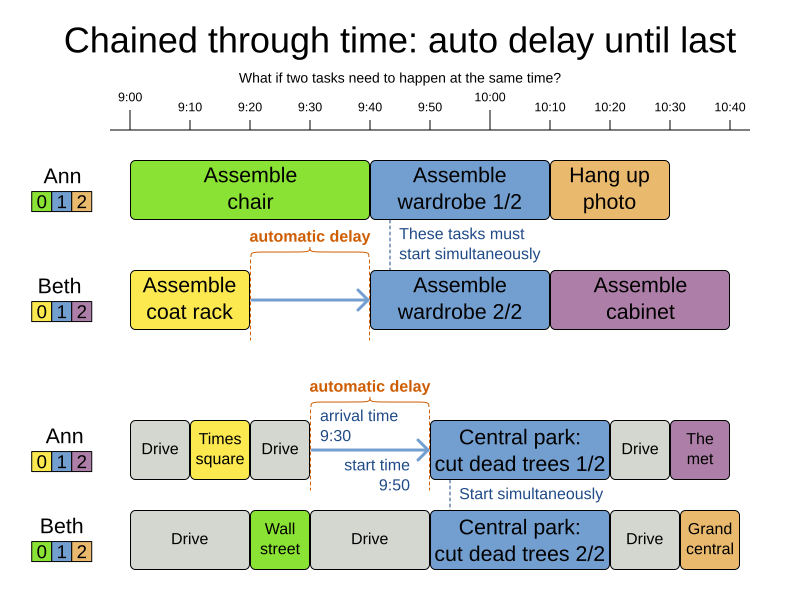

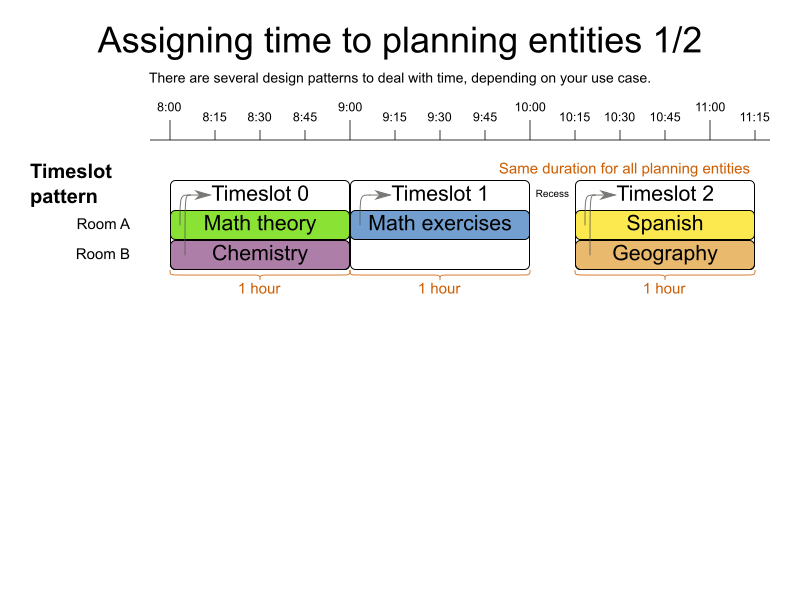

Planning assigns to time

@PlanningEntity
public class Lesson {

  private String subject;
  ...
  @PlanningVariable(...)
  private Timeslot timeslot;
  ...
}

import java.time.DayOfWeek;
import java.time.LocalTime;

public class Timeslot {

  private DayOfWeek dayOfWeek;
  private LocalTime startTime;
  private LocalTime endTime;
  ...
}

3) Do you replan
every week, day or hour?

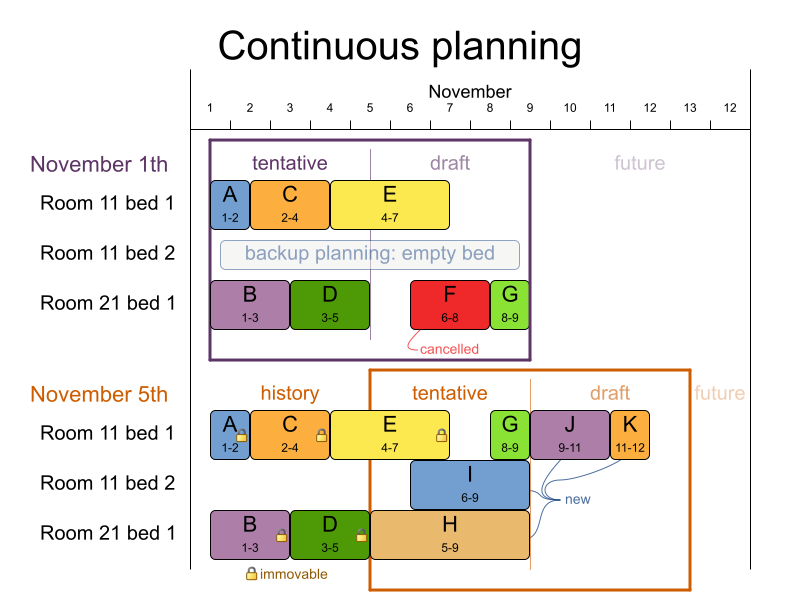

Continuous planning

What is continuous planning?

Don't change history

@Entity
public class Shift {

  private LocalDateTime start;
  private LocalDateTime end;

  @PlanningPin
  private boolean history;
  ...
  @PlanningVariable(...)
  private Employee employee;
  ...
}

Don't change published shifts?

@PlanningEntity
public class Shift {

  private LocalDateTime start;
  private LocalDateTime end;

  @PlanningPin
  // every historic shift is published
  private boolean published;
  ...
  @PlanningVariable(...)
  private Employee employee;
  ...
}

Maybe

How to paint yourself in a corner

Assign all respiratory specialists
to the last shift of your planning window
(even in other wards as normal nurses).

Continuous planning

• Publish notice ranges from long to short
  • Weeks: employee shift rostering, pharmacy on duty scheduling, ...
  • Seconds: runway scheduling, gate scheduling, platform scheduling, ...
• Domain must contain dates or timestamps data
  • So domain probably has import java.time
  • Regardless if planning assigns to time or not.
• Planning windows must overlap
  • ⇒ School timetabling is not continuous planning

4) Will published plan change?

Non-disruptive Replanning

Implementation

@PlanningEntity
public class Talk {

    private Timeslot publishedTimeslot;
    ...

    @PlanningVariable(...)
    private Timeslot timeslot;

}

  Constraint publishedTimeslot(ConstraintFactory f) {
    return f.forEach(Talk.class)
        .filter(talk -> talk.getPublishedTimeslot() != null
            && talk.getTimeslot()
                != talk.getPublishedTimeslot())
        .penalize(HardMediumSoft.ONE_MEDIUM)
                .asConstraint(PUBLISHED_TIMESLOT);
  }

Non-disruptive Replanning

• Medium penalty: disrupt only to become feasible
  • Timeslot in conference scheduling
• Soft penalty: disrupt if gain is higher than a threshold
  • Room in conference scheduling

5) Does your problem
change every few (milli)seconds?

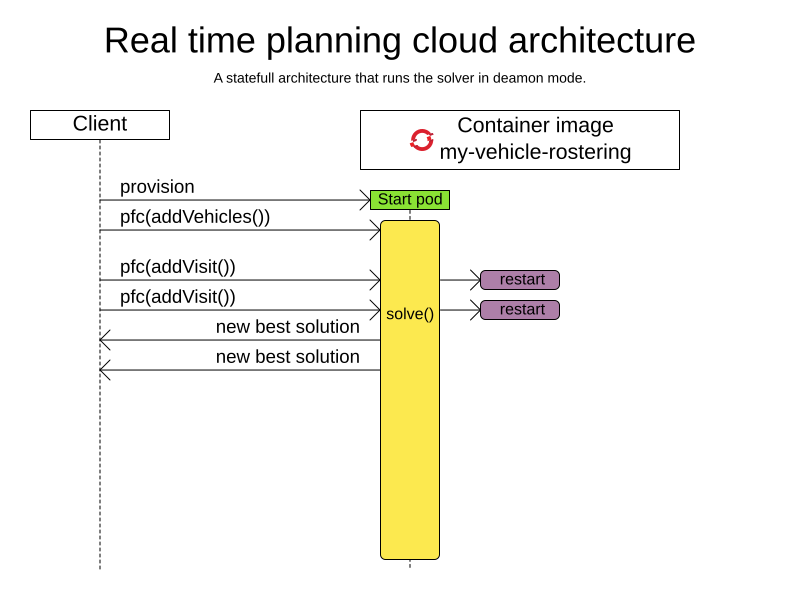

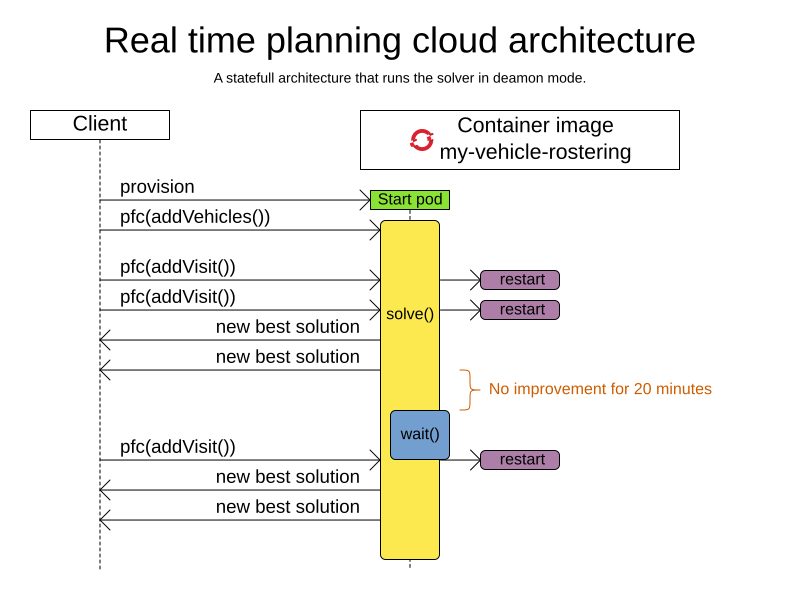

Real-time planning

Real-time planning

DEMO

Real-time planning

• solver.addProblemFactChange(...)
• Daemon mode
  • Don't waste CPU time at night and during breaks

7) Do you have
a resource shortage?

Overconstrained planning

Overconstrained planning

• Nullable
  • @PlanningVariable(nullable = true)
  • medium constraint penalizes unassigned entities
• Virtual resources
  • Add virtual resources to the input problem

    class Employee {
      boolean virtual;
    }

  • Soft constraint penalizes cost of virtual resources

8) Do you fear
a worst case scenario?

Backup planning

• Don't make your plan a house of cards
• Add constraints to penalize such plans

Summary

Know your toolbox

• Multi-stage planning
• Continuous planning
• Non-disruptive replanning
• Real-time planning
• Overconstrained planning
• Backup planning

Combine them as needed.

Agenda: Training session 6

• Repeated planning
• Integration
• Clustering
• Multitenancy
• Competition

Repeated planning

• Backup planning
• Continuous planning
• Real-time planning

Backup planning

Not really repeated planning, but score calculation

• Reserve assignments
• Balancing remaining space
• Train/flight layovers

Continuous planning

Plan until the end of time?

Continuous planning demo

Nurse rostering demo

Immovable entities

• Move Filter that is always applied

Non-disruptive repeated planning

AKA semi-movable entities

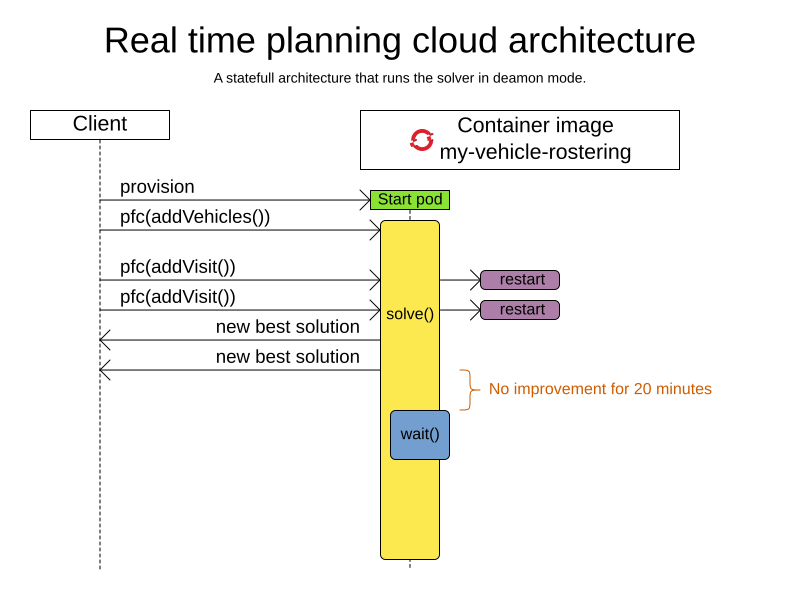

Real-time planning

When you need an answer in milliseconds

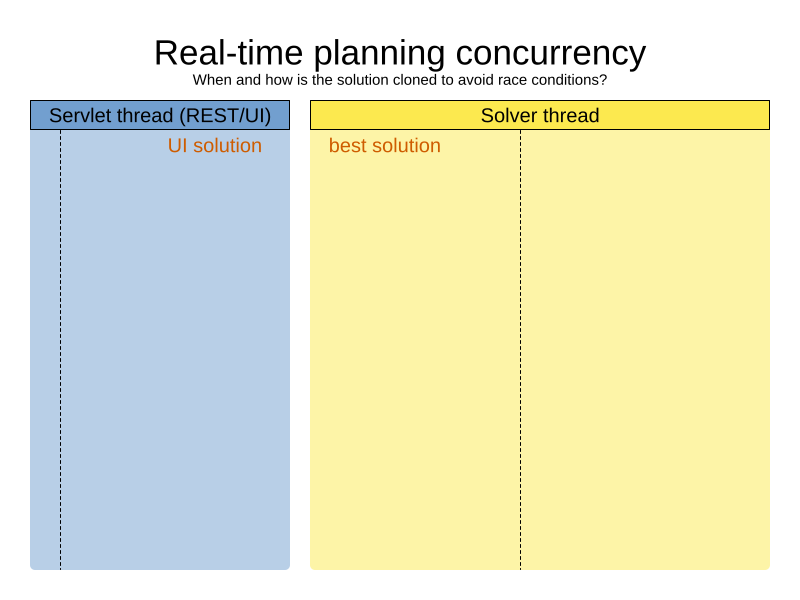

ProblemFactChange

• Callback that is executed on the solver thread

Lab: real-time planning

• Delete a warehouse
• How long to become initialized and feasible again?
• Optional: click to add a store

Daemon mode

• Start with an empty problem
• All problem facts come in through a ProblemFactChange
• Configure no termination
• solve() does not return ...
• ... until terminateEarly() is called

Integration

Reference architecture

• OptaWeb examples
• OptaConf

Camel OptaPlanner

• http://camel.apache.org/optaplanner.html
• Unit tested
• Works on Karaf too

JBoss modules

• Do It Yourself (see docs)

OSGi

• Engine jars support it

Android

• Works (use documented workaround)
• Demo

Humans planners and politics

The easiest ways to fail (or win) a project...

Who will win a quiz?

• Very smart, experienced quizmaster without internet access
• Smart teenager with internet access

OptaPlanner enhances the human planner

Business is king

• The human planner defines the score function
• The human planner is your best friend! You need him/her.
• The human planner validates the score function
• business will change ⇒ the score function will change too
• The human planner redefines the score function in the future.

Who's in control?

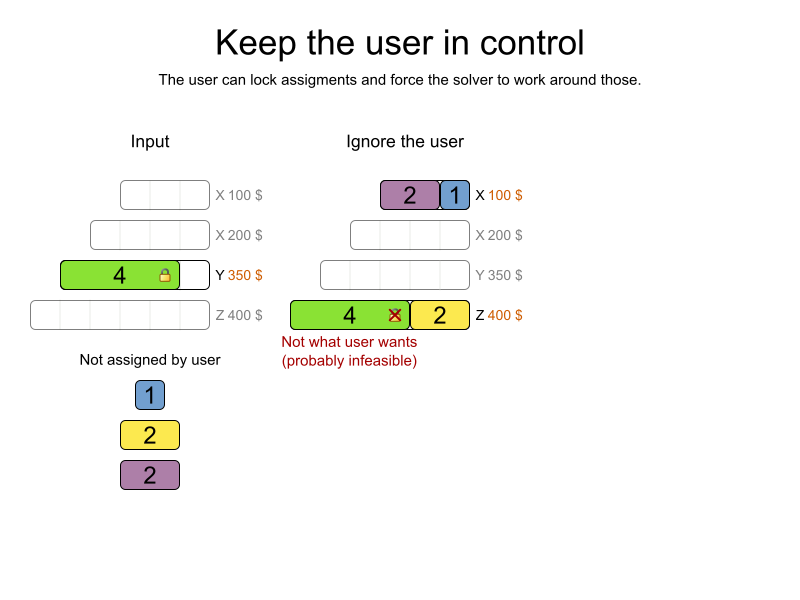

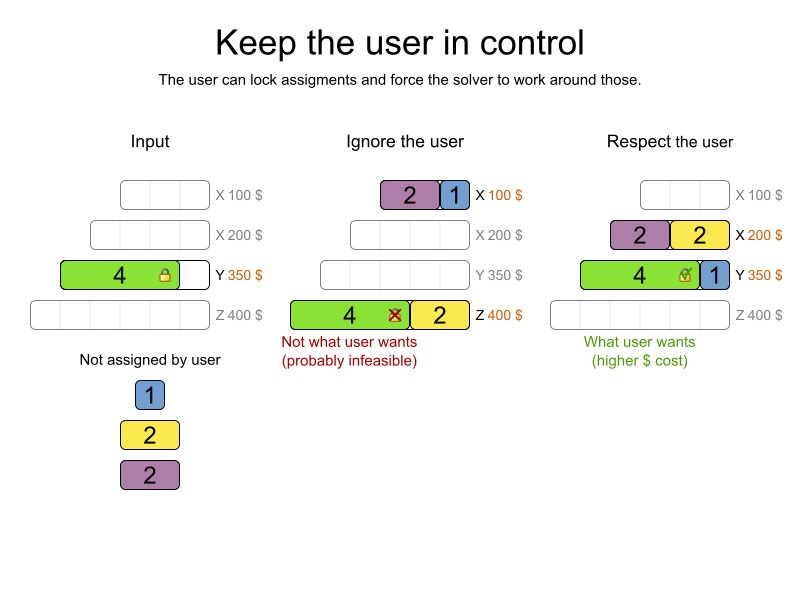

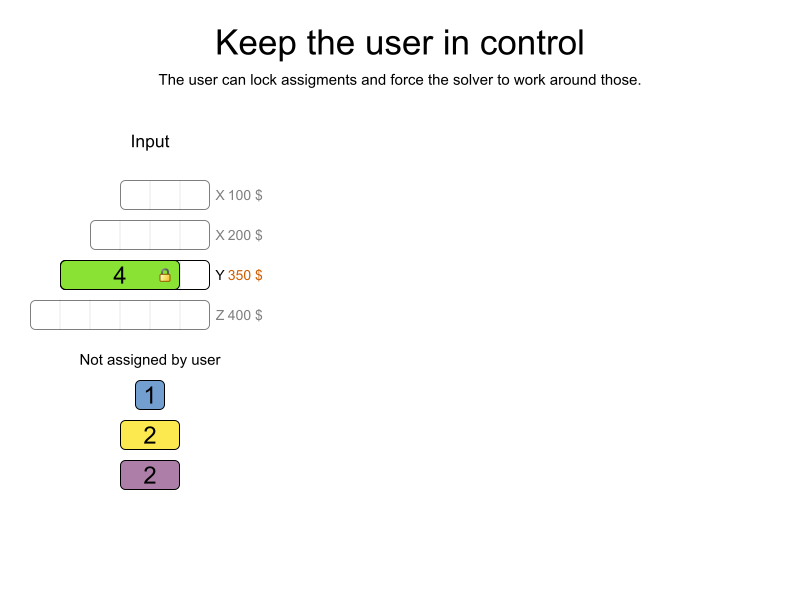

The user is in control

Course scheduling demo

Who's in control?

• The human planner outranks OptaPlanner
• Use immovable entities again

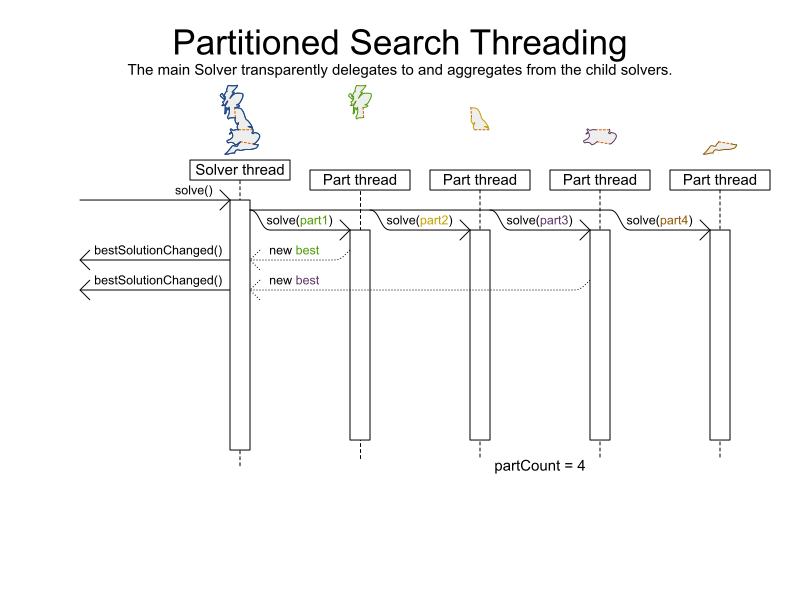

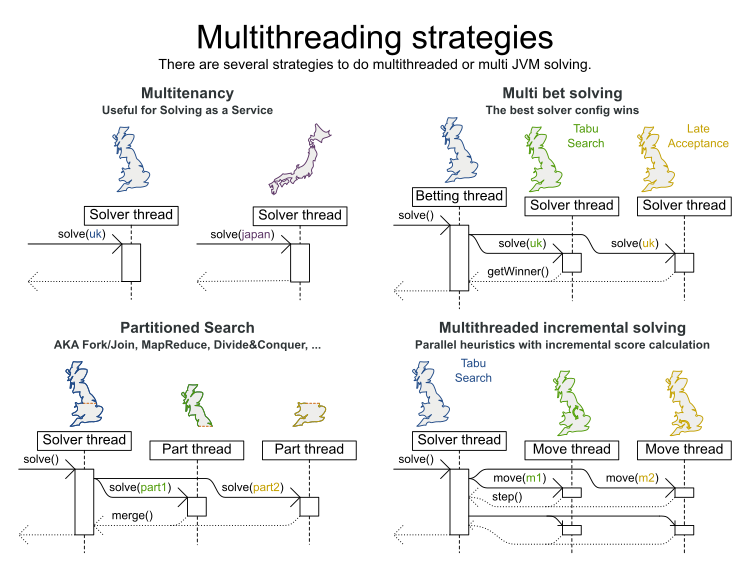

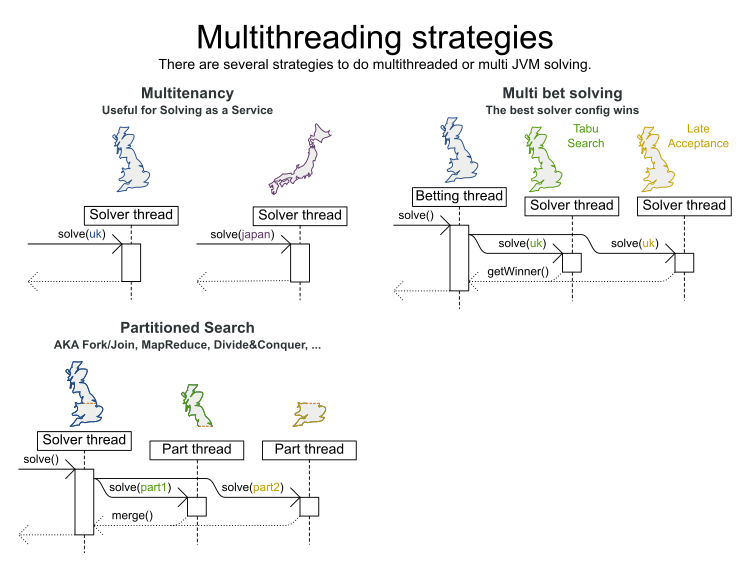

Multiple threads

Multithreaded solving

<solver>
  <moveThreadCount>4</moveThreadCount>
   ...
</solver>

Also supported: AUTO, NONE

Clusters

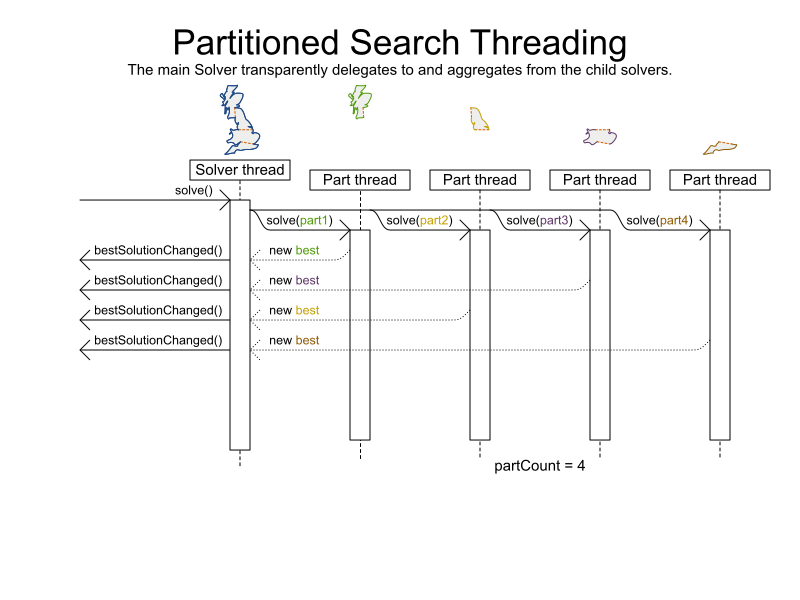

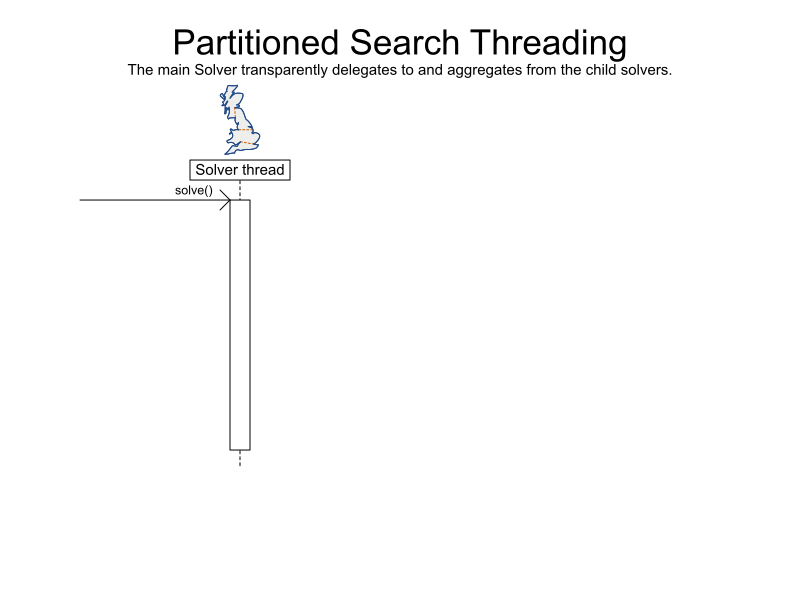

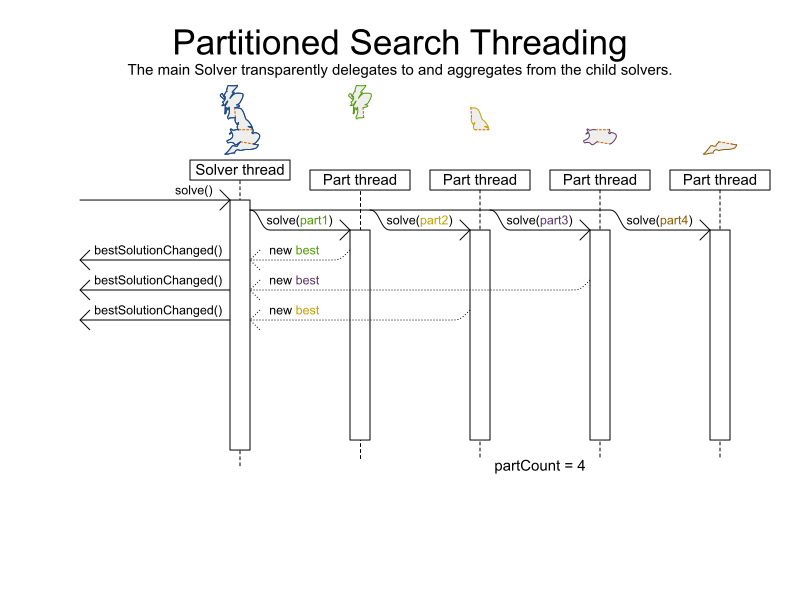

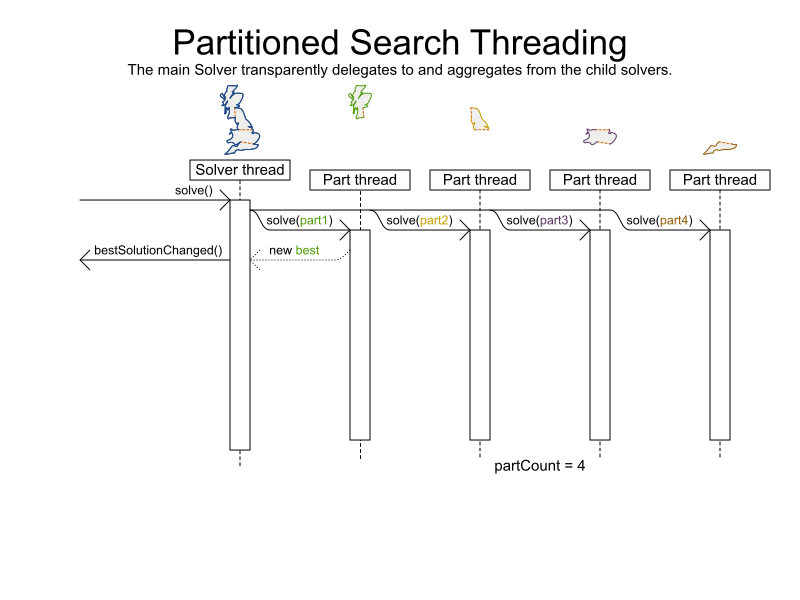

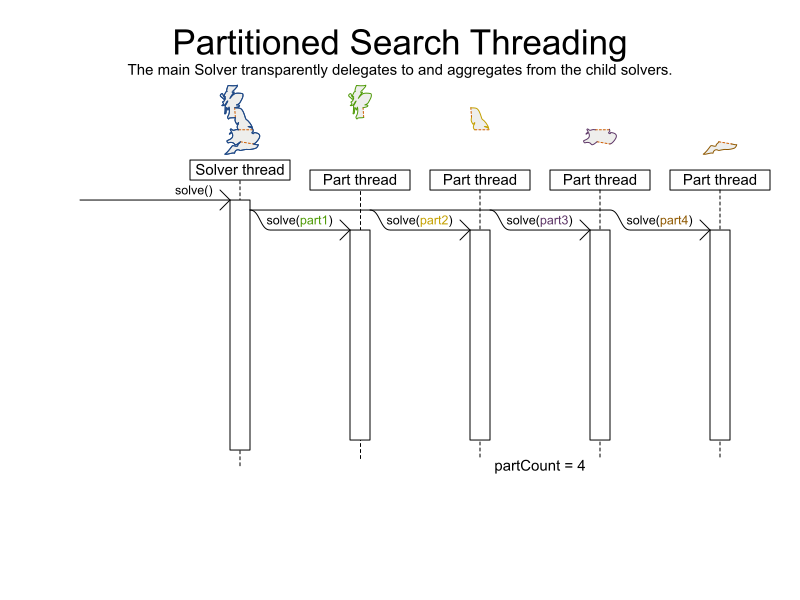

Partitioning

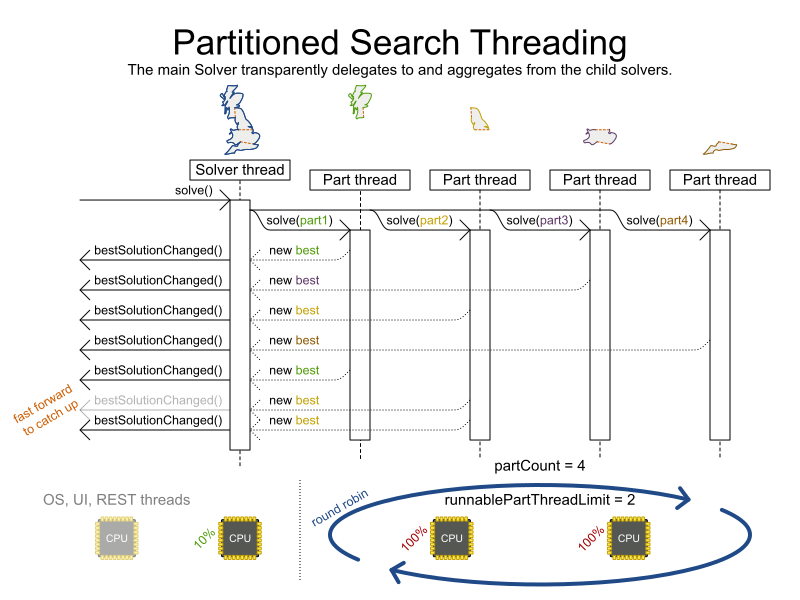

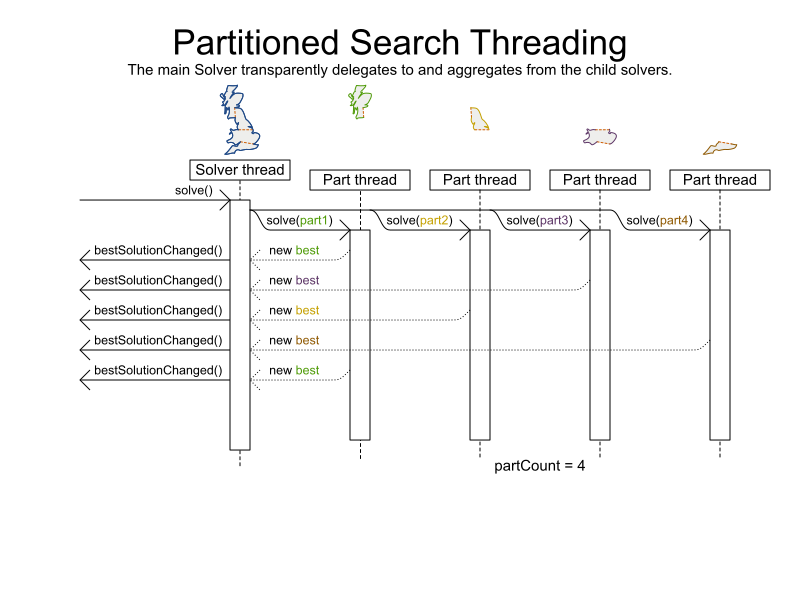

Partitioning

• Sign of weakness
• Might be the only solution

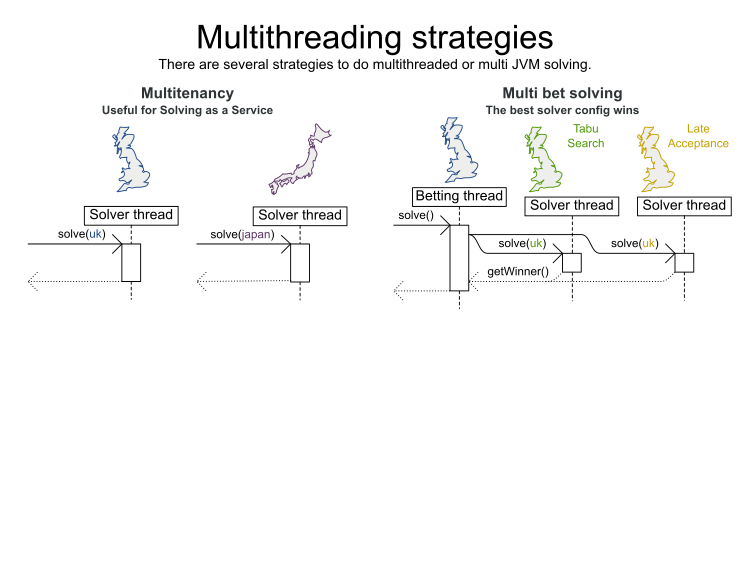

Multitenancy

Competition

See OptaPlanner HUB

Competing solvers

• In-house solvers
• IBM CPLEX
• Gurobi
• LocalSolver
• Quintiq
• AIMMS
• Choco (open source)
• OscaR (open source)
• JSprit (open source)

Not your father's constraint solver

CPLEX

IloNumVar[] expense = cplex.numVarArray(2, lb, ub);
cplex.addLe(cplex.sum(
        cplex.prod(1.06, expense[0]), // Euro
        cplex.prod(1.24, expense[1])), // British Pound
        50.0);

OptaPlanner

rule "50 Dollar limit"
  when
    Expense(1.06 * euroCost + 1.24 * britishPoundCost > 50 )
  then
    scoreHolder.addHardConstraintMatch(kcontext, -1);
end

Agenda: Training session 7

• Full exercise
• Debugging
• Support FAQ

Debugging

Support FAQ

Agenda: Training session 8

• KieContainer and kjars
• Optaplanner Workbench
• OptaPlanner Execution Server

KieContainer and kjars

KieContainer support: classpath container

SolverFactory<CloudSolution> solverFactory
        = SolverFactory.createFromKieContainerXmlResource(
                "opta/optacloud/cloudSolverConfig.solver.xml");

// For every dataset
Solver<CloudSolution> solver = solverFactory.buildSolver();
CloudBalance problem = ... // Load problem
CloudSolution solution = solver.solve(problem);

optacloud-1.0.0.jar is in the classpath

KieContainer support: from Maven repo

KieServices kieServices = KieServices.Factory.get();
SolverFactory<Object> solverFactory
        = SolverFactory.createFromKieContainerXmlResource(
                kieServices.newReleaseId("opta", "optacloud", "1.0.0"),
                "opta/optacloud/cloudSolverConfig.solver.xml");

// For every dataset
Solver<Object> solver = solverFactory.buildSolver();
CloudBalance problem = ... // Load problem
Object solution = solver.solve(problem);

optacloud-1.0.0.jar is not in the classpath
Downloaded from a Maven repository

Kmodule support

kmodule.xml

<kmodule xmlns="https://www.drools.org/xsd/kmodule">
  <kbase packages="opta.optacloud">
    <ksession name="cloudKsession"/>
  </kbase>
</kmodule>

cloudSolverConfig.solver.xml

<solver>
  <scanAnnotatedClasses/>

  <scoreDirectorFactory>
    <ksessionName>cloudKsession</ksessionName>
  </scoreDirectorFactory>
</solver>

Kmodule support (defaulted)

kmodule.xml

<kmodule xmlns="https://www.drools.org/xsd/kmodule"/>

cloudSolverConfig.solver.xml

<solver>
  <scanAnnotatedClasses/>
</solver>
